Mortuary Chambers With Individual Cooling (-5°C to 8°C) SMI-157MBC

Home Mortuary >Mortuary Chambers >Mortuary chamber With Individual Cooling (-5°C to 8°C) SMI-157MBC

Mortuary Chambers With Individual Cooling (-5°C to 8°C) SMI-157MBC

CLICK TO SCAN

Description

The Jindal Mortuary Chamber Storage System is designed for storing cadavers under cool conditions to prevent decomposition. They are quality-constructed, self-contained mortuary refrigerators used in funeral directors offices and hospitals. These are the latest developments in forensic technology, offering vast space-saving advantages over the conventional type and the greater hygiene demanded by current legislation. They are also useful for hospitals, railways, airports, etc.



Cabinet construction

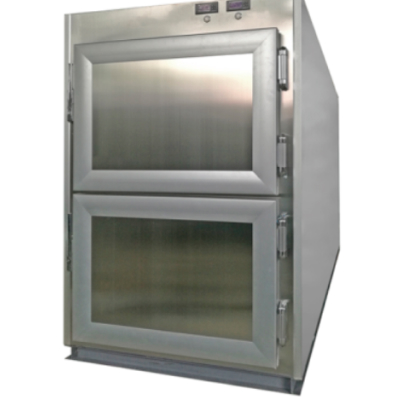

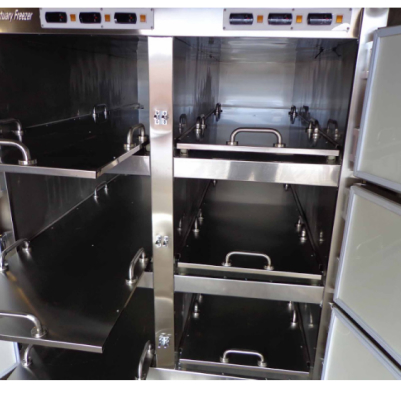

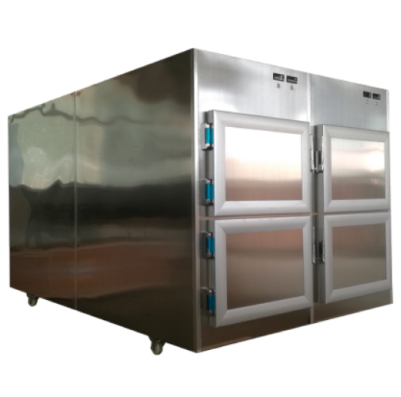

Double-walled construction with inner chamber and outer body made of stainless steel SS 304 grade sheet. High-density polyurethane (PUF) insulation of 3″ thickness is filled between the walls, and the whole structure is mounted on heavy-duty castors for easy movability. Trays to carry bodies with handles at both ends slide on rollers. Front-opening hinged stainless steel insulated doors lined with gaskets, handles, and lock arrangements with keys in duplicate for individual dead bodies. A double door system, including the transparent inner acrylic door, helps with viewing without disturbing the thermal conditions.

Detailed Images

Ergonomically designed monoblock refrigeration

Every chamber has its own separate refrigeration system, which can be switched on individually to store cadavers. This individual energy-saving refrigeration system makes it possible for the user to use even a 2/3/4/6/8/9 body mortuary chamber as a single body mortuary chamber.
Secondly, being a monoblock refrigeration system, even if one unit is at fault, the user can use all other chambers except that unit, which is an added advantage.
The refrigeration unit is kept outside the chamber for easy maintenance. Strong and reliable refrigeration systems with powerful quick-response refrigeration systems help achieve the desired temperature within a short period of time, even at high ambient temperatures. A highly efficient hermetically sealed compressor with an air-cooled condenser and an evaporator inside the chamber is used. A forced air circulation is used to maintain a uniform temperature inside the chamber. A non-CFC eco-friendly, commercially available refrigerant is used.

Fully Automatic Microprocessor Control

A fully automatic dedicated microprocessor helps in monitoring all the functions of the Mortuary Chamber. The advanced microprocessor monitors the chamber temperature in real time to prevent body decomposition and to maintain the set value of temperature. The temperature is selectable between -5°C to 8°C with a resolution of 0.1°C. The front soft touch keypads permit control settings and access to default settings. An inbuilt feature for setting the compressor rest time is also provided. The bright LEDs display the Set and the Read Values of temperature. Both audio and visual alarms alert if there is any deviation of temperature. The complete temperature control panel is mounted on front for easy readability and operation.

Power Requirement: – The instrument is designed to operate on 220V AC Supply (Model with 110V also available).

Sizes Available: –

  • Two bodies
  • Three bodies
  • Four bodies
  • Six bodies
  • Eight bodies
  • Nine bodies

Features

  • The front panel of the machine is integrated with laser engraving, no joints, no welding, no deformation, the overall simple atmosphere
  • Insulation layer: the box body is made of polyurethane foaming machine and made of foaming mold, without deformation, precise control of foaming agent density, and the insulation effect of the box body is excellent
  • Refrigeration system: compressor imported from Germany Secop/Embraco compressor
  • Single door single control, each room is equipped with a separate compressor unit, located at the rear of the machine. Environmental protection and energy saving
  • The compressor and evaporator are installed separately
  • The fully enclosed refrigeration system with low working noise is matched reasonably and the cooling speed is fast. You can also choose single door double set of refrigeration system
  • The evaporator is built-in, using pure copper pipe, no welding, to prevent the phenomenon of leakage
  • Large digital display makes it easy to observe the temperature in the box
  • Independent pallet design, pallet and our related products (lift transfer car, storage rack, etc.) size universal

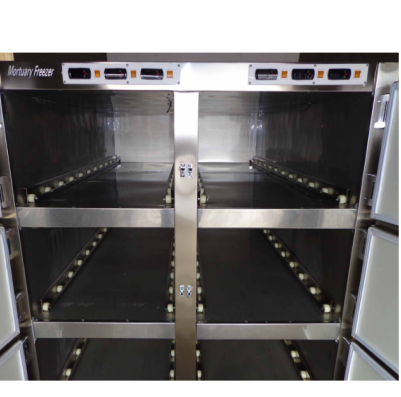

  • Large nylon wheel is adopted for tray pushing and pulling, bearing capacity over 200KGS, mute, convenient tray pushing and pulling
  • The morgue refrigerators door is also designed with polyurethane insulation, and the insulation rubber ring can be replaced
  • Safety door lock design prevents arbitrary opening
  • The funeral home refrigerator facade panel is equipped with name card slots
  • Door surface frost-free treatment technology
  • Alarm system: alarm in 7 scenarios and 2 alarm modes. Sound beep alarm and light flashing alarm; High temperature alarm. Low temperature alarm. Sensor fault alarm, door opening alarm, sound beep alarm, light flashing alarm, to ensure the safety of storage equipment equipped with remote signal system alarm;
  • Keyboard lock, password protection function, prevent arbitrary adjustment of operating parameters, 24 hours temperature tracking printing system (optional);
  • Lighting system: using professional cold storage lamp, cold proof, waterproof, lighting automatically start when opening the door, automatic closing
  • Drainage system: each box is equipped with a drainage system at the tail to prevent foreign matter blocking the design of the outlet pipe, so that the waste water can be discharged smoothly out of the box
  • Specially designed for export, the machine length is 2280MM, which can be loaded into 3 20-foot containers and 7 40-foot containers, saving more transportation costs for foreign customers

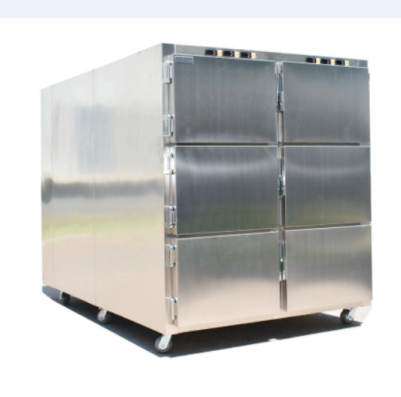

  • The bottom of the machine is equipped with 4-6 universal wheels to facilitate machine movement

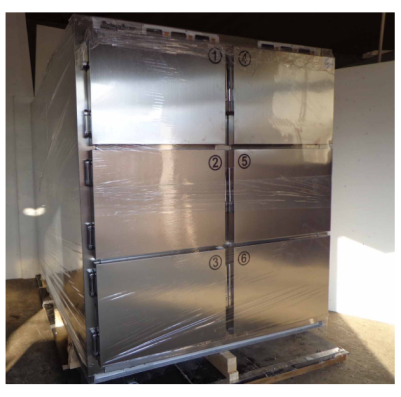

  • The whole machine is transported and the plywood is packaged for export

Technical Data

Model No.

SMI-157MBC2

SMI-157MBC3

SMI-157MBC4

SMI-157MBC6

SMI-157MBC8

SMI-157MBC9

No. of storage cadaver

2

3

4

6

8

9

External Size(D X W X H) mm

2280 X 860 X 1275

2280 X 860 X 1785

2280 X 1640 X 1275

2280 X 1640 X 1785

2280 X 1640 X 2100

2300 X 2360 X 1785

Outer Packing size(W X D X H) mm

2400 X 960 X 1375

2400 X 960 X 2000

2400 X 1750 X 1375

2400 X 1750 X 2000

2400 X 1750 X 2200

2320 X 2430 X 1900

Body Tray Size (mm)

1640 X 580 (Single Body)

Chamber Inner Size(D X W X H) mm

1950 X 630 X 440 (Single Chamber)

Volume (m3)

3.17

4.6

5.78

8.4

9.24

10.8

Container Load(20′/40′)

6/13 sets

6/13 sets

3/7 sets

3/7 sets

3/7 sets

3/7 sets

Material

Stainless Steel 304

Thickness (mm)

Outer:1.0 Body tray :1.0 Inner :0.8

Rate Of Work

436W/1.2A

654W/1.2A

872W/1.2A

1308W/1.2A

1744W/1.2A

1308W/1.2A

Voltage

220V/50Hz(110V/60Hz)

Temperature

Standard :0 to -10℃ (±0.1) Adjustable: 5 to -15

Refrigerant

R404A/ R134A
