Home ≫Mortuary >Mortuary Chambers >Mortuary chamber (2°C to 8°C) SMI-157
CLICK TO SCAN

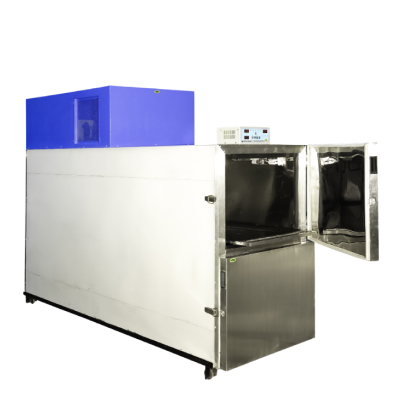

The Jindal Mortuary Chamber Storage System is designed for storing cadavers under cool conditions to prevent decomposition. They are quality-constructed, self-contained mortuary refrigerators used in funeral directors offices and hospitals. These are the latest developments in forensic technology, offering vast space-saving advantages over the conventional type and the greater hygiene demanded by current legislation. They are also useful for hospitals, railways, airports, etc.
Double-walled construction with an inner chamber made of stainless steel and an outer body made of mild steel, duly powder coated. High-density polyurethane (PUF) insulation of the desired thickness is filled between the walls, and the whole structure is mounted on heavy-duty castors for easy movability. Trays to carry bodies with handles at both ends slide on rollers. Front-opening hinged stainless steel insulated doors lined with gaskets, handles, and lock arrangements with keys in duplicate for individual dead bodies A double door system, including the transparent inner acrylic door, helps with viewing without disturbing the thermal conditions.
The refrigeration unit is kept outside the chamber for easy maintenance. Strong and reliable refrigeration systems with powerful quick-response refrigeration systems help achieve the desired temperature within a short period of time, even at high ambient temperatures. A highly efficient hermetically sealed compressor with an air-cooled condenser and an evaporator inside the chamber is used. A forced air circulation is used to maintain a uniform temperature inside the chamber. A non-CFC eco-friendly, commercially available refrigerant is used.
A fully automatic dedicated microprocessor helps in monitoring all the functions of the Mortuary Chamber.
The advanced microprocessor monitors the chamber temperature in real time to prevent body decomposition and maintain the set temperature. The temperature is selectable up to -20°C with a resolution of 0.1°C. The front soft-touch keypads permit control settings and access to default settings. An in-built feature for setting the compressor’s rest time is also provided. The microprocessor also monitors the incoming voltage. If the incoming voltage lies in a particular range, the LED will show OK and the refrigeration unit will function. If the incoming voltage is either low or high, the LED will show low or high, and the refrigeration unit will be switched off for safety reasons. The bright LEDs display the set and read values of temperature. Both audio and visual alarms alert if there is any deviation in temperature or voltage.
An in-built automatic defrost enhances hassle-free operation. The complete temperature control panel is mounted on the front for easy readability and operation.
Power Requirement: The instrument is designed to operate on a 220V AC supply (a model with 110V is also available).
• Single body
• Two bodies
• Three bodies
• Four bodies
• Six bodies
Optional Accessories:–
Prefabricated panels for outer surface and stainless steel inner chamber with insulation in between.
Telescopic tray system with three piece carriage assembly
|
Single Body
|
3 KVA
|
|---|---|
|
Two Bodies
|
4 KVA
|
|
Three Bodies
|
5 KVA
|
|
Four/Six Bodies
|
7.5 KVA
|
Product Brochure Link here
