S.M. Scientific Instruments (P) LTD

Mini Dry Bath Incubator SMI-MINIC-100I

Home≫ Incubators>Mini Series Dry Bath Incubator>Mini Dry Bath Incubator SMI-MINIC-100I

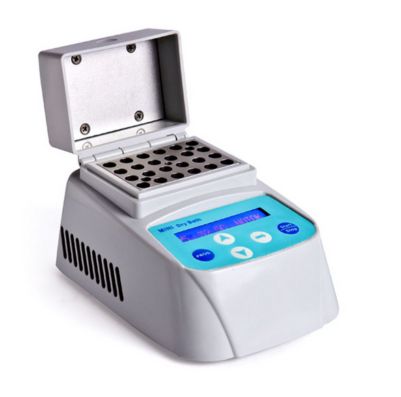

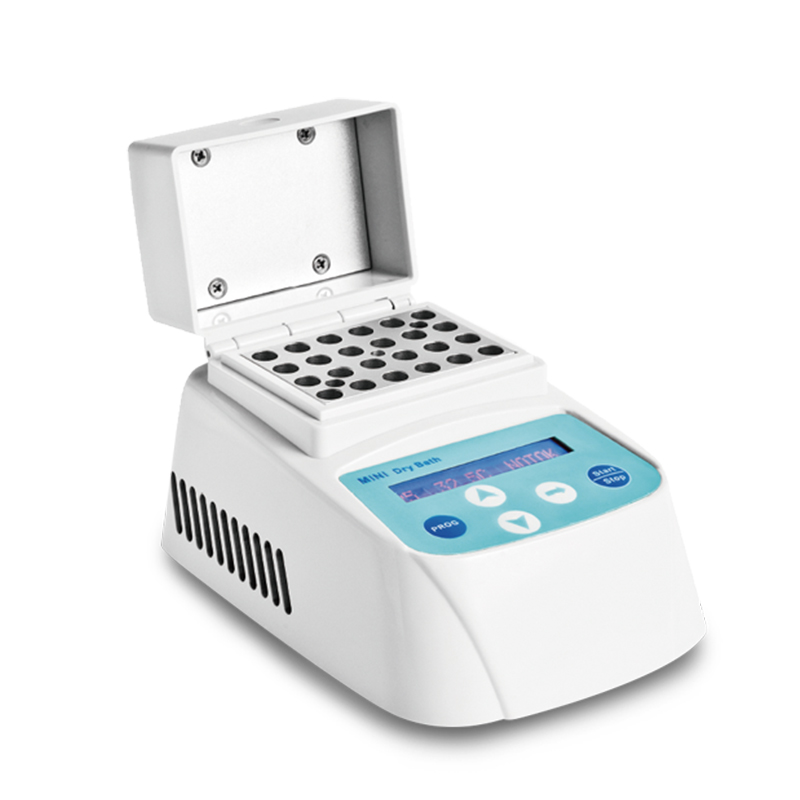

Mini Dry Bath Incubator SMI-MINIC-100I

CLICK TO SCAN

Description

JINDAL Mini Dry Bath Incubator SMI-MINIC-100I is a micro-processor controlled heating block with heater (heating types) or semiconductor refrigeration (cooling types) technology. It is onboard, is smart, light and convenient for movement, suited for any kind of occasion.

Latest Ergonomic Features:

  • Unique design. Smart and light, convenient movement, suit for various occasions
  • 2. LCD simultaneously display setting and actual time and temperature. Temperature calibration function
  • Automatic fault detection function with buzzer alarm
  • 24V DC input power, built-in over-temperature protection device
  • Various blocks for optional choice. Convenient for replacement
  • Easy cleaning and disinfection
Previous
Next
Enquire Now

Technical Data:

  • Temp. Control Range : -10℃ ~100℃
  • Temp. Max. Decrease : R.T. decreases 25˚C
  • Temp. Setting Range : -10℃ ~100℃
  • Temp. Stability@100℃ : ≤±0.5℃
  • Temp. Stability@40℃ : ≤±0.3℃
  • Block Temp. Uniformity : ≤±0.3℃
  • Temp. Display Accuracy : 0.1℃
  • Heating Speed : ≤15min (20˚C to 100˚C)
  • Cooling Speed : ≤30min (R.T. decrease 20˚C) @R.T. 26˚C
  • Heating Cover : with Time Range : 1 sec ~999 sec or 1 min~1003 min
  • Voltage : DC24V adapter
  • Power : 120W
  • Dimension (W*D*H) : 110 x 156 x 108mm
  • Net Weight : 1.4kg
  •



Optional Accessories:

Cat#
Spec
Dia. Of hole
Hole bottom shape
Block dimension
MINI-A
0.2 ml x 40
6.1 mm
Cone bottom
71x47x32mm
MINI-B
0.5 ml x 24
8 mm
Cone bottom
71x47x32mm
MINI-C
1.5 ml x 15
10.8 mm
Cone bottom
71x47x32mm
MINI-D
2.0 ml x 15
10.8 mm
Round bottom
71x47x32mm
MINI-E
Cuvette x 8
8 ~12.5 mm (maximum edge length 15mm)
No Bottom
71x47x32mm
MINI-F
15 ml x 4
16.9 mm
Flat Bottom
71x47x82mm
MINI-G
50 ml x 2
29.2 mm
Flat bottom
71x47x82mm
Cat# PIC
MINI-A
MINI-B
MINI-C
MINI-D
MINI-E
MINI-F
MINI-G
Note: MINI-F / MINI-G is a non-standard module, the insulation cover cannot be closed
