Mini Dry Bath Incubator SMI-MINIC-100

Home≫ Incubators>Mini Series Dry Bath Incubator>Mini Dry Bath Incubator SMI-MINIC-100

Mini Dry Bath Incubator SMI-MINIC-100

CLICK TO SCAN

Description

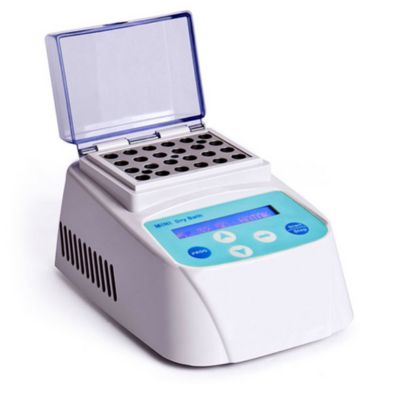

JINDAL The Mini Dry Bath Incubator SMI-MINIC-100 is a micro-processor controlled heating block with heater (heating types) or semiconductor refrigeration (cooling types) technology. It adapts onboard use, smart, light and convenient for movement, suitable for any kind of occasion. The type 100F is with a fan for heat dissipation, which makes temperature down much faster than natural cooling.

Latest Ergonomic Features:

  • Unique design. Smart and light, convenient movement, suit for various occasions
  • LCD simultaneously display setting and actual time and temperature. Temperature calibration function
  • Automatic fault detection function with buzzer alarm
  • 24V DC input power, built-in over-temperature protection device
  • Various blocks for optional choice. Convenient for replacement
  • Easy cleaning and disinfection
Previous
Next
Enquire Now

Technical Data:

  • Temp. Control Range :   -10℃ ~100℃
  • Temp. Max. Decrease : R.T. decreases 25˚C
  • Temp. Setting Range : -10℃ ~100℃
  • Temp. Stability@100℃ : ≤±0.5℃
  • Temp. Stability@40℃ : ≤±0.3℃
  • Block Temp. Uniformity : ≤±0.3℃
  • Temp. Display Accuracy : 0.1℃
  • Heating Speed : ≤15min (20℃ to 100℃)
  • Cooling Speed : ≤30min (R.T. decrease 20˚C) @R.T. 26˚C
  • Heating Cover : no
  • Time Range : 1sec ~999 sec or 1 min ~1002 min
  • Voltage : DC24V adapter
  • Power : 120W
  • Dimension (W*D*H) : 110 x 156 x 103mm
  • Net Weight : 1.4kg

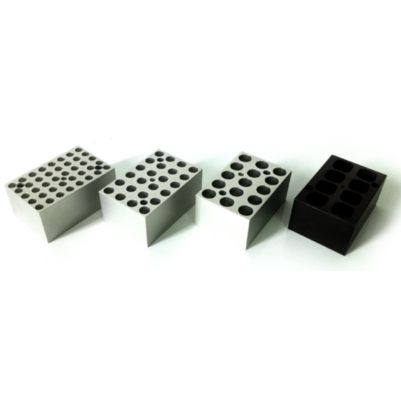

Optional Accessories:

Cat#
Spec
Dia. Of hole
Hole bottom shape
Block dimension

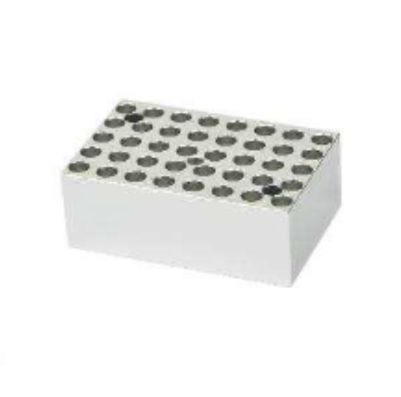

MINI-A
0.2 ml x 40
6.1 mm
Cone bottom
71x47x32mm

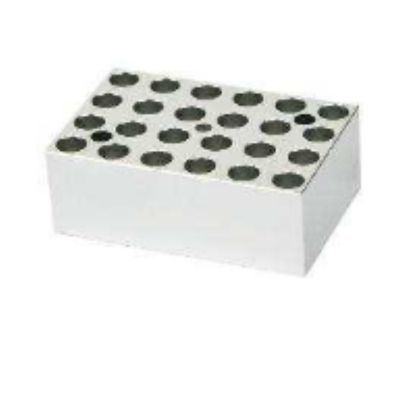

MINI-B
0.5 ml x 24
8 mm
Cone bottom
71x47x32mm

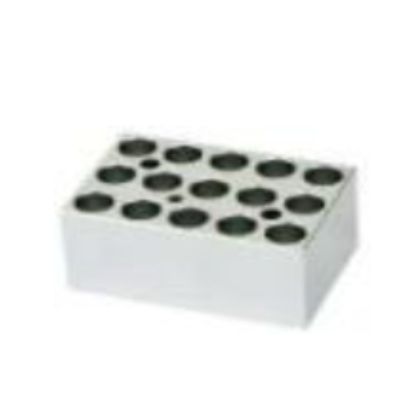

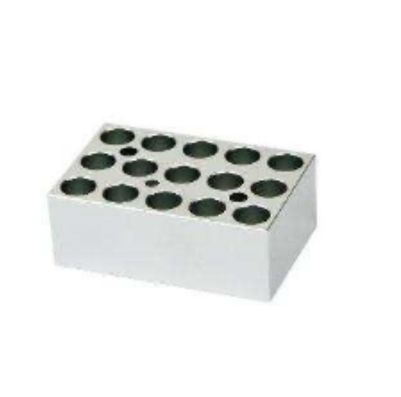

MINI-C
1.5 ml x 15
10.8 mm
Cone bottom
71x47x32mm

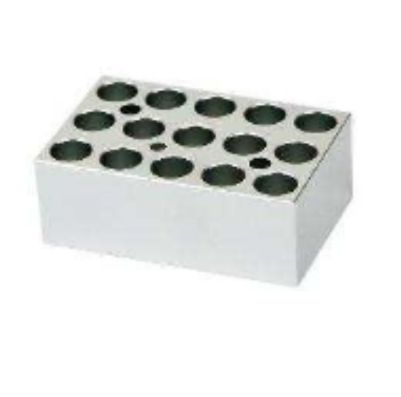

MINI-D
2.0 ml x 15
10.8 mm
Round bottom
71x47x32mm

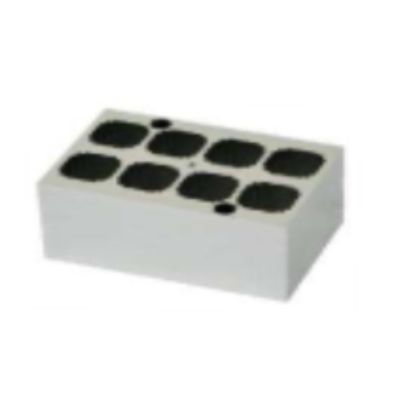

MINI-E
Cuvette x 8
8 ~12.5 mm (maximum edge length 15mm)
No Bottom
71x47x32mm
MINI-F
15 ml x 4
16.9 mm
Flat Bottom
71x47x82mm

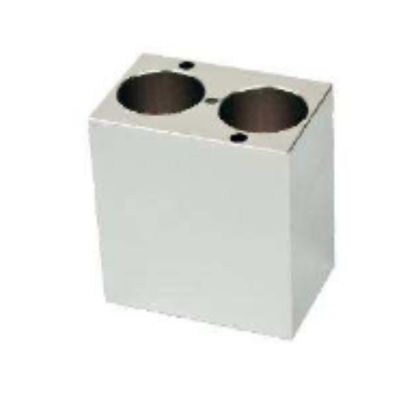

MINI-G
50 ml x 2
29.2 mm
Flat bottom
71x47x82mm
Cat# PIC
MINI-A
MINI-B
MINI-C
MINI-D
MINI-E
MINI-F
MINI-G
Note: MINI-F / MINI-G is a non-standard module, the insulation cover cannot be closed
