Mini Dry Bath Incubator SMI-MINIB-100I

HomeIncubators>Mini Series Dry Bath Incubator>Mini Dry Bath Incubator SMI-MINIB-100I

Mini Dry Bath Incubator SMI-MINIB-100I

CLICK TO SCAN

Description

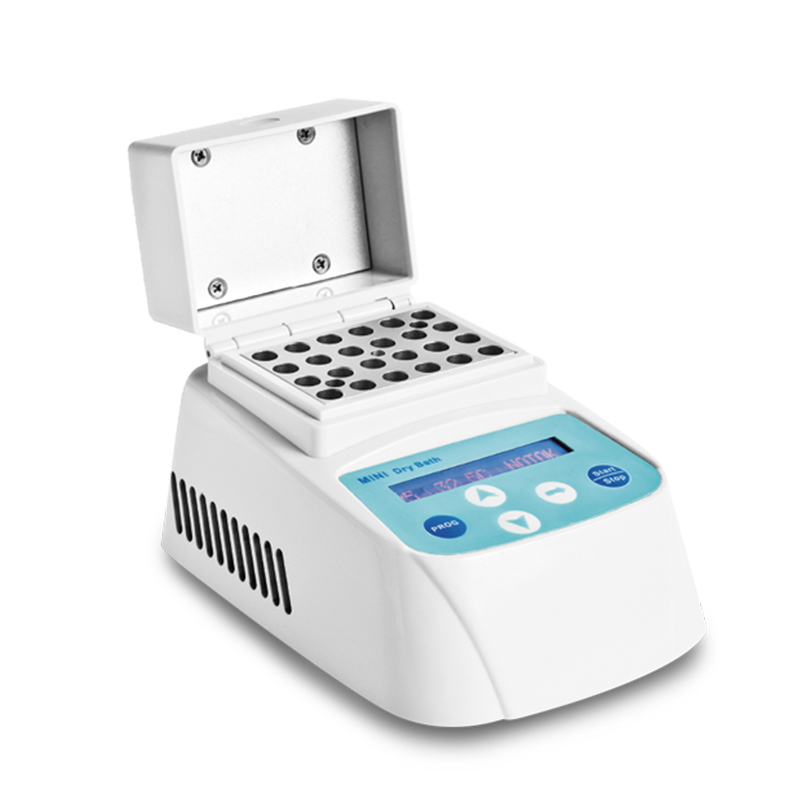

JINDAL The Mini Dry Bath Incubator SMI-MINIB-100I is a micro-processor controlled heating block with heater (heating types) or semiconductor refrigeration (cooling types) technology. It is adapted for onboard use, is smart, light and convenient for movement, suitable for any kind of occasion.  The type 100I is with PCR thermo cover technology to prevent evaporation. The type 100F is with a fan for heat dissipation, which makes it much faster than natural cooling.

Latest Ergonomic Features:

  • Unique design. Smart and light, convenient movement, suit for various occasions
  • LCD simultaneously display setting and actual time and temperature. Temperature calibration function
  • Automatic fault detection function with buzzer alarm
  • 24V DC input power, built-in over-temperature protection device
  • Various blocks for optional choice. Convenient for replacement
  • Easy cleaning and disinfection

Technical Data:

  • Temp. Control Range :   R.T.+5 ~100
  • Temp. Setting Range : 0 ~100
  • Temp. Stability@100 : ≤±0.5
  • Temp. Stability@40 : ≤±0.3
  • Block Temp. Uniformity : ≤±0.3
  • Temp. Display Accuracy : 0.1
  • Heating Speed : ≤15min (20 to 100)
  • Cooling Speed : natural cooling
  • Heating Cover : with
  • Time Range : 1sec ~999 sec or 1 min ~1001 min
  • Voltage : DC24V adapter
  • Power : 60W
  • Dimension (W*D*H) : 110 x 156 x 97mm
  • Net Weight : 1kg

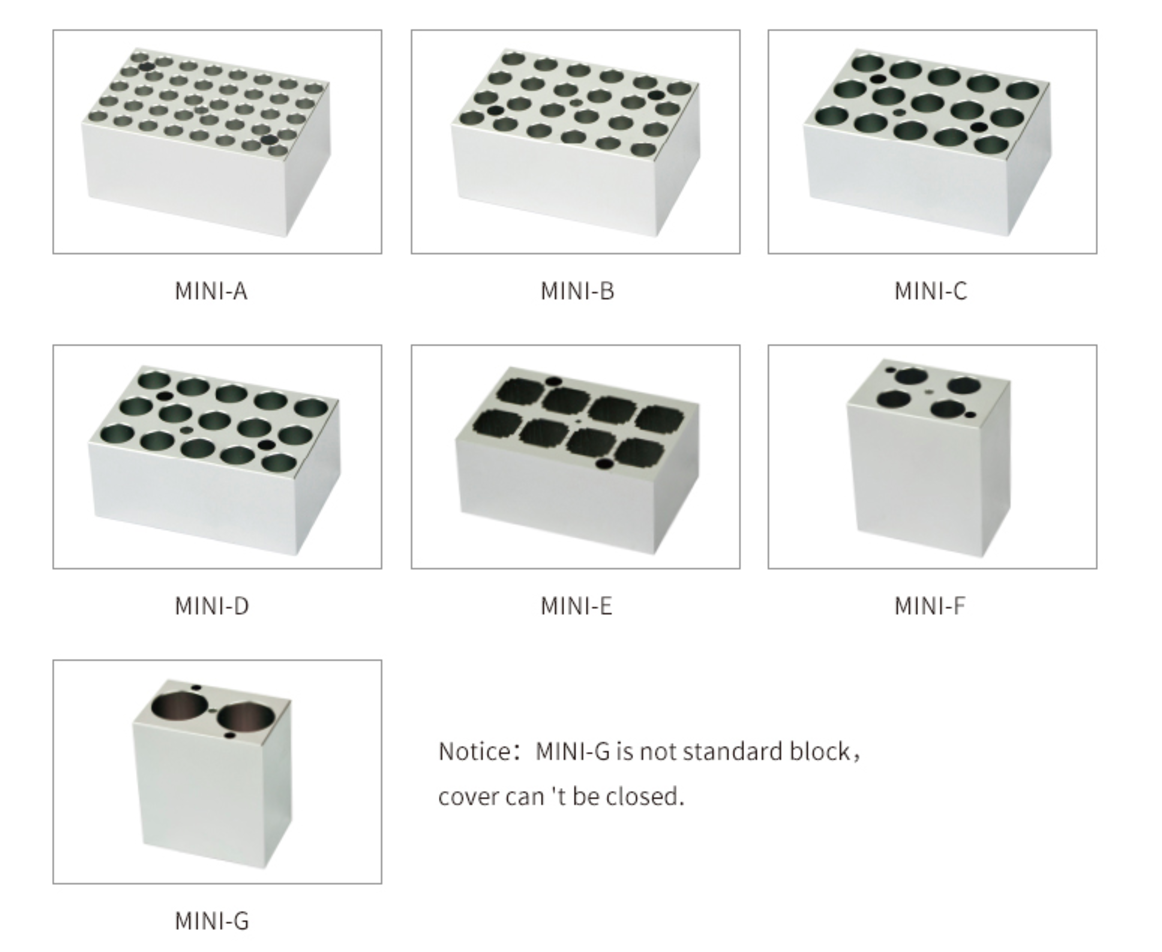

Optional Accessories:

Cat#
Spec
Dia. Of hole
Hole bottom shape
Block dimension
MINI-A
0.2 ml x 40
6.1 mm
Cone bottom
71x47x32mm
MINI-B
0.5 ml x 24
8 mm
Cone bottom
71x47x32mm
MINI-C
1.5 ml x 15
10.8 mm
Cone bottom
71x47x32mm
MINI-D
2.0 ml x 15
10.8 mm
Round bottom
71x47x32mm
MINI-E
Cuvette x 8
8 ~12.5 mm (maximum edge length 15mm)
No Bottom
71x47x32mm
MINI-F
15 ml x 4
16.9 mm
Flat Bottom
71x47x82mm
MINI-G
50 ml x 2
29.2 mm
Flat bottom
71x47x82mm
Cat# PIC
MINI-A
MINI-B
MINI-C
MINI-D
MINI-E
MINI-F
MINI-G
Note: MINI-F / MINI-G is a non-standard module, the insulation cover cannot be closed
