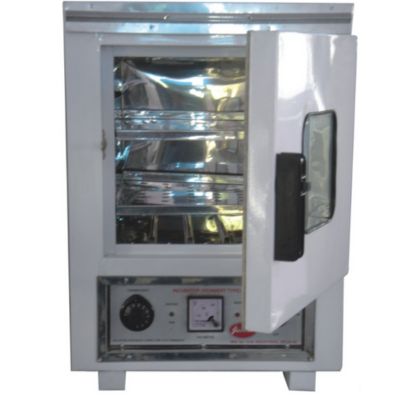

Incubator Bacteriological SMI-125



Jindal incubators are the perfect choice for reliable day to day operation in a variety of uses. Drying of slides, paraffin embedding, and tissue culture work, incubation of antibody test, excellent for Microbiological determinations, crystallization studies and incubation of hydroxy steroids.

Construction: –

 Jindal incubators are sturdy, with double walled construction with a complete inner chamber made of Anodized Aluminium or Highly Polished Stainless Steel. The outer chamber is made of Mild Steel Sheet, duly powder coated. A 75 mm gap between the walls is filled with special grade glass wool for proper insulation and to avoid heat losses. Inner chamber fabricated with ribs for adjusting shelves to a convenient height. Supplied with 2 or 3 removable shelves. SHELVES are made of fully Anodized Aluminium Sheet or Polished Stainless Steel Sheet as per chamber. The door is insulated & fitted with heavy hinges. The door has double glass windows which facilitates inspection of samples without disturbing the thermal conditions. Heating elements, made of high grade imported nichrome wire are put inside the porcelain beads and placed at the bottom and side ribs for uniform temperature all over the space.

Temperature Control: –

Temperature is controlled by a capillary type thermostat from ambient to 80°C. The temperature control knob is graduated to centigrade degrees after actually observing the temperature in a steady state. An L-shaped prismatic glass Thermometer is fitted on top of the Incubator for reading the chamber temperature.

Ventilation: –

Air ventilators are provided on both sides at top to flue away any gas or fumes.

Control Panel: –

The equipment is provided with a panel having a thermostat control knob, ON/OFF switch and two pilot lamps.

Power Requirement: –

Supplied with cord and plug & designed to operate on 220 V single phase, 50 Hz, AC supply. (Model with 110V supply is also available).

Size of inner chamber:–
W     ×   H   ×   D            No. of Shelves
300 × 300 × 300 mm   (12”X12”X12”) 2
350 × 350 × 350 mm   (14”X14”X14”) 2
450 × 450 × 450 mm   (18”X18”X18”) 2
450 × 600 × 450 mm   (18”X24”X18”) 3
600 × 600 × 600 mm  (24”X24”X24”) 3
600 × 900 × 450 mm   ( 24”X36”X18”) 3
600 × 900 × 600 mm   (24”X36”X24”) 3

Optional Accessories:–

• Air Circulating Fan
• Digital Indicator – cum – Controller Electronic in lieu of L-shaped thermometer & thermostat
• Microprocessor based PID Temp. Controller-cum-indicator in lieu of thermostat & L-shaped thermometer
