Tissue Embedding Station (3 Module) SMI-3020TM3

Home Histopathology >Tissue Embedding Centre >Tissue Embedding Station (3 Module) SMI-3020TM3

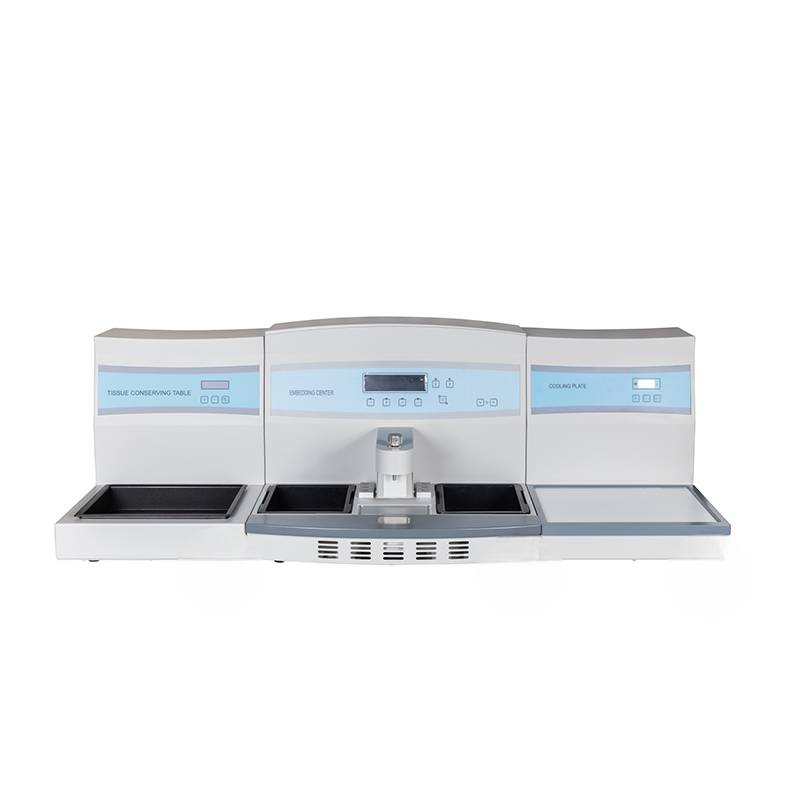

Tissue Embedding Station (3 Module) SMI-3020TM3



The Jindal Tissue Embedding Station (3 Module) is manufactured as per the latest forward thinking design to meet the needs for a high end laboratory.

Detailed Images


  • Fully programmable computer control allows automatic system start and stop anytime (weekly)
  • Temperature is precisely measured by temperature-sensing integrated blocks made in USA, and is LCD-displayed with icons demonstrating current working status
  • Five heated areas, including Paraffin Chamber, Paraffin Dispenser, left and right Thermal Storage Compartments, and heating plate (working area), are individually controlled and work independently without interference from each other
  • Five temperature-control channels and multiple overheating protection mechanisms provide safe, reliable, and energy-saving protection
  • Automatic memory and restoration functions: After start up, all preset temperature data are automatically stored in the system
  • The temperature of the Cryo plate equipped with this system is controlled independently and can be used to freeze tissue more conveniently, particularly for small specimens
  • Flexible module configuration options through a design which separates the Cryo Module from Embedding Module, enabling easy maintenance
  • Paraffin Chamber with super large capacity enables embedding a large number of specimens at same time
  • Safe and reliable low-voltage illuminating system with two ON/OFF control options
  • Heated working plate and forceps wells make tissue embedding more convenient
  • High-precision clock makes time setting more convenient and accurate
  • This unit set the control power socket, 3 part can work at same time

Technical Data

Paraffin Chamber Capacity

4 liters

Temperature Range of Forceps Wells

RT – 85℃

Temperature Range of Paraffin Chamber

RT – 85℃

Temperature Range of Thermal Storage Compartment

RT – 85℃

Temperature Range of Working Plate (hot plate)

RT – 85℃

Temperature Range of Paraffin Dispenser

RT – 85℃

Temperature Control Precision


Working Voltage

AC 220V±10% 50Hz (standard model) AC110V±10% 60Hz



Temperature Setting Of Cryo Module

The Optimal Working Temperature Is Approximately -15℃. The Temperature Is Under Delay Protection.

Dimensions Of Cryo Module

340 X 322mm



Temperature Range of Thermal Storage Plate

4.5 Liters

Thermal Storage Compartment Capacity

4.5 Liters
