S.M. Scientific Instruments (P) LTD

Compact Cassette Printer SMI-321CCP

Home ≫Histopathology >Cassette & Slide Printers >Compact Cassette Printer SMI-321CCP

Compact Cassette Printer SMI-321CCP

CLICK TO SCAN

Description

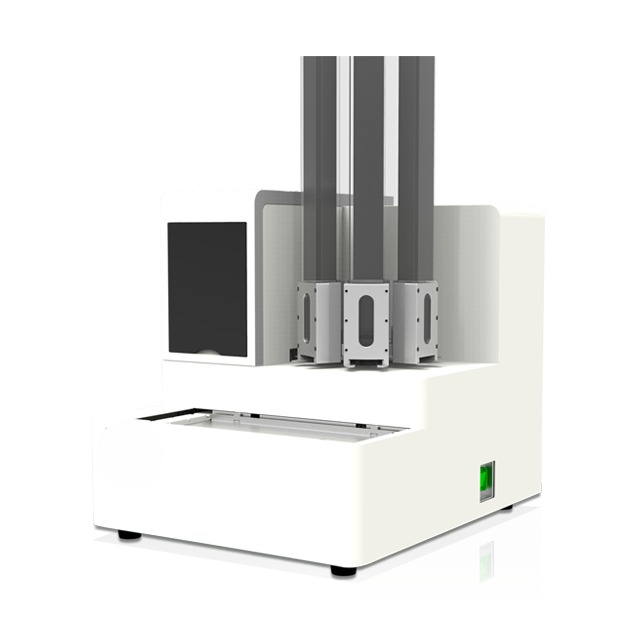

Jindal compact cassette printers are designed to meet the needs of the histology laboratory. The printer is ergonomic and its interface is user friendly for customer’s ease of operation.



Enquire Now

Features

  • Using UV laser printing technology, no consumables such as ribbons or ink cartridges are needed, effectively saving costs
  • The printing speed is 3 to 5 seconds/piece, there is no limit on the number of printing fields, and it can print various Chinese and western characters, symbols, graphics and QR codes, etc.
  • It adopts a 6-station automatic rotating loading device, with a maximum loading capacity of ≥600 cassettes at one time, and can load 6 cassettes of different specifications or colors at the same time
  • The six loading barrels can be grouped by color or specification, and cassettes of different colors or specifications can be selected manually or automatically for printing
  • The number of collection trays is ≥10. A single collection tray can collect ≥33 printed embedding cassettes, and can collect ≥330 embedding cassettes at one time
  • It has multiple printing modes such as individual printing, batch printing, QR code/barcode scanning printing, and online printing with HIS/LIS/PIS system
  • The collection trays for the embedding cassettes are built into the instrument, first in, first out, and placed in an orderly manner. Each collection tray can be taken out at any time after it is full, without shutting down the machine
  • It has the function of material shortage detection and full material detection. If there is no embedding box or the embedding box is full, it can give an alarm in time
  • The maximum resolution is 0.01mm, and text of 0.5 X 0.5mm can be printed. The printed QR code/barcode can be scanned 100% correctly
  • The printed content is clear, will never fade/discolor, and is resistant to scratches and immersion in reagents such as xylene and alcohol
  • Built-in air purification module, the printing process is odor-free and dust-free, protecting the health of operators
  • The names of each printing field can be customized, the printing template can be directly edited on the printing interface, the printed content can be counted and output into files, and the printing data has a power-off protection function to prevent data loss

Technical Parameters

Product Name
Compact Cassette Printer
Model No.
SMI-321CCP
Laser Type
UV laser
Print Content
Numbers/Character/Chinese character/Letter/1D barcodes/QR codes/patterns
Printing Speed
3 to 5 Seconds/piece
Loading Cylinder Capacity
6 loading cylinders, with a loading capacity of ≥600 embedding cassettes at a time
Number of collection trays
≥10, maximum collection capacity ≥330 embedding cassettes
Collection tray installation method
Built-in instrument, sequential collection
System interface
HIS/LIS/PIS
Product size
580 X 440 X 490mm
Weight
46Kg
Power supply
AC220V ± 10% 50Hz
Power
120V

Product Brochure

Product Brochure Link here
