Vertical Rotating Mixer SMI-VRM-01+
Home ≫Heating & Environment >Rotating Mixer>Vertical Rotating Mixer SMI-VRM-01+
Description
The Jindal Vertical Rotating Mixer is designed to deliver efficient yet gentle mixing of laboratory samples, ensuring biological materials such as blood remain in suspension. It is ideal for applications including anticoagulation, latex agglutination tests, immunoprecipitation, and similar procedures. The device accommodates a broad range of tubes (1.5 ml to 50 ml), making it versatile for various laboratory needs.
Latest Ergonomic Features
- Exquisite design with sturdy construction; equipped with special anti-slip feet for strong desktop adhesion, ensuring excellent stability and shock resistance.
- Stepper motor delivers stable performance with high torque, low noise, reliable low-speed operation, strong high-speed capability, and long service life.

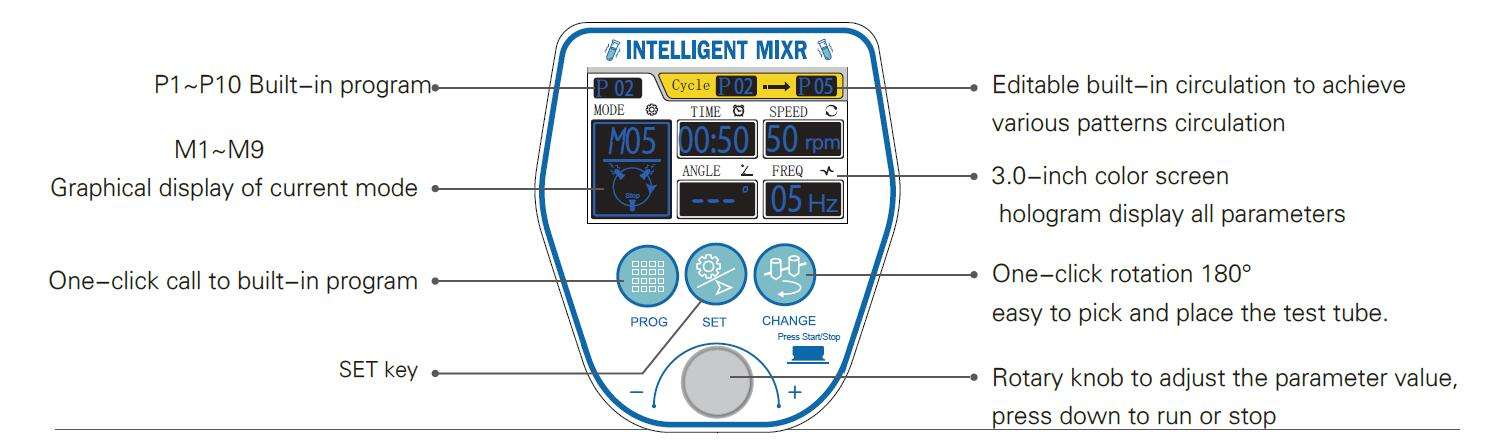

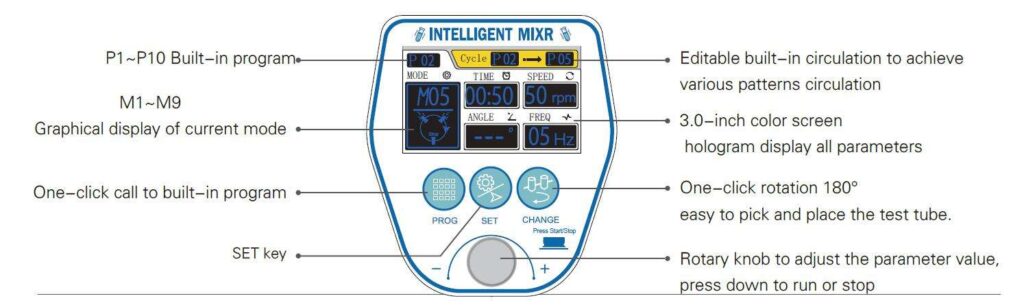

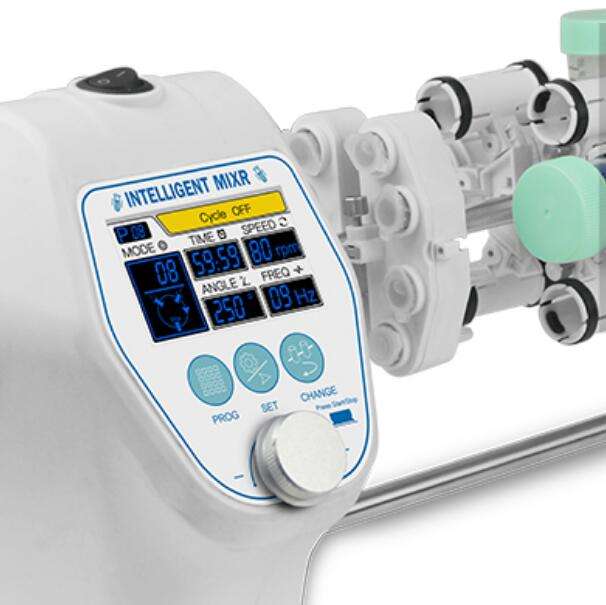

- A 3-inch color display provides clear visualization of all parameters and a graphical representation of the test tube’s operating mode, with an audible alarm at the end of each run.
- Built-in M1–M10 mixing modes allow one-touch selection for quick operation, meeting diverse experimental needs.
- Programmable loop functions enable automatic circulation between modes, supporting unattended operation.
- Easy-to-assemble test tube modules with secure fastening screws ensure durability and reliability; multiple module combinations are available, compatible with 1.5–50 ml tubes to accommodate a wide range of experimental requirements.

Technical Data
Model | SMI-VRM-01+ |
Speed Range | 1rpm to 80rpm |
Time Range | 1s to 99h59min |
Operating relative humidity | No more than 80% |
Voltage | AC 90 to 230V, 50/60Hz |
Power | 48W |
Dimension | W.462 x D.150 x H.180mm |
Net Weight | 2.1kgs |
Product Brochure
Product Brochure Link here
