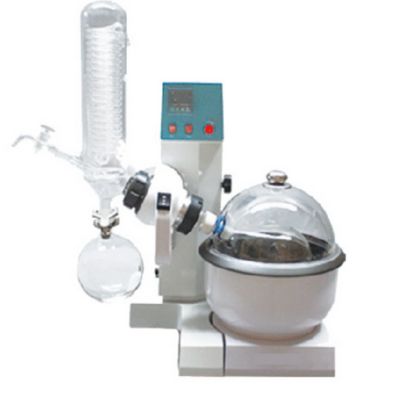

Small Capacity Rotary Evaporator
CLICK TO SCAN
Description
This product can form a film under constant temperature and negative pressure conditions. Owing to its efficient evaporation and condensation recovery of menstruum, the product is employed in the biological, medical, chemical, and food industries, especially for operations involving heat-sensitive material, crystallization, separation, and recovery of menstruum.
Features
- Intelligent temperature control and digital temperature display
- Stepless speed controller
- Teflon Sealing and host automatically
Technical Data:
Model | SMI-RE-2000A | SMI-RE-2000B | SMI-RE-2000E | SMI-RE-52A | SMI-RE-52C | SMI-RE-5299 |
Rotary Bottle | 1 L 24# (standard size） | |||||
Collecting Bottle | 1 L 35# ( ball mill mouth) | 0.5 L 24# (standard size) | ||||
Condenser | Vertical φ85*430mm, | Vertical φ85*460mm, 29# (standard size) | ||||
Charging Valve | 19#(standard size） | |||||
Rotating Speed | 0 to 180 rpm | 0 to 120 rpm | ||||
Vacuum | – 0.098 Mpa | |||||
Temp. Range | RT to 99 °C | |||||
Temp. Accuracy | ±1°C | |||||
Stroke Height | 120 mm | |||||
Rotating Power | 40W | 30W | ||||
Heating Power | 1.5KW | 1KW | ||||
Shelf Material | Aluminum alloy | Powder coating anti corrosive | ||||
Chamber Material | Teflon φ240*140mm | SS φ240*120mm | SS φ250*140mm | |||
Power Supply | AC220/110V±10%, 50/60Hz | AC220V±10%, 50Hz | AC220/110V±10%, 50/60Hz | |||
External Size(W*D*H) | 660 X 420 X 830mm | 700 X 440 X 1005mm | ||||
Packing Size | 630 X 560 X 540 mm (W X D X H) | 590 X 460 X 460 (W X D X H)mm | ||||
Gross Weight | 26 Kg | 21Kg | ||||
Standard Accessory | 1000ml Rotary bottle*1, 500ml recycling bottle*1 | 1000ml rotary bottle*1, 500ml recycling bottle*1 | ||||
Optional Accessory | RT to 400℃ Oil bath, 304 SS bath, Transparent bath cover, Vacuum pump, Recirculating chiller | RT to 400℃ Oil bath, Transparent bath cover, Vacuum pump, Recirculating chiller | ||||
