Sample Concentrator SMI-SC200-2
CLICK TO SCAN
Description

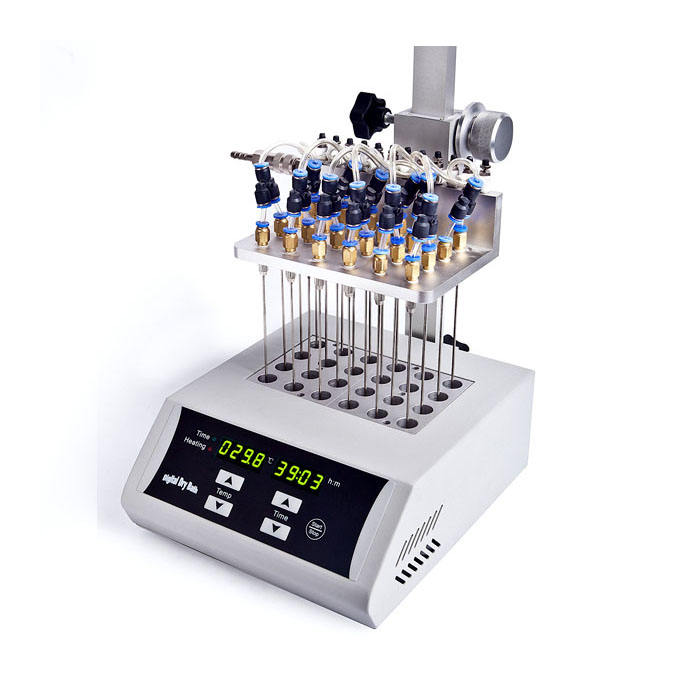

JINDAL SC200-2 nitrogen concentrator is mainly used for enrichment of large-volume sample or preparation (such as drug screening, hormone analysis, liquid phase, and mass spectrometry in the analysis of sample preparation). Working principle: the nitrogen into the heated surface of the sample and make the solvent to evaporate and separated rapidly, thereby reaching the sample enrichment purpose without oxygen, keeping the sample purer. Nitrogen concentrator instrument can concentrate dozens of samples simultaneously, saving time and high efficient, instead of rotary evaporation instrument.
Latest Ergonomic Features
- Standard configured air cavity and adjustable bracket
- LED display immediate temperature and diminishing time. Operation is simple and convenient
- The position of gas needle in air cavity can be adjusted to suit for different types of tubes
- The height of the air cavity can be adjusted. The length of a standard gas needle is 150mm
- The entire equipment can be put into ventilation cabinet when the concentration of sample in toxic solvents takes place
- Gas needle is controlled independently. Separately blow of each needle and flow regulating of each needle are available to avoid gas waste
- Synchronously working with heating by dry bath in the bottom and nitrogen blowing on the surface accelerates liquid evaporation and sample concentration
- Built in overheat protection, automatic fault detection and fault beep alarm devices
Technical Parameters
- Temp. Control Range: R.T.+5℃ to 150℃
- Temp. Setting Range: 5℃ to 150℃
- Temp. Stability@40 to 100℃: ≤±0.5℃
- Temp. Stability@100 to 150℃: ≤±1℃
- Block Temp. Uniformity@100℃: ≤±0.5℃
- Block Temp. Uniformity@150℃: ≤±1 ℃
- Temp. Display Accuracy: 0.1℃
- Heating Speed: ≤30min (40℃ to 150℃)
- Time Range: 1min to 99h59min or continuous
- Needle Plate Max. Lift Stroke: 285mm
- Gas-in Joint Outer Diameter: Φ7mm
- Nitrogen Pressure: ≤0.1MPa
- Nitrogen Flow Rate: 0 to 10L/min
- Needle Length: 150mm
- Sample Capacity: 2 standard blocks
- Voltage: AC 220V / AC 110V, 50/60Hz
- Power: 400W
- Dimension (W X D X H): 200 X 260 X 525mm
- Net Weight: 6.1kgs
Optional Blocks & Flow Regulating Valve
|
Cat# |
Spec |
Dia. Of hole |
Hole bottom shape |
Block dimension |
|
SMI- DT01A |
6 mm X 12 |
6.5 mm |
Round bottom |
95.5 x 76.5 x 50 mm |
|
SMI- DT02A |
7 mm X 12 |
7.5 mm |
Round bottom |
95.5 x 76.5 x 50 mm |
|
SMI- DT03A |
10 mm X 12 |
10.5 mm |
Round bottom |
95.5 x 76.5 x 50 mm |
|
SMI- DT04A |
12 mm X 12 |
12.5 mm |
Round bottom |
95.5 x 76.5 x 50 mm |
|
SMI- DT05A |
13 mm X 12 |
13.5 mm |
Round bottom |
95.5 x 76.5 x 50 mm |
|
SMI- DT06 |
15 mm X 12 |
15.5 mm |
Round bottom |
95.5 x 76.5 x 50 mm |
|
SMI- DT07 |
16 mm X 12 |
16.5 mm |
Round bottom |
95.5 x 76.5 x 50 mm |
|
SMI- DT08 |
19 mm X 12 |
19.5 mm |
Round bottom |
95.5 x 76.5 x 50 mm |
|
SMI- DT09 |
20 mm X 6 |
20.5 mm |
Round bottom |
95.5 x 76.5 x 50 mm |
|
SMI- DT10 |
26 mm X 6 |
26.5 mm |
Round bottom |
95.5 x 76.5 x 50 mm |
|
SMI- DT11 |
28 mm X 4 |
28.5 mm |
Flat bottom |
95.5 x 76.5 x 50 mm |
|
SMI- DT12 |
40 mm X 2 |
40.5 mm |
Round bottom |
95.5 x 76.5 x 50 mm |
|
SMI- DT13A |
0.5 ml X 12 |
8 mm |
Cone bottom |
95.5 x 76.5 x 50 mm |
|
SMI- DT14A |
1.5 ml X 12 |
10.8 mm |
Cone bottom |
95.5 x 76.5 x 50 mm |
|
SMI- DT15A |
2.0 ml X 12 |
10.8 mm |
Round bottom |
95.5 x 76.5 x 50 mm |
|
SMI- DT16A |
0.2 ml X 12 |
6.1 mm |
Cone bottom |
95.5 x 76.5 x 50 mm |
|
SMI- DT19 |
Customized |
Customized |
Customized |
Customized |
