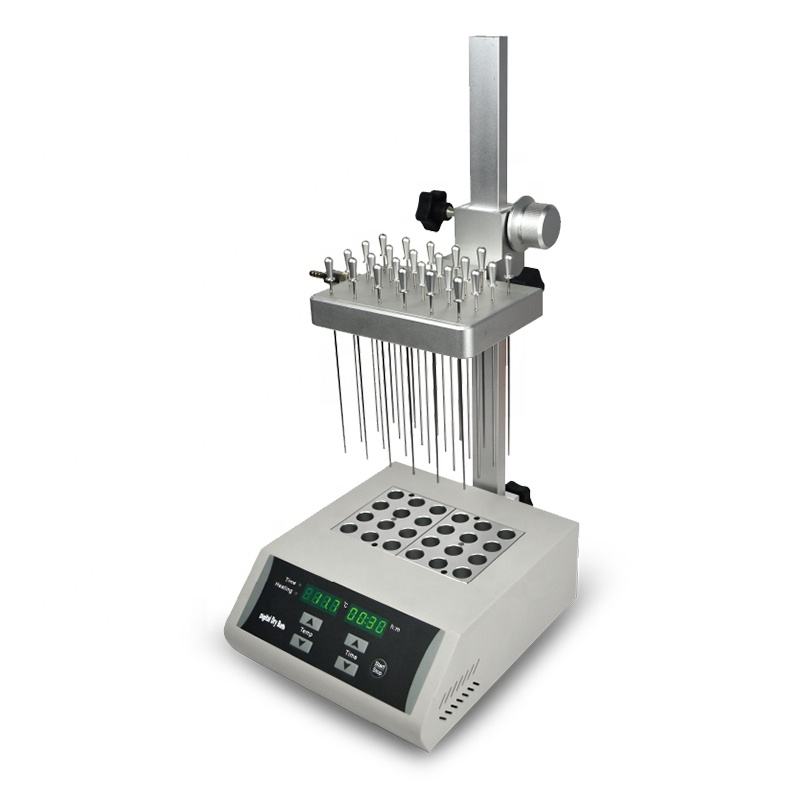

Sample Concentrator SMI-NDK200-2N

CLICK TO SCAN

Description

The JINDAL nitrogen sample concentrator SMI-NDK200-2N is mainly used for concentrating or preparing samples in batches. Such as drug screening, hormone analysis, liquid phase analysis, and mass spectrometry in the analysis of sample preparation. It works by blowing nitrogen onto the surface of the sample, which is being heated, to accelerate evaporation and separate the solvent in the sample without oxygen. Instead of the rotary evaporation instrument, a nitrogen sample concentrator can efficiently concentrate dozens of samples simultaneously.

Latest Ergonomic Features:

  • The position of the gas needle in the air chamber plate can be adjusted to suit different types of tubes.
  • The height of the air chamber plate can be adjusted. The length of a standard gas needle is 150 mm.
  • Standard-configured air cavity and adjustable bracket.
  • The gas needle is controlled independently. Separate blowing of each needle and flow regulation of each needle are available to avoid gas waste.
  • The entire equipment can be put into a ventilation cabinet when the concentration sample is in toxic solvents.
  • Built-in overheat protection, automatic fault detection, and fault beep alarm devices.
  • LED displays immediate temperature and diminishing time. Operation is simple and convenient.
  • Synchronously working with heating by a dry bath in the bottom and nitrogen blowing on the surface accelerates liquid evaporation and sample concentration.

Technical Data:

  • Temp. Control Range: R.T.+5 ~150
  • Temp. Setting Range : 5 ~150
  • Temp. Stability@40~100 : ≤±0.5
  • Temp. Stability@100~150 : ≤±1
  • Block Temp. Uniformity@100 : ≤±0.5
  • Block Temp. Uniformity@150 : ≤±1
  • Temp. Display Accuracy : 0.1
  • Heating Speed : ≤30min (40 to 150)
  • Time Range : 1min ~99h59min or continuous
  • Needle Plate Max. Lift Stroke : 285mm
  • Gas-in Joint Outer Diameter : Φ7mm
  • Nitrogen Pressure : ≤0.1MPa
  • Nitrogen Flow Rate : 0 ~10L/min
  • Needle Length : 150mm
  • Sample Capacity : 2 standard blocks
  • Voltage : AC 220V / AC 110V, 50/60Hz
  • Power : 400W
  • Fuse : 250V, 3A/6A, Ф5×20
  • Dimension (W x D x H) : 200 x 260 x 525mm
  • Net Weight : 6.1kgs

Common Configuration:

  • Optional blocks from DT01A to DT16A can be interchanged easily
  • Optional regulating valve

Optional Accessories:



Cat#

Spec

Dia. of hole

Hole bottom shape

Block dimension

 DT01A

6 mm x 12

6.5 mm

  Round bottom

95.5 x 76.5 x 50 mm

 DT02A

7 mm x 12

7.5 mm

  Round bottom

95.5 x 76.5 x 50 mm

 DT03A

10 mm x 12

10.5 mm

  Round bottom

95.5 x 76.5 x 50 mm

 DT04A

12 mm x 12

12.5 mm

  Round bottom

95.5 x 76.5 x 50 mm

 DT05A

13 mm x 12

13.5 mm

  Round bottom

95.5 x 76.5 x 50 mm

 DT06

15 mm x 12

15.5 mm

  Round bottom

95.5 x 76.5 x 50 mm

 DT07

16 mm x 12

16.5 mm

  Round bottom

95.5 x 76.5 x 50 mm

 DT08

19 mm x 12

19.5 mm

  Round bottom

95.5 x 76.5 x 50 mm

 DT09

20 mm x 6

20.5 mm

  Round bottom

95.5 x 76.5 x 50 mm

DT10

26 mm x 6

26.5 mm

  Round bottom

95.5 x 76.5 x 50 mm

DT11

28 mm x 4

28.5 mm

  flat  bottom

95.5 x 76.5 x 50 mm

DT12

40 mm x 2

40.5 mm

  Round bottom

95.5 x 76.5 x 50 mm

DT13A

0.5 ml x 12

8 mm

Cone bottom

95.5 x 76.5 x 50 mm

DT14A

1.5 ml x 12

10.8 mm

Cone bottom

95.5 x 76.5 x 50 mm

DT15A

2.0 ml x 12

10.8 mm

  Round bottom

95.5 x 76.5 x 50 mm

DT16A

0.2 ml x 12

6.1 mm

Cone bottom

95.5 x 76.5 x 50 mm

DT19

Customized

Customized

Customized

Customized
