Sample Concentrator SMI-NDK200-1N
CLICK TO SCAN
Description

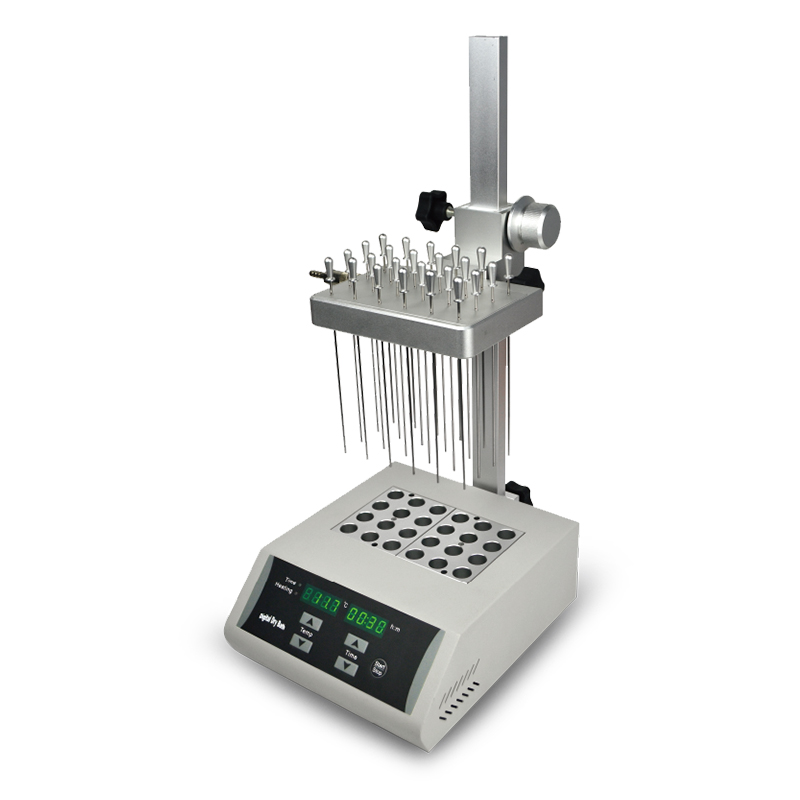

JINDAL nitrogen sample concentrator SMI-NDK200-1N is mainly used for concentrating or preparing sample in batches. Such as drug screening, hormone analysis, liquid phase and mass spectrometry in the analysis of sample preparation. It works by blowing nitrogen in the surface of sample which is being heated to accelerate evaporating and separating the solvent in the samples without oxygen. Instead of the rotary evaporation instrument, nitrogen sample concentrator can efficiently concentrate dozens of samples simultaneously.
Latest Ergonomic Features
- Standard configured air cavity and adjustable bracket
- LED displays immediate temperature and diminishing time. Operation is simple and convenient
- The position of gas needle in air chamber plate can be adjusted to suit for different types of tubes
- The height of the air chamber plate can be adjusted. The length of a standard gas needle is 150mm
- The entire equipment can be put into ventilation cabinet when the concentration sample is in toxic solvents
- Gas needle is controlled independently. Separately blow of each needle and flow regulating of each needle are available to avoid gas waste
- Synchronously working with heating by dry bath in the bottom and nitrogen blowing on the surface accelerates liquid evaporation and sample concentration
- Built in overheat protection, automatic fault detection and fault beep alarm devices
Technical Parameters
- Temp. Control Range: R.T.+5℃ to 150℃
- Temp. Setting Range : 5℃ to 150℃
- Temp. Stability@40 to 100℃ : ≤±0.5℃
- Temp. Stability@100 to 150℃ : ≤±1℃
- Block Temp. Uniformity@100℃ : ≤±0.5℃
- Block Temp. Uniformity@150℃ : ≤±1 ℃
- Temp. Display Accuracy : 0.1℃
- Heating Speed : ≤30min (40℃ to 150℃)
- Time Range : 1min to 99h59min or continuous
- Needle Plate Max. Lift Stroke : 285mm
- Gas-in Joint Outer Diameter : Φ7mm
- Nitrogen Pressure : ≤0.1MPa
- Nitrogen Flow Rate : 0 to 10L/min
- Needle Length : 150mm
- Sample Capacity : 1 standard block
- Voltage : AC 220V / AC 110V, 50/60Hz
- Power : 200W
- Fuse : 250V, 2A/3A, Ф5×20
- Dimension (W X D X H) : 200 X 230 X 525mm
- Net Weight : 5.1kgs
Common Configuration
- Optional blocks from DT01A to DT16A that can be interchanged easily
- Optional regulating valve
Optional Accessories
Cat# | Spec | Dia. of hole | Hole bottom shape | Block dimension |
SMI- DT01A | 6 mm X 12 | 6.5 mm | Round bottom | 95.5 x 76.5 x 50 mm |
SMI-DT02A | 7 mm X 12 | 7.5 mm | Round bottom | 95.5 x 76.5 x 50 mm |
SMI-DT03A | 10 mm X 12 | 10.5 mm | Round bottom | 95.5 x 76.5 x 50 mm |
SMI-DT04A | 12 mm X 12 | 12.5 mm | Round bottom | 95.5 x 76.5 x 50 mm |
SMI-DT05A | 13 mm X 12 | 13.5 mm | Round bottom | 95.5 x 76.5 x 50 mm |
SMI-DT06 | 15 mm X 12 | 15.5 mm | Round bottom | 95.5 x 76.5 x 50 mm |
SMI- DT07 | 16 mm X 12 | 16.5 mm | Round bottom | 95.5 x 76.5 x 50 mm |
SMI-DT08 | 19 mm X 12 | 19.5 mm | Round bottom | 95.5 x 76.5 x 50 mm |
SMI-DT09 | 20 mm X 6 | 20.5 mm | Round bottom | 95.5 x 76.5 x 50 mm |
SMI-DT10 | 26 mm X 6 | 26.5 mm | Round bottom | 95.5 x 76.5 x 50 mm |
SMI-DT11 | 28 mm X 4 | 28.5 mm | flat bottom | 95.5 x 76.5 x 50 mm |
SMI-DT12 | 40 mm X 2 | 40.5 mm | Round bottom | 95.5 x 76.5 x 50 mm |
SMI-DT13A | 0.5 ml X 12 | 8 mm | Cone bottom | 95.5 x 76.5 x 50 mm |
SMI-DT14A | 1.5 ml X 12 | 10.8 mm | Cone bottom | 95.5 x 76.5 x 50 mm |
SMI-DT15A | 2.0 ml X 12 | 10.8 mm | Round bottom | 95.5 x 76.5 x 50 mm |
SMI-DT16A | 0.2 ml X 12 | 6.1 mm | Cone bottom | 95.5 x 76.5 x 50 mm |
SMI-DT19 | Customized | Customized | Customized | Customized |
