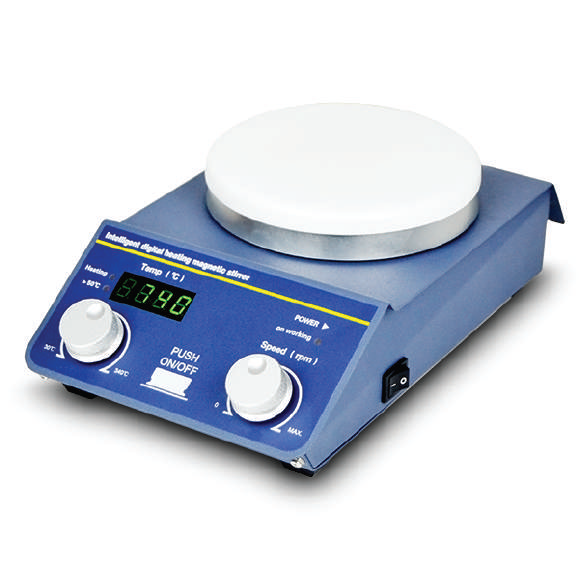

Round Ceramic Top Digital Magnetic Stirrer Hot Plate (Heating & Stirring) SMI-TP-350E

Home ≫Heating & Environment>Magnetic Stirrers>Round Ceramic Top Digital Magnetic Stirrer
Hot Plate (Heating & Stirring) SMI-TP-350E

Round Ceramic Top Digital Magnetic Stirrer Hot Plate (Heating & Stirring) SMI-TP-350E"

CLICK TO SCAN

Description

JINDAL The heating plate of the digital magnetic stirrer hot plate series SMI-TP-350E is made of special ceramic. With a special heating technique, the heating plate can reach temperatures up to 340°C. Magnetic stirring is provided with a stir bar. Humanized design for convenient operation to meet various heating and stirring experimental needs.

Latest Ergonomic Features:

  • The heating plate is made of a special ceramic. Beautiful, antiseptic, and easy for cleaning.
  • With a special heating technique, the heating plate can reach temperatures up to 340 °C.
  • PID for temperature control. Two display windows high-precision measurement. single-button operation. Inner and outer thermocouples for thermometry Silicon is controlled for output. with a couple broken protection functions.
  • Available for heating and stirring standard and non-standard reaction flasks from 50 ml to 1000 ml.
  • DC brushless motors have stable operation, low noise, a long service life, and no spark.
  • Metal plate shell, firm and durable, thermostability, and anti-corrosion.
  • The control panel is designed with 30° slopes for convenient operation.
  • Magnetic stirring technology Low speed but stable; high speed but powerful.

Technical Data:

  • Platform Size : Φ137mm
  • Platform Material : Ceramic
  • Speed Range : 0 ~1800 rpm
  • Temp. Control Range (surface) : R.T.+5℃ ~340℃
  • Temp. Setting Range   (surface) : 30℃ ~340℃
  • Temp. Stability : ±3℃
  • Time Range : continuous
  • Stirring Point Quantity : 1 point
  • Max. Stir Capacity (H2O) : 20L
  • Max. Size of Stirrer Stick : 80mm
  • External Interface Temp. Sensor : /
  • Adjustable Safety Loop Min. Temp. : 50℃
  • Adjustable Safety Loop Max. Temp. : 350℃
  • Voltage : AC 220V/ AC 110V, 50/60Hz
  • Power : 600W
  • Fuse : 250V, 4A/8A, Ф5×20
  • Dimension (W*D*H) : 156 x 270 x 90mm
  • Net Weight : 2.6kgs
