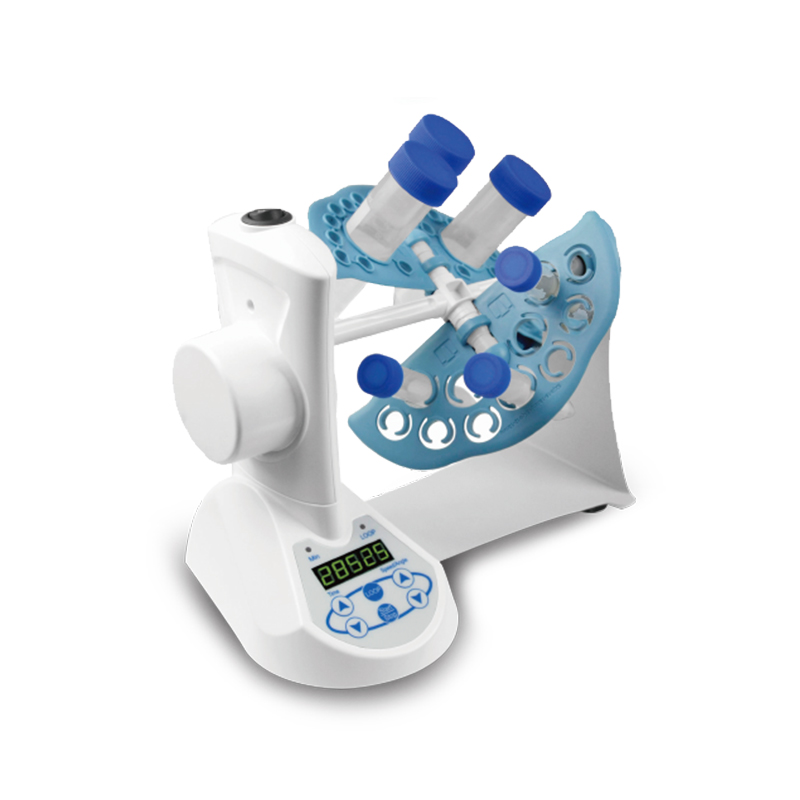

Rotating Mixer SMI-RH-18+ 3D



JINDAL new series of three-dimensional rotating mixers, SMI-RH-18+ 3D, can mix samples by horizon, vertical, or any angled rotation with a variety of sample tubes. Adjusting the rotating frame (tube holder) can make the products rotate either horizontally or vertically, or between the angles of horizon and verticality. Its rotation speed is moderate. It is widely used in molecular hybridization, blood, and various samples requiring mixing. In addition, the two rotating frames (tube holders) on each side of the rotating roller can be adjusted individually to meet different hybrid modes in one mixture. The 3D rotating mixer is compact, light, and convenient. It is easily moved to different places, such as a test bed, a refrigerator, or an incubator. The shell and rotating panel of this instrument have a special design. It’s very easy to clean and decontaminate.

Latest Ergonomic Features:

  • Unique combination of an adjustable rotating frame.
  • A variety of rotation modes, from mild type to somersault type rotation mode.
  • with a reciprocating oscillation function from 20 angles to 99 angles.
  • Widely used in molecular biology, histochemistry, biochemistry, clinical applications, etc.
  • Provide three types of rotating frames.

Technical Data:

  • Speed Range : 10rpm ~40 rpm
  • Reciprocating Swing Angel Range : 20˚~99˚
  • Time Range : 1s~999 min
  • Voltage : AC 100V ~230V, 50/60Hz
  • Power : 4W
  • Fuse : 250V, 1A, Փ5×20
  • Dimension (W*D*H) : 240 x 145 x 210mm
  • Net Weight : 1.2kgs

Optional Accessories:



Standard Configuration



1 pair (2 pieces)

5 centrifuge tubes of 10ml / 15ml (Փ15mm~ Փ16mm)

+ 6 centrifuge tubes of 5ml / 7ml (Փ12mm~ Փ13mm)


1 pair (2 pieces)

3 centrifuge tubes of 50 ml + 18 centrifuge tubes of 0.5ml


1 pair (2 pieces)

18 centrifuge tubes of 1.5ml / 2.0ml
