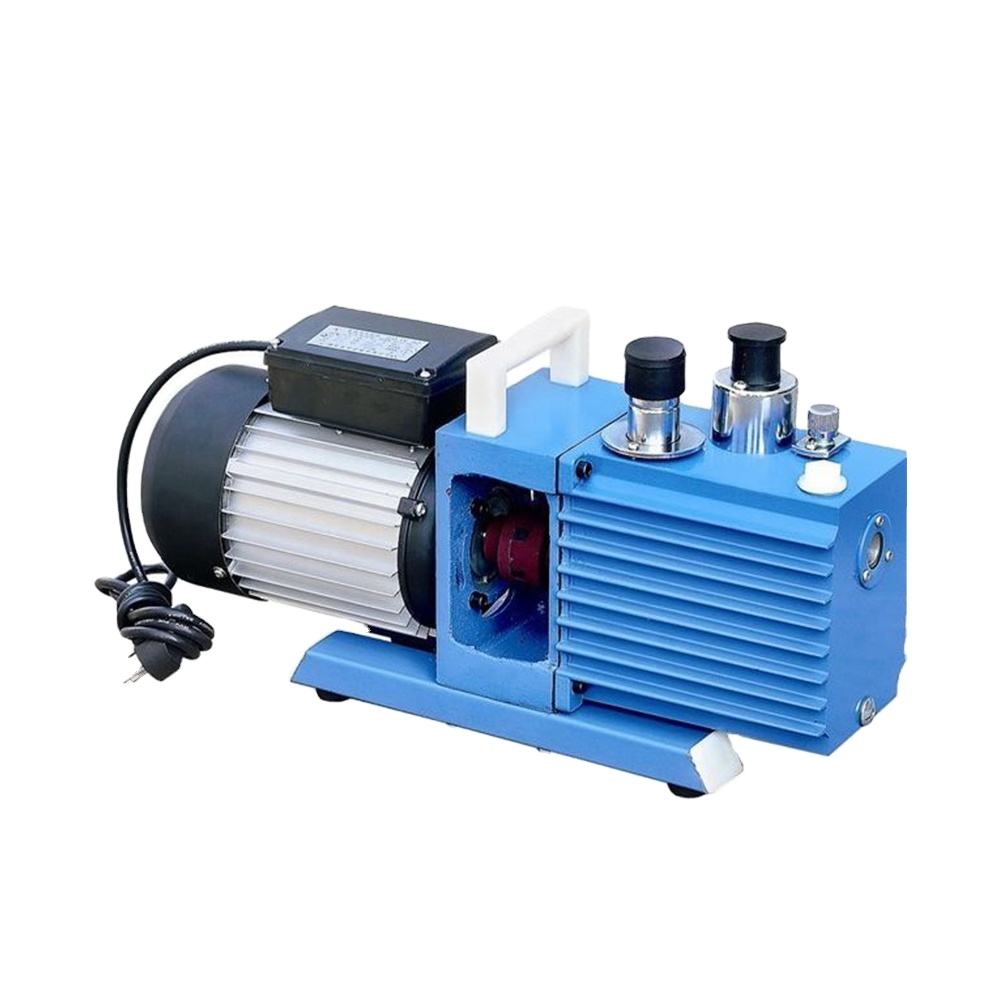

Rotary Vane Vacuum Pump SMI-RV
Home ≫Heating & Environment>Vacuum Ovens & Pumps>Rotary Vane Vacuum Pump SMI-RV
Rotary Vane Vacuum Pump SMI-RV
CLICK TO SCAN
Description
JINDAL rotary vane vacuum pumps find extensive use in laboratories.
Latest Ergonomic Features:
- Rotary vane vacuum pump with dipole unit construction structure.
- Exhaust air and vacuum the equipment. Serialize the process of refrigeration, drying, and sealing the container to make it complete.
- Small volume, light weight, low noise, and easy to operate. (This series of products could not be used as compressor pumps or delivery pumps.)
Technical Data:
|
Model
|
SMI-RV -0.5
|
SMI-RV-1
|
SMI-RV-2
|
SMI- RV -4
|
SMI- RV -6
|
SMI- RV -8
|
SMI- RV -15
|
SMI- RV -25
|
|---|---|---|---|---|---|---|---|---|
|
Speed Of Exhaust (L/S)
|
0.5
|
1
|
2
|
4
|
6
|
8
|
15
|
25
|
|
Speed
|
1400rpm
|
|||||||
|
Ultimate Vacuum (pa)
|
6*10^-2
|
|||||||
|
Consumption
|
180w
|
250w
|
370w
|
550w
|
750w
|
1110w
|
1500w
|
3000w
|
|
Power Supply
|
AC220V/110V±10%，50/60Hz
|
AC380V, 50Hz
|
||||||
|
External Size (L*W*H) (mm)
|
462*131*250
|
484*131*250
|
481*146*265
|
525*146*265
|
580*195*380
|
640*245*430
|
760*350*520
|
960*550*630
|
|
Package Size (L*W*H) (mm)
|
530*205*320
|
570*210*320
|
590*210*340
|
610*210*345
|
640*270*410
|
700*310*475
|
820*410*580
|
1020*600*780
|
|
Gross Weight (kg)
|
7.85
|
20.45
|
24.35
|
26.5
|
43
|
67.8
|
100
|
120
|
