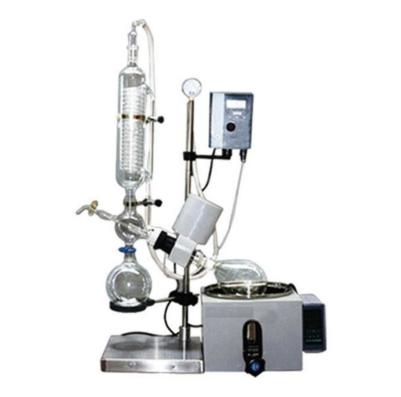

Rotary Evaporator SMI-RE
CLICK TO SCAN
Latest Ergonomic Features
- Electronic step less speed control
- LED display
Technical Data:
Model | SMI-RE-201D | SMI-RE-301 | SMI-RE-501 | SMI-RE-1002 | SMI-RE-2002 | SMI-RE-5003 | ||||||
Rotary Bottle | 1L 24#(standard mouth) | 3 L (flangeφ50) | 5L (flangeφ50) | 10 L (flange φ95) | 20L(flange φ95) | 50L (flange φ125) | ||||||
Collecting Bottle | 1L 35#( ball mill mouth) | 2 L 35#(ball mill mouth) | 3L 35# (ball mill mouth) | 5L (flange φ60-50) | 10L (flange φ60-50) | 20L (flange φ60-50 | ||||||
Condenser | Vertical φ85*430mm,35# ( ball mill mouth) | Vertical φ100*530mm | Vertical φ100*530mm | Vertical three Backflow 120 * 620 mm (main) ,φ 135 * 75mm(SUB) | Vertical three backflow φ130 *700 mm(main), φ160*530mm (SUB) | Vertical three Back flow φ 160 *835mm(main), φ160*530mm (SUB) | ||||||
Charging Valve | 19#(standard size） | 34#(standard size） | 40#(standard size) | |||||||||
Rotary Speed | 0-120rpm | 0-120 rpm | ||||||||||
Vacuum | 0.098 Mpa | 0.095 Mpa | ||||||||||
Temp. Range | RT to 180℃ | |||||||||||
Temp. Accuracy | ±1℃ | |||||||||||
Stroke Height | 200mm | 180mm | ||||||||||
Rotary Power | 40W | 120W | 180W | |||||||||
Heating Power | 1KW | 2KW | 3KW | 5KW | 8KW | |||||||
Shelf Material | Stainless steel | Coating anticorrosive | ||||||||||
Chamber Material | SS 245*140mm | SS 265*160mm | SS 280*170mm | SS 350*220mm | SS 450*260mm | SS 550*320mm | ||||||
Plate size | 280*330mm | 350*330mm | 534*504mm | 474*474mm | 550*320mm | |||||||
Power Supply | AC220/110V±10%,50/60Hz | AC220V±10%,50/60Hz | AC380V/220V±10%,50Hz | |||||||||
External Size (mm) | 700 X 330 X 785 | 740 X 330 X 970 | 760 X 330 X 1030 | 930 X 560 X 1910 | 1000 X 600 X 2130 | 1330 X 730 X 2340 | ||||||
Gross Weight | 21Kg | 40Kg | 42Kg | 107Kg | 136Kg | 186Kg | ||||||
Standard Accessory | 1L Rotary bottle*1, 1L Collecting bottle*1 | 3L Rotary bottle*1, 2L Collecting bottle*1
| 5L Rotary bottle*1, | 10L rotary bottle*1, 5L collecting bottle*1 | 20L rotary bottle*1, 10L collecting bottle *1 | 50Lrotary bottle*1, 20L collecting bottle | ||||||
