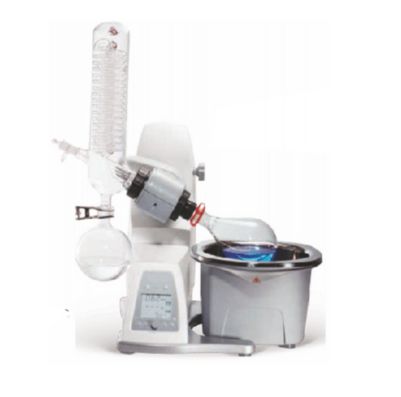

Rotary Evaporator (New Modular Design) SMI-RE(NMD)-009
Home ≫Heating & Environment>Rotary Evaporator >Rotary Evaporator (New Modular Design) SMI-RE(NMD)-009
Rotary Evaporator (New Modular Design) SMI-RE(NMD)-009
CLICK TO SCAN
Features:
- Evaporating flask with an ejector, convenient to remove
Technical Data:
|
Model
|
SMI-RE(NMD)-009
|
|||
|---|---|---|---|---|
|
Rotary Bottle
|
1L(NS 29/32 or NS24/40)
|
|||
|
Collecting Bottle
|
1L(KS 35/20)
|
|||
|
Display
|
LCD
|
|||
|
Rotating Speed
|
20~280 rpm
|
|||
|
Temp Range
|
RT~180°C
|
|||
|
Temp. Accuracy
|
±1°C
|
|||
|
Lift
|
Motor
|
|||
|
Stroke Height
|
150mm
|
|||
|
Timing Range
|
1~999 min
|
|||
|
Motor
|
DC brushless motor
|
|||
|
Power
|
1400 W
|
|||
|
Rotation
|
Reversible Direction
|
|||
|
Interface
|
USB
|
|||
|
Consumption
|
1400W
|
|||
|
Power Supply
|
AC110/220V±10%, 50/60Hz
|
|||
|
External Size(W*D*H)
|
465*457*583 mm
|
|||
|
Package Size(W*D*H)
|
640*1100*650 mm
|
|||
|
Net Weight
|
15 kg
|
|||
|
Gross Weight
|
40kg
|
|||
|
Standard Accessory
|
1L Rotary bottle*1, 1L Collecting bottle*1
|
|||
|
Optional Accessories
|
Vacuum pump, Recirculating chiller
|
|||
