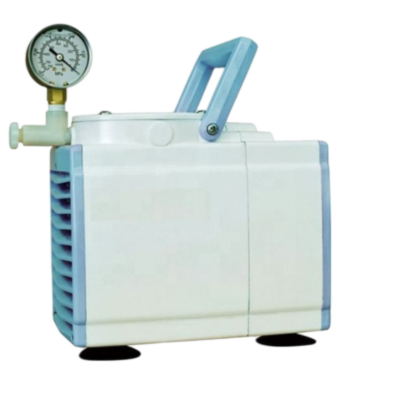

Oil Free Vacuum Pump SMI-GM
CLICK TO SCAN
Description
JINDAL oil-free vacuum pumps are designed to meet the small vacuum requirements of the laboratory.
Latest Ergonomic Features
- Oil free, Clean exhausted air by built-in filter
- Automatic cooling exhaust system ensures 24h operation continuously
- The pressure adjustable design can satisfy a certain range of vacuum and glass velocity
- TEFLON surface treatment, anti-gas corrosion
- Orange colour finish for anticorrosive vacuum pump. (eg: SMI-GM-0.33IIP, SMI-GM-0.5P, SMI-GM- 0.5IIP, SMI-GM-1.0P)
Technical Data:
|
Model
|
SMI-GM-0.20
|
SMI-GM-0.5II
|
SMI-GM-0.5
|
SMI-GM-0.33II
|
SMI-GM-1.0
|
|
Pump Head
|
1
|
2
|
1
|
1
|
2
|
|
Speed of Evacuation
|
12 L/Min
|
30 L/Min
|
20 L/Min
|
60 L/Min
|
|
|
Ultimate pressure
|
≥0.075 Mpa
|
≥0.095 Mpa
|
≥0.08 Mpa
|
||
|
Vacuum
|
250 mbar
|
50 mbar
|
200 mbar
|
||
|
Pressure
|
≥30 Psi Positive or
negative pressure |
Negative pressure
|
≥30Positive, Positive or
negative pressure |
Negative pressure
|
≥30Positive, Positive or
negative pressure |
|
Inlet
|
φ6 mm
|
||||
|
Outlet
|
φ6 mm
|
Silencer
|
φ6 mm
|
Silencer
|
φ6 mm
|
|
Working Temp.
|
7 to 40℃
|
||||
|
Body Temp.
|
<55℃
|
||||
|
Noise Level
|
<60 dB
|
<50 dB
|
|||
|
Motor Power
|
75W
|
160W
|
|||
|
Power consumption
|
AC110/220V±10%, 50/60Hz
|
||||
|
Diaphragm
|
NBR
|
||||
|
Valves
|
/
|
NBR
|
|||
|
Net Weight(kg)
|
4
|
10
|
6.6
|
6.2
|
10
|
|
Gross Weight(kg)
|
4.5
|
11
|
7.6
|
7.5
|
11
|
|
External Size (L X W X H)mm
|
195 X 98 X 156
|
300 X 120 X 235
|
210 X 160 X 235
|
215 X 120 X 235
|
300 X 160 X 235
|
|
Package Size (L X W X H)mm
|
330 X 210 X 240
|
314 X 205 X 316
|
300 X 210 X 310
|
315 X 200 X 310
|
380 X 340 X 270
|
