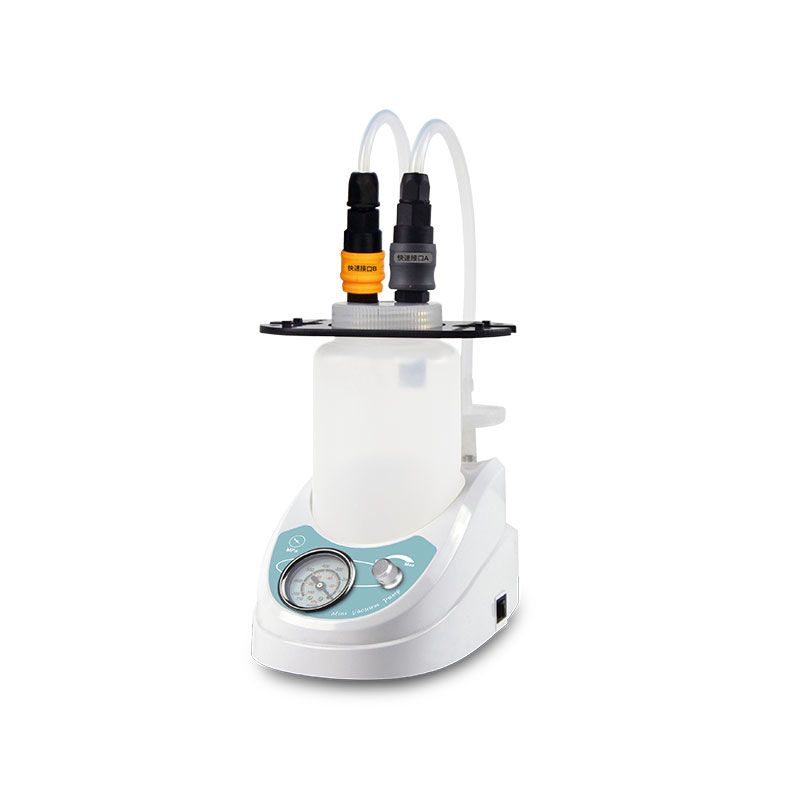

Mini Vacuum Pump SMI-ZK-8
Home ≫Heating & Environment>Vacuum Ovens & Pumps>Mini Vacuum Pump SMI-ZK-8
Mini Vacuum Pump SMI-ZK-8
CLICK TO SCAN
Description
The mini vacuum pump is primarily used for separating culture fluid from culture tissue after biochemical cultivation, extracting waste liquid from cell cultures, and removing various liquid wastes in the laboratory. Available in different flow-rate specifications to meet diverse experimental needs, it is an essential tool and an indispensable assistant for any laboratory aseptic workstation.
Accessories
Model | Name | Material | Quantity |
SMI-ZK-A | Hand Held Operator | POM | 1 |
SMI-ZK-B | Eight channel retractable trip plastic extraction head | POM | 1 |
SMI-ZK-C | Eight Channel stainless steel extraction head | POM + SUS304 | 1 |
SMI-ZK-D | Single channel plastic extraction head | POM | 1 |
SMI-ZK-E | Single channel retractable trip plastic extraction head | POM | 1 |
SMI-ZK-F | Single Channel stainless steel extraction head | POM + SUS304 | 1 |
Features
- Pumping filter brackets are mounted on both sides of the instrument, making it easy to store and select suction filter accessories.
- The standard configuration includes a multifunctional suction filter and five types of suction head accessories to meet various experimental requirements.
- Waste-liquid bottles, suction filter fittings, and dish filters are all suitable for autoclave sterilization.
- The sealed waste-liquid bottle cap, with a quick-insertion sealing joint, allows the bottle to be easily removed from the unit for convenient cleaning and waste disposal.
- A liquid-level protection switch in the waste-liquid bottle prevents overflow and stops liquid from entering the pump chamber, ensuring trouble-free suction filtration.
- A PTFE dish-shaped filter between the bottle and the pump protects the environment from harmful gas emissions.
- A self-locking quick connector allows the pipeline to be quickly and easily disconnected, enabling safe and efficient cleaning of the waste bottle.
- The built-in, high-quality, oil-free vacuum pump requires no maintenance, operates with low noise, and has a long service life.
Technical Data
Model | SMI-ZK-8 | SMI-ZK-8+ |
Max. Flow Rate | 8L/mim | 8L/min |
Vacuum Degree | -0.065Mpa | -0.065Mpa |
Vacuum Display Mode | Vacuum Gauge | Digital Display |
Negative Pressure adjustment range | 0 to -0.65Mpa | 0 to -0.65Mpa |
Waste liquid bottle capacity | 1000mL | 1000mL |
Voltage | DC24V 0.8A | DC24V 0.8A |
Power | 8W | 8W |
Dimension (W X D X H)mm | .130 X .288 X .300 | .130 X .288 X .300mm |
Net Weight | 1.6Kg | 1.4Kg |
Product Brochure
Product Brochure Link here
