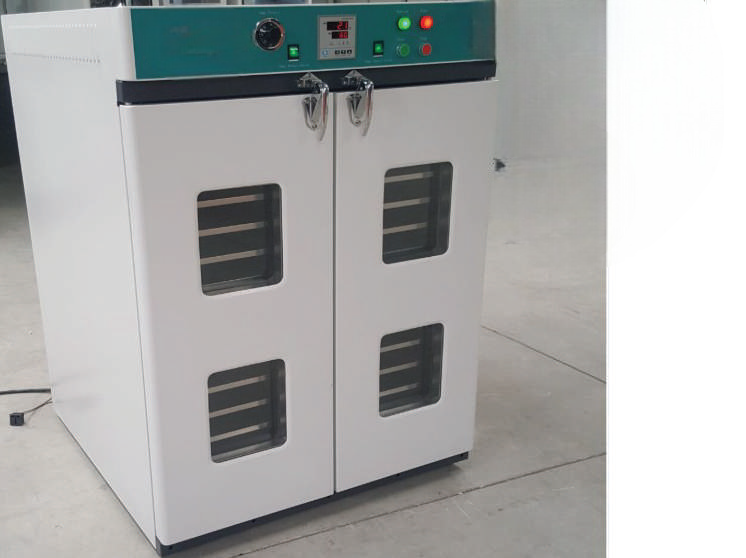

Home ≫ Heating & Environment >Lab Hot Air Ovens >Large Capacity Forced Air Drying Oven
CLICK TO SCAN
|
Model
|
SMI-DGF-4A
|
SMI-DGF-5A
|
SMI-DGF-6A
|
SMI-DGF-7A
|
SMI-DGF-8A
|
|
|---|---|---|---|---|---|---|
|
|
SMI-DGF-4AB
|
SMI-DGF-5AB
|
SMI-DGF-6AB
|
SMI-DGF-7AB
|
SMI-DGF-8AB
|
|
|
Cycle Mode
|
Fan - forced circulation
|
|||||
|
Temp. Range
|
RT+10-250℃
|
|||||
|
Temp. Resolution Ratio
|
0.1℃
|
|||||
|
Temp. Motion
|
±1ºC
|
|||||
|
Temp. Uniformity
|
±3%
|
|||||
|
Inner Chamber
|
A: Iron inner chamber AB:Stainless steel inner chamber
|
|||||
|
Outer Shell
|
Galvanized sheet electrostatic spraying exterior
|
|||||
|
Insulation Layer
|
High quality rock wool board (with CE)
|
|||||
|
Heater
|
Stainless steel heating tube
|
|||||
|
Power Rating
|
5.4kW
|
6.6kW
|
9kW
|
12kW
|
18kW
|
|
|
Exhaust Hole
|
On top or side
|
|||||
|
Temp. Control Mode
|
PID intelligent control or Multi - segment programmable control ( optional )
|
|||||
|
Temp. Setting Mode
|
Touch button setting
|
|||||
|
Temp. Display Mode
|
LED Digital Display
|
|||||
|
Timer
|
0-9999 min (with timing wait function)
|
|||||
|
Operation Function
|
Fixed temperature operation, timing function, auto stop.
|
|||||
|
Additional Function
|
Temperature deviation correction, menu locked, power-off memory
|
|||||
|
Sensor
|
Pt100
|
|||||
|
Saftey Device
|
One key to start overheat power off
|
|||||
|
Inner Chamber size(W*L*H)(mm)
|
800*800*1000
|
1000*1000 *1000
|
1000*1000 *1300
|
1200*1200 *1300
|
1600*1200 *1600
|
|
|
Exterior Size(W*L*H)(mm)
|
940*1000 *1400
|
1040*1200 *1400
|
1230*1200 *1670
|
1330*1400 *1670
|
1750*1400 *2070
|
|
|
Packing Size(W*L*H)(mm)
|
1060*1090 *1520
|
1260*1290 *1520
|
1350*1300 *1890
|
1550*1500 *1890
|
1950*1500 *2290
|
|
|
Volume
|
640L
|
1000L
|
1300L
|
1870L
|
3070L
|
|
|
Shelf Number
|
11
|
11
|
15
|
15
|
20
|
|
|
Shelf Space
|
70mm
|
|||||
|
NW/GW (Kg)
|
200
|
260
|
350
|
480
|
800
|
|
|
Shelf
|
2
|
|||||
|
Shelf Frame
|
No
|
|||||
