Ceramic Top Magnetic Stirrer

Home ≫ Heating & Environment >Magnetic Stirrers>Ceramic Top Magnetic Stirrer

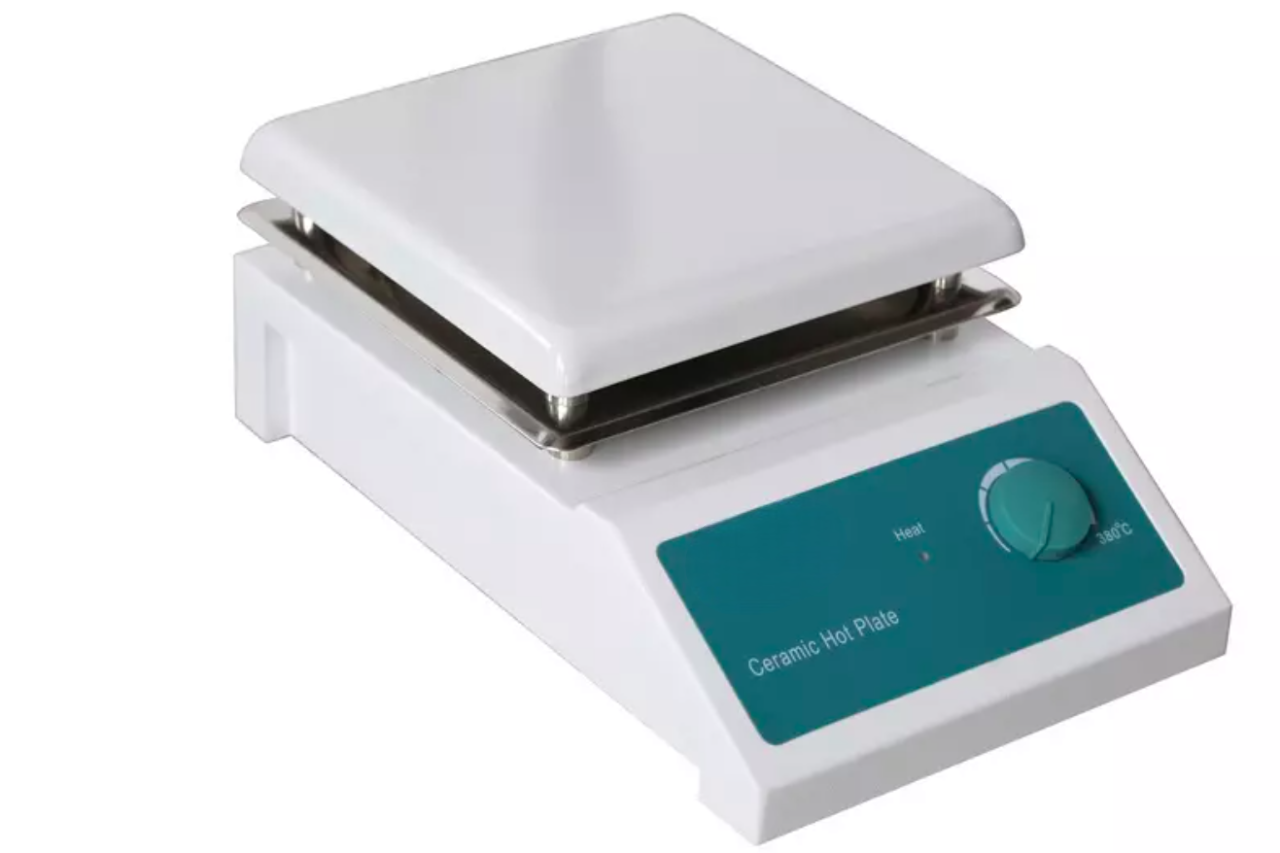

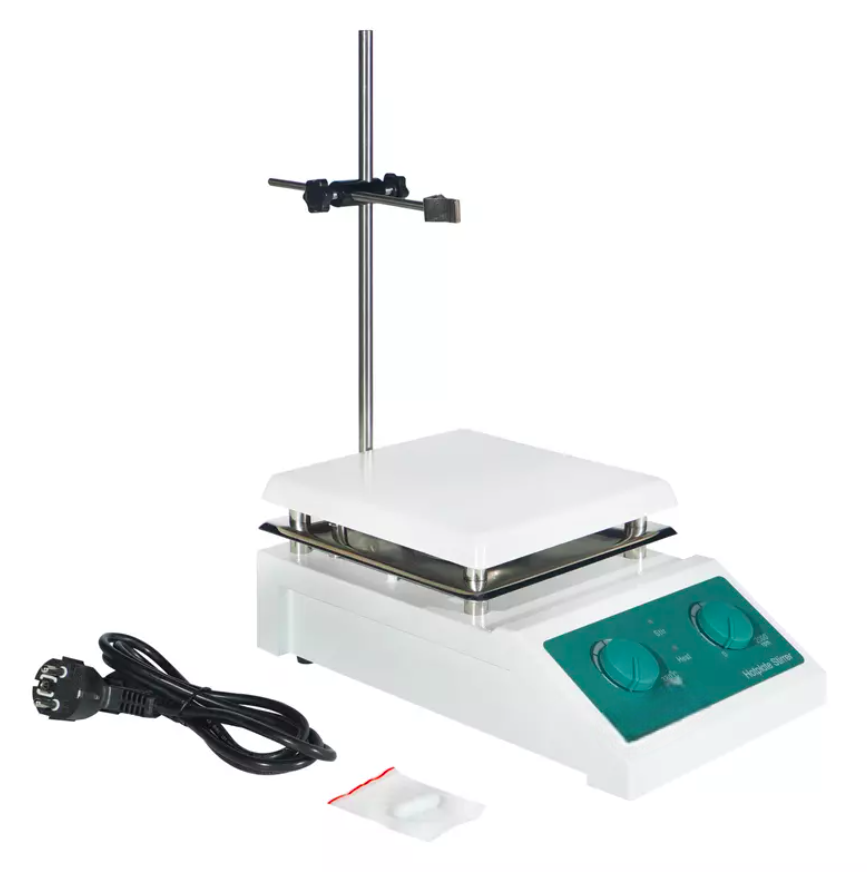

Ceramic Top Magnetic Stirrer

CLICK TO SCAN

Characteristics

  • Stretched shells and covers prevent leaking.
  • Heating and stirring can proceed simultaneously.
  • Enclosed hot plate with flame protection, fast warm-up, and durability.
  • Heating power and stirring speed are sleeplessly adjusted.
  • With the adjustable PT100 sensor rack and stainless steel rods.

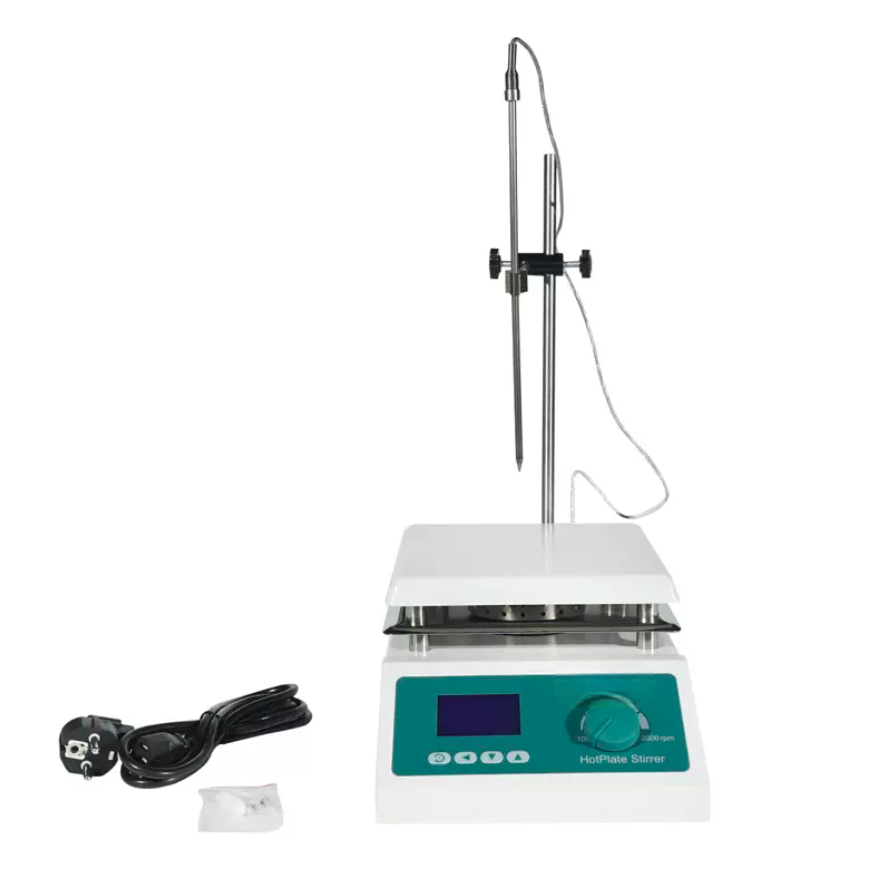

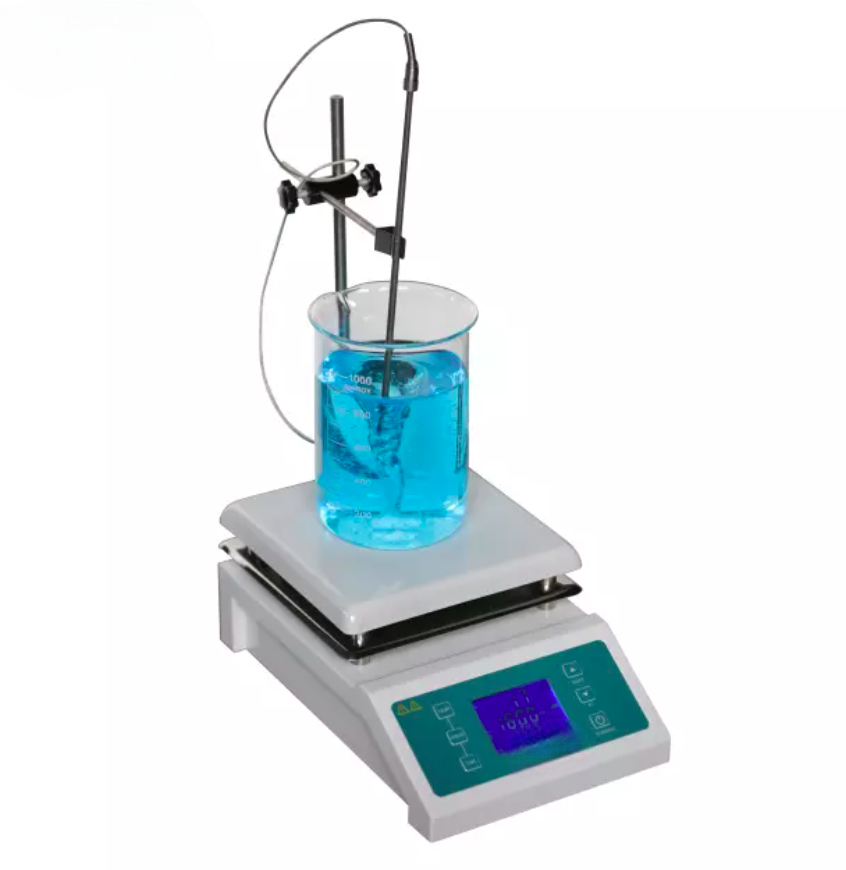

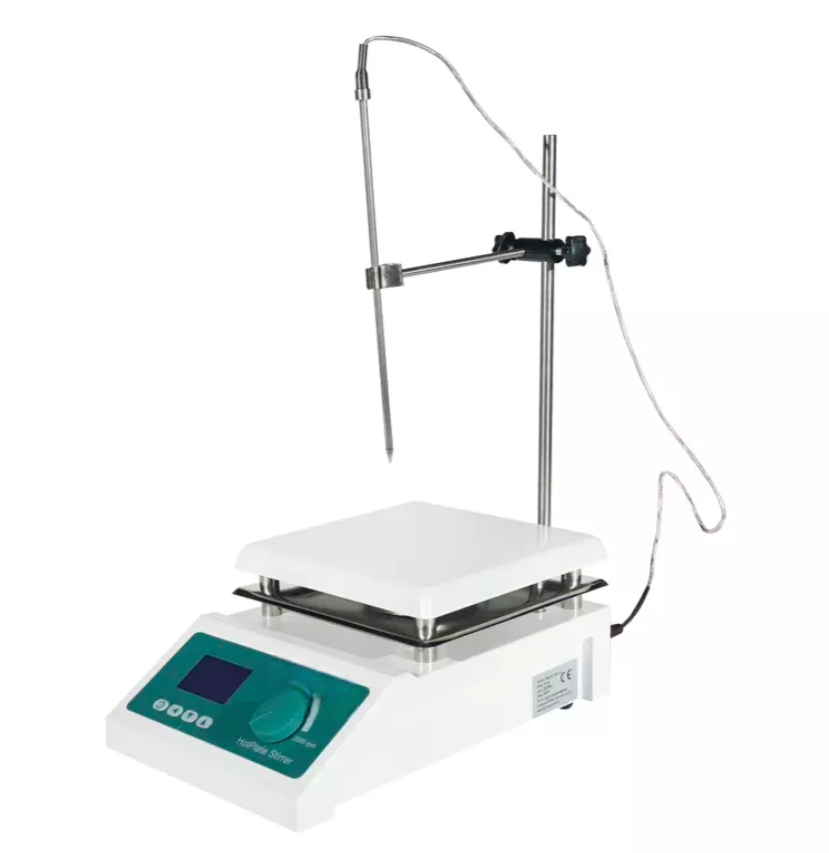

New digital model SMI-SH-II-4C Ceramic Magnetic Stirrer with the following function

  • Setting temperature precisely.
  • Precisely control temperature and speed adjustable, with speed switch to start or stop the stirring at any time.
  • Timing function (0-9999 min), audible and visual alarm.
  • Dual inside and outside sensors, the outside PT100 sensor for heated liquid. The inside K sensor for hot plate
  • One key to shift inside and outside the sensor.
  • Large screen LCD displays can indicate temperature, rotational speed and timing at the same time.
Enquire Now

Technical Data

Model SMI- SH-4A     SMI-SH-4B SMI-SH-4 SMI-SH-4C SMI-SH-II-4C
Mode Heating Stirring Heating + Stirring Digital+ Heating + Stirring




Function

 Max. Volume (ML) – 5000 5000 5000 5000
Speed (r.p.m) – 200 to 2000
Working time Continuous
Minimum revolution ( R.P.M.) – 200 200 200 200
Max. temp (℃） 380 – 380 350 350




Structure

 Exterior Iron plate welding, surface spraying
Heating plate

Ceramic Coated
Driving mode – Motor
Motor power (W) – 20 20 20 20
Heating power (kW) 0.6 – 0.6 0.6 0.6
  Stir bar no PTFE




Controller

 Continuous operation yes
Setting mode Scale Digital
Speed display mode Scale Digital Digital
Timer no yes
Operation function no yes
Sensor no PT100 PT100




Specification

 Exterior size (W X L X H) (mm) 320 X 190 X 125
Packing size (W X L X H) (mm) 390 X 240 X 230
Plate size (mm） 190 X 190
Plate load 10KG
Power supply (50/60Hz）Current rating 110V or 220V
NW/GW (kg）  5/6  5/6  5/6  5/6  5/6
