Black-Box Type UV Cabinet SMI-BBUV-6

Home Black-box Type UV Cabinet SMI-BBUV-6

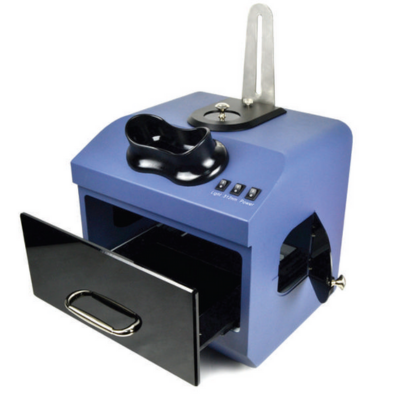

Black-Box Type UV Cabinet SMI-BBUV-6



JINDAL black-box-type UV cabinets can send out long- and short-wave UV light with high UV intensity, good stability, and easy operation. It’s reliable and popular among customers. Mainly used in scientific research, production, and other fields. Use is widely available in biochemistry, medicine, samples of DNA, RNA electrophoresis, gel observation analysis, detection of proteins, nucleotides, etc.

Latest Ergonomic Features:

  • The instrument has a 254 nm and 365 nm UV light source. Transmission of UV light requires 312 nm UV light bulbs to be arranged closely.
  • 312 nm wavelength has small damage to the sample with high sensitivity.
  • Fully enclosed in a high-quality metal black box. There is no need to operate in the darkroom. Convenient to use and simple to operate.
  • Equipment can be installed with a digital camera to shoot and take photos.
  • Drawer-type tables are convenient for taking samples. The left and right sides of the opening door are convenient for visual operation.

Technical Data:


  • Transmission Wavelength : 312nm,254 nm,365nm optional (standard configuration is 312nm)
  • Transmission Filter Size : 200 x 150mm
  • Observation Window Size : 140 x 60mm
  • Lamp Life : >5000h
  • Voltage : AC 220V / AC 110V, 50Hz
  • Power : 8W x 6
  • Dimension (W*D*H) : 350 x 315 x 520mm
  • Fuse : 250V, 1A, Ф5×20
  • Net Weight : 13Kg


Application :

It can be widely used in genetic engineering, molecular genetics, microbiology, biological products, animal husbandry, medicine and health, pharmaceutical drug research, and verification. It is also applicable to epidemic prevention departments, the food industry, the textile industry, the rubber oil prospecting industry, archaeological identification mark inspection, and counterfeit fake ticket verification. Applicable for the fluorescence analysis and verification department. It’s the necessary instrument to be engaged in modern scientific research departments and inspection supervision departments.

Product Brochure

Product Brochure Link here
