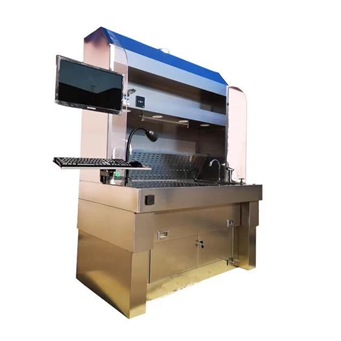

Jindal Grossing Stations are used for examining surgical specimens and therefore known as surgical pathology work stations. Built-in blowers sucks out the contaminated air and formalin vapours from the worktable.
Made with high grade Stainless Steel SS304, the continuous negative pressure of the workstation is maintained by high efficiency centrifugal blowers which suck all the contaminated air and the-formalin vapours. The bright LED light (integrated) illuminates the entire work area while an in-built UV Germicidal lamp is a standard feature of this worktable. The workstation is supplied with incorporating with magnifying glass, magnetic instrument holder, light with flexible arms, paper towel holder, Inch/Centimeter ruler, Polypropylene cutting board, Sink & Mixer tap for hot and cold water, sprinkler system, adjustable valve for bath sanitation located below the drilled working plates, perforated over table work plates, storage compartment under table, waste bin and a small weighing scale. Heavy duty commercial disposal trash masher is air cooled and runs continuously, thereby preventing the jamming of the drainage. To prevent the jamming of the drainage, a heavy duty commercial disposal trash masher is air-cooled and runs continuously.
The top is a detachable perforated countertop and the bottom is a discharge countertop.
The lower deck is equipped with a flushing device to flush the dirt from the countertops, allowing it to flow into the sink and pass through the waste processor before being discharged into the sewer.
A countertop automatic flushing device with a retractable and it designed for easy cleaning of countertop.
It designed with a foot control hot and cold water switch.
The height of the grossing table is electro hydraulically adjustable from 800mm to 1050mm. The height adjustment is activated by feather touch key buttons for UP & DOWN movement.
Iron and paint in the construction is eliminated for a more durable, longer-lasting finish.
All our workstations are supplied with factory-fitted exhaust duct work that can be connected to any in-house ventilation system. The unique Back-Draft ventilation in our system removes hazardous fumes, vapours and odours from the work area, so you get a safe working environment.
Work area sizes Available:
Any other custom built sizes can also be made on request.
The instrument is designed to operate on 220 V AC supply (Model with 110V also available).
