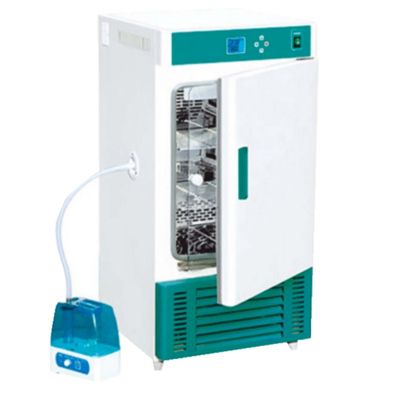

Mould Cultivation Cabinet

Home Mould Cultivation Cabinet

Mould Cultivation Cabinet

CLICK TO SCAN

Characteristics:

  • Unique internal wind circulation, fan breeze circulation
  • Large screen LCD intelligence PID, multi group data display on screen
  • The double door structure, with high quality glass easy to observe the samples, the outer door with magnetic strip, good sealing
  • The upgraded humidifying system has the advantages of small particles, good humidity uniformity and low water consumption
  • Constant temperature experiments and environmental tests for the need for humidity.

Bl model additional characteristics:

  • LCD display 30 stage programs control, ladder operation; Imported humidity sensor module, humidity automatic control, high precision
  • Loop self diagnosis, sensor fault alarm

Main Technical Data:

Model

SMI-MJX-70BIII

SMI-MJX-150BIII

SMI-MJX-250BIII

SMI-MJX-70BL

SMI-MJX-150BL

SMI-MJX-250BL

Cycle Mode

Forced convection

Function

Temp. range

No humidification:0~65;humidification:10 ~65

Temp. Resolution Ratio

0.1

Temp. Motion

High Temp.:±0.5Low Temp.:±1

Temp. Uniformity

±1

Humidity Range

50%~90%RH

Humidity Stability

±5%RH

Structure

Inner Chamber

Mirror Stainless Steel

Outer Shell

Cold rolling steel electrostatic spraying exterior

Insulation layer

Polyurethane

Heater

Stainless steel heater

Power rating

0.8kW

  1.0kW

 1.2kW

Compressor

Air cooled hermetic compressor

Cryogen

R134a

Defrost structure

Automatic control intelligent defrosting

Humidifying method

External

Test hole

Stainless steel inner diameter 50mm(one)

Controlled external
power supply

Universal socket (one)

Temp. setting mode

Touch button setting

Temp. display mode

Measuring temperature: LCD upper row;
 Setting temperature: the lower row

Humidity control mode

BIII model:Manual;BL model:Auto

Timer

BIII model:0~99.9h    BL model:0~99.9h×30 Segment

(with timing wait function)

Operation function

BIII model:Fixed value operation、timing function,auto stop.

BL model:Program operation

Sensor

PT100

Humidity sensor

BIII model:without;BL model:with

Additional function

BIII model: LED light, Deviation correction, Menu key lock,

Power failure parameter memory

BL model additional character:UV light, loop self diagnosis

Safety device

Over temperature alarm, mechanical temperature limiter

Specification

Inner Chamber size
(W*L*H) (mm)

420*350*500

500*500*600

600*500*840

Exterior size
(W*L*H) (mm)

580*610*1190

660*760*1290

760*760*1530

Packing size (W*L*H)

(mm)

708*716*1368

788*866*1468

888*866*1708

Volume

70L

150L

250L

Load per rack

15kg

Shelf number

9

12

18

Shelf space

35mm

Supply(50/60Hz)

Current rating

AC220V/2.3A

AC220V/3.6A

AC220V/5.5A

NW/GW (kg)

69/92

86/114

100/139

 Accessory

Shelf

2

Optional accessories

Shelf, Touch screen controller, RS485 interface, Printer, Recorder,

Remote control, Wireless SMS alarm, USB data storage



Product Brochure

Product Brochure Link here
