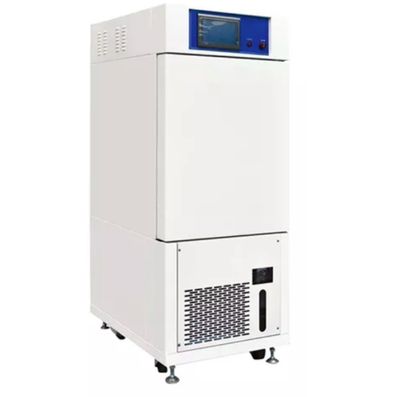

Medicine Stability Test Chamber SMI-140M

CLICK TO SCAN

Description

This equipment provides a long-time stable environment of temperature, humidity and illumination for the pharmaceutical industry medicine invalidation evaluation. It’s applied in the medicine accelerating test, growth test, high humidity test and high illuminance test.

Features:

  •  P.I.D accurate and reliable temperature and humidity control.
  •  Built-in fan to form air circulation and improve temperature uniformity inside the cabinet.
  • Built-in water tank and automatic water replenishment interface, when there is no humidification water, automatically disconnect the heated power.
  •  50 pcs programs for the pharmaceuticals application.
  • 600-day historical data USB export function.
  • Optional: printer, external temperature protection device
Enquire Now

Technical Data :

Model

SMI-140M-173

SMI-140M-288

SMI-140M-504

Display

7 inches LCD display

Capacity

173L

288L

504L

Temp. Range

-20~+65°C

Temp. Fluctuation

± 0.5°C

Temp. Uniformity

± 2°C

Humidity Control Range

40~95% RH

Humidity Fluctuation

±3% RH

Illumination Level

4500 Lux, 4 level adjustable,1-side illumination

Shelves

2 pcs adjustable

Timing Range

1~9999 min

Refrigeration System

R404a refrigerant CFC-free

Alarm

High or low temperature alarm, temperature and humidity probe damage alarm

Consumption

2100W

2600W

3500W

Power Supply

Standard: 220V±10%, 50/60Hz; Optional: 110V±10%, 60Hz

Chamber Size(W*D*H)

550*450*700mm

600*600*800mm

800*710*910mm

External Size (W*D*H)

700*842*1585mm

800*992*1685mm

1000*1072*1795mm

Packing Size(W*D*H)

810*1080*1780mm

950*1160*1940mm

1170*1460*2050mm

Gross Weight

138kg

168kg

250kg
