Environment Chamber (Humidity System) SMI-134

Home Environment Chamber>Environment Chamber (Humidity System) SMI-134

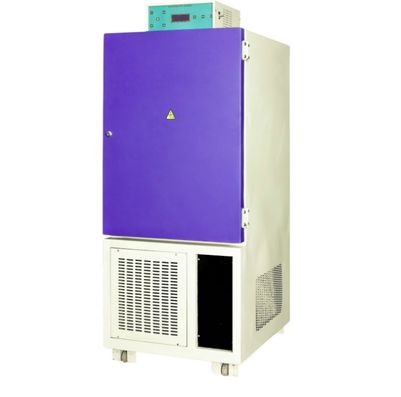

Environment Chamber (Humidity System) SMI-134



Jindal Environment chamber is elegantly designed double walled cabinet to provide controlled atmosphere by varying temp. and Humidity for conducting of various R & D tests as, Plant & Animal growth test, Determination of dielectric test, packed material vapor test, Insulation test of electrical component. The inner Chamber is made of stainless steel & the outer body is made of Mild steel sheet duly powder coated. A heavy aligned door with a provision of see through window with toughened glass door is also provided.

Temp. range from 5 to 60°C ± 2°C and Rel. humidity ambient to 95% ± 5% are controlled with a solid state digital controller cum indicator for displaying temp. & humidity in %age directly.

Finned heaters help to achieve the set temperature above ambient whereas the hermetically sealed air cooled refrigeration system maintains the temperature below ambient. Humidity is generated by natural mist through a spray system.

Size of inner chamber: –
  W   X  H   X  D
455 × 710 × 455 mm
605 × 605 × 605 mm
605 × 910 × 605 mm

Optional features:

  • Fully Automatic Microprocessor control
  • Internal log memory to store the error states history for temperature and humidity with time and date.
  • Remote machine monitoring and its operation through cell phones.
  • In-built serial Thermal printer (Both Text and graph mode).
  • Low/High Voltage detection & safety cut off feature.
  • Memory card log with 500MB memory.
  • Temperature profile control consisting of 40 or more ramps.
  • Touch screen control

Product Brochure

Product Brochure Link here
