Stackable Large Capacity CO2 Incubator Shaker SMI-132CIS-248L

Home ≫Co2 Incubator> Stackable Large Capacity CO2 Incubator Shaker SMI-132CIS-248L

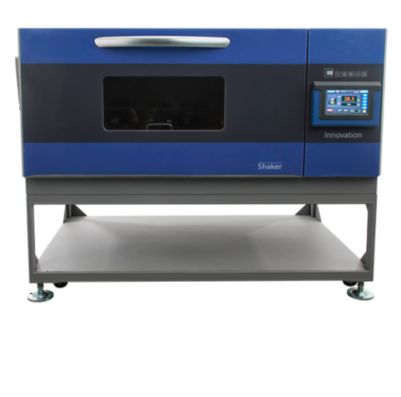

Stackable Large Capacity CO2 Incubator Shaker SMI-132CIS-248L

CLICK TO SCAN

Description

Jindal incubator shakers are the best choice for reliable, easy-to-use cultivation of cell cultures and microorganisms as well. The incubation shaker ensures uniform temperature, CO2 and humidity conditions and guarantees reproducible results, leaving nothing to be desired regarding its shaking features and usable capacity.

High performance

  • Microprocessor PID control
  • Automatic Calibration
  • Circulating fan adjustment
  • Programmable controller

Convenience

  • Intuitive LCD display
  • Easy-set digital timer
  • Continuous operation
  • Corrosion resistance
  • Various choice of accessories
Previous
Next
Enquire Now

Safety

  • Power interruption protection
  • Over-temperature protection
  • Temperature deviation alarm
  • Overcurrent protection

Features

  • 7 inch LCD touch control panel for easy and intuitive operation
  • Programs can be set up to set different temperature, speed, CO2 concentration, time and other vital culture parameters
  • Any parameters and historical data curves of the culture process can be viewed at any time
  • More precise temperature control with PT1000 temperature sensor
  • With water level monitoring and automatic water replenishment function (moisture control products)
  • Advanced temperature control technology without frost or temperature fluctuation.
  • Heatless waterproof fan ensures uniformity of temperature, CO2 concentration and humidity
  • The inner glass door design is used for excellent thermal insulation and safety
  • Door heating function effectively prevents condensation on the glass window
  • Five-level automatic defrost function
  • Level 4 password login function provides security for users in public labs to avoid stopping experiments in progress by accidental operation
  • 3 kinds of power-off mode selection function, power-off recovery, stop or restart
  • Intelligent remote control function for real-time view of machine operation status. SMS alarm function (optional)
  • Servo motor for more precise and stable control
  • Imported carbon dioxide Infrared (IR) sensor and humidity sensor for accurate CO2 and humidity level detection
  • With a carbon dioxide pressure stabilization system to prevent CO2 overshoot
  • With over temperature protection, leakage protection, door opening alarm, sensor alarm and other functions
  • With positive and negative control motor function
  • Machine operation is nearly silent, multi-layer stacked high-speed operation without abnormal vibration
  • All stainless steel rounded corners of the integrated cavity, can be directly cleaned with water, beautiful and easy to clean
  • UV sterilization module ensures that every corner of the chamber is effectively sterilized
  • Flexible placement, stackable, effective in saving lab space
  • Scalable RS-485 interface

Specifications

Model
SMI-132CIS-248-1TC (1 layer) , SMI-132CIS-248-2TC (2 layer) , SMI-132CIS-248-3TC (3 layer)
Number of overlays
1 layer, 2 layers, 3 layers
Shaking type
circle round
Rotation speed
25~300 RPM (10~300 Optional)
Speed control accuracy
±1 RPM
Amplitude
25
Temperature control accuracy
±0.1℃
Temperature control range
4~65℃
Temperature display resolution
0.1°C
Temperature uniformity (37℃)
≤0.5℃ (20~40℃, when cooling is turned on)
Anti-flush
Have
Humidity control (30-95% RH)
Saturated humidity (Standard)
Humidity fluctuation
Positive and negative 1.5%RH
CO2 control range
0~20%
CO2 control accuracy
0.10%
CO2 measurement principle
Infrared (IR) detection
CO2 supply
0.05~0.1MPa is recommended
Display method
7.0 inch LCD touch screen
Cooling power
500w (1 layer)
Heating power
1000w (1 layer)
Controller
P.I.D control
Standard configuration
Fixed fixture optional
Light intensity
N/A
Illumination
Yes
UV sterilization
Standard
Maximum expansion
Up to 3 units can be stacked
Shaker internal volume
250 liters
Tray size (W*D) mm
760mm x 460mm
Chamber size (W*D*H) mm
850mm*535mm*398mm
Dimensions (W*D*H) mm
1350mm×850mm×630mm(1 layer), 1350mm×850mm×1345mm(2 layer), 1350mm×850mm×1970mm(3 layer)
Product weight
260 Kg (1 layer), 520Kg (2 layer), 780 Kg (3 layer)
Power supply
AC220V±10%50-60HZ 16A (1 layer)
