Stackable Compact CO2 Incubator Shaker SMI-132CIS-158L

Home Co2 Incubator> Stackable Compact CO2 Incubator Shaker SMI-132CIS-158L

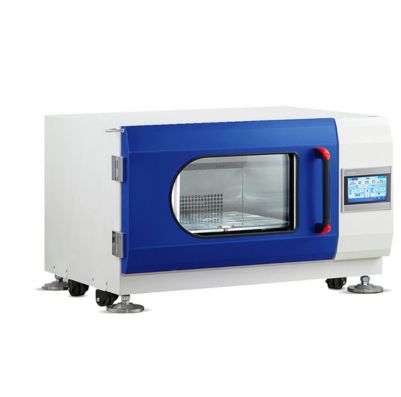

Stackable Compact CO2 Incubator Shaker SMI-132CIS-158L

CLICK TO SCAN

Description

Small-capacity carbon dioxide shaking incubator is an all-round shaking incubator launched by Jindal based on the different needs of customers. At present, this product integrates all the advantages of the company’s products. According to the special requirements of cell culture, more design features have been added, striving to provide a perfect solution for your cell culture.
SMI-132CIS-158L is suitable for all kinds of cell culture, including CHO, hybridoma, mammalian cells, insect cells, etc.

Features

  • 7-inch LCD touch screen, simple, intuitive and easy to operate.
  • Built-in light curtain, easy to push and pull, convenient for dark cultivation.
  • Meal can remote monitoring function of mobile phone, remote control operation, real-time viewing of machine running status (optional) take laminated glass door to ensure excellent heat insulation and safety.
  • The door heating function can effectively prevent the glass door from mildew and observe the cell culture at any time.
  • Multiple sterilization system, better sterilization effect.
  • Environmentally friendly private board materials create a comfortable working environment.
  • Brushed stainless steel arc angle integrated inner cavity, beautiful and easy to see in cleaning.
  • The machine runs almost silently, and there is no abnormal movement in multi-layer slow adding.
  • One-piece molding tool, stable and durable, effectively prevent unsafe incidents caused by tool breakage Method net humidification system, maintain wall temperature environment.
  • No heat and waterproof fan, ensuring the uniformity of temperature, CO concentration and humidity.
  • The push-pull 8mm thick saw alloy rocker will never be deformed, and it is easy to place the wall container.
  • Waterproof design of the internal cavity, easy to clean dirt.
  • The placement method is flexible and can be superimposed, effectively saving the placement space.

7 inch LCD touch control panel, simple and intuitive to operate

  •  7 inch touch panel is intuitive and easy to operate, so you can easily control the switch of a parameter and change its value without special training.
  •  30-stage programs (4 programs) can be set up to set different temperature, speed, CO2 concentration, time and other culture parameters, and the programs can be automatically and seamlessly switched between; any parameters and historical data curves of the culture process can be viewed at any time.
  •  Perfect appearance, monitor interface shows temperature, speed and CO2 concentration. With the enlarged digital display and clear symbols on the monitor, you can observe from a greater distance.
  •  The ability to set a password for unlocking the screen controls provides security for users in public labs to avoid stopping experiments in progress by accidental operation.

Active humidity control function (optional) can control humidity up to 85% r.h. Micro-culture liquid volatilization can be controlled within 10% for one week

  • RADOBIO’s embedded humidification and humidity control module, using precise temperature control of the stainless steel heating plate humidification, can ensure stable and reliable humidity control to avoid the disadvantages of traditional ultrasonic humidification methods to the maximum extent.

  • If humidification is needed, the control water inlet solenoid valve will automatically open, and the high-temperature heating plate will vaporize water into molecular water vapor quickly while sterilizing and use its own volume expansion to enter the incubator, which will quickly spread to the whole incubator chamber with the internal circulation system of the incubator.

  • As the high-temperature liquid water is all vaporized into free molecular water, the water vapor is not easy to condense in the incubator and can achieve the best humidification effect. To avoid the traditional ultrasonic humidification, water vapor is easy to secondary condensation drawbacks.

  • high-temperature humidification and sterilization at the same time to avoid the traditional humidification easily in the water tank and the growth of miscellaneous bacteria, thus causing the disadvantages of bacterial contamination.

Built-in blackout curtain can be pushed and pulled easily to avoid light cultivation

  • For light-sensitive media or organisms, the shade can be pulled up for cultivation. The sliding blackout curtain prevents sunlight (UV radiation) from entering the interior of the incubator while retaining the convenience of viewing the interior of the incubator.
  • The blackout curtain is positioned between the glass window and the outer chamber panel, making it convenient and aesthetically pleasing and perfectly solving the inconvenience of applying tin foil.
  • Intelligent remote control allows you to control the parameters of the incubator more easily.
  • Double glazed interior and exterior safety doors for excellent thermal insulation.

  • Door heating function effectively prevents condensation on the glass window, allowing good observation of the shaker when the temperature difference between the inside and outside is large.

  • Multiple UV sterilization units ensure that every corner of the chamber is effectively sterilized, and the UV sterilization unit can be opened during rest periods.

Environmentally friendly, odor-free sticky pad material for a comfortable working environment

Environmentally friendly and odorless sticky pad, can directly fix various sizes of culture flasks on the tray without the use of clamps, and easy to clean. Easy to operate and increase space utilization. When the sticky pad has dirt attached to the surface after a period of time, it can be cleaned with water and reused; water spilled on the surface of the sticky pad will not affect the stickiness and can be used normally.

All stainless steel rounded corners of the integrated cavity, can be directly cleaned with water, beautiful and easy to clean

  • Waterproof design of the incubator body, all water or mist sensitive parts including drive motors and electronic components are placed outside the incubator body, so the incubator can be cultivated in high temperature and high humidity environment.

  •  Any accidental breakage of flasks during incubation will not cause damage to the incubator, the bottom of the chamber can be cleaned directly with water, or the chamber can be thoroughly cleaned with cleaners and sterilizers to ensure a sterile environment inside the chamber.

Machine operation is nearly silent, multi-layer stacked high-speed operation without abnormal vibration

  • Stable start-up with unique bearing technology, almost noiseless operation, no abnormal vibration even when multiple layers are stacked.
  • Quiet and stable machine operation, longer service life.
  • Compared with traditional fans, the heatless waterproof fan can make the temperature in the chamber more uniform and stable, while effectively reducing the background heat, which can effectively save energy consumption.
  •  8mm thick aluminum tray is lighter and sturdier, beautiful and easy to clean.
  • Push-pull design allows for easy placement of culture flasks at specific heights and spaces.

Flexible placement, stackable, effective in saving lab space

  • Can be used as a single layer on the floor or on the table, or as a double or triple stack, and the top pallet can be pulled out to a height of only 1.3 meter from the floor when used as a triple stack, which can be easily operated by laboratory personnel.
  • A system that grows with the task, easily stacking up to three tiers without adding more floor space when the incubation capacity is no longer sufficient, and without further installation. Each incubator shaker in the stack operates independently, providing different environmental conditions for incubation.

Multi-safety design for user and sample safety

  • Optimized PID parameter settings that do not cause temperature overshoot during temperature rise and fall.
  •  Fully optimized oscillation system and balancing system to ensure that no other unwanted vibrations occur during high speed oscillation.
  •  After an accidental power failure, the shaker will remember the user’s settings and automatically start up according to the original settings when the power comes back on, and will automatically prompt the user of the accidental situation that occurred.
  • If the user opens the door during operation, the shaker oscillating tray will automatically stop rotating flexibly until it stops oscillating completely, and when the door is closed, the shaker oscillating tray will automatically start flexibly until it reaches the preset oscillating speed, so there will be no unsafe events caused by sudden speed increase.
  •  When a parameter deviates far from the set value, the sound and light alarm system is automatically turned on.
  •  Data export USB port on the side for easy export of backup data, convenient and safe data storage.

Specifications

Model
SMI-132CIS-158L
Quantity
1 unit (1 layer)
Control interface
7.0 inch LED touch operation screen
Rotation speed
2~300rpm depending on load and stacking
Speed control accuracy
1rpm
Shaking throw
50mm (Customization is available)
Temperature control mode
PID control mode
Temperature control range
4°C~60°C
Temperature display resolution
0.1°C
Temperature fluctuation
±0.1°C
Temperature field uniformity
±0.3°C @37°C
Heating power
550W
Cooling power
250W
Tray size
510 x 410mm
Internal usable height
340mm
Maximum load
35kg
Tray capacity of shake flask
35x250ml or 24x500ml or 15x1000ml or 8x2000ml or 6x3000ml or 4x5000ml (choose sticky pad, the load capacity will increase by about 10%)
Timing function
0-999.9hours
Maximum expansion
Up to 3 units can be stacked
Dimension (W x D x H)
L1000 x W790 x H625mm (one unit); L1000 x W790 x H1180mm (two units); L1000 x W790 x H1730mm (three units)
Volume
160L
Illumination
FI tube,30W
CO2 measurement principle
Infrared (IR) detection
CO2 control range
0-20%
CO2 display resolution
0.10%
CO2 supply
0.05~0.1MPa is recommended
Sterilization method
UV sterilization
Number of settable programs
4
Number of stages per program
30
Data export interface
USB interface
Historical data storage
800,000 messages
Working environment temperature
5°C~ 35°C
Push-pull blackout curtain
build-in
Power supply
115V~230V±10%, 50~60Hz
Weight
145kg per unit
