Co₂ Incubator SMI-132CX

Home Co2 Incubator> Co₂ Incubator SMI-132CX

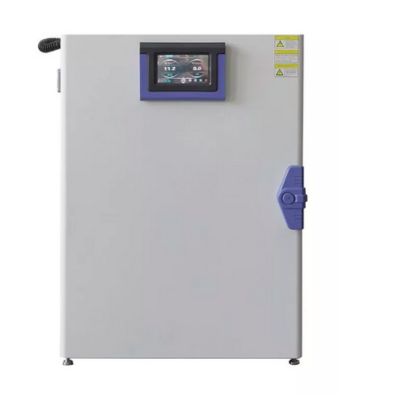

Co₂ Incubator SMI-132CX

CLICK TO SCAN

Description

The JindalCO2 incubator plays an important role in maintaining a stable temperature, pH level, humidity, and sterility. It provides you with unsurpassed natural simulation to ensure optimum growth conditions for your cell culture at all times.
Compared with the other incubators, Jindal is equipped with an extra HEPA filter to keep the chamber at ISO Class 5 cleanliness, offering top-notch protection that can withstand the test of time to securely culture your precious cells.
We understand that every lab requires different specifications and offers a variety of options, from air/water jacked to 90 °C moist heat decontamination, UV sterilization, etc., for customers to choose from.

  • Optimum temperature control
  • Two internal recirculating HEPA filters
  • 90℃ moist heat decontamination
  • CARBOCAP drift free IR sensor
  • Internal integral chamber made of SS304
  • Intelligent interface for intuitive operation
  • Heated inner glass door prevent condensation formation

Features

  • 7-inch intuitive colorful touch screen for easy operation
  • 90℃ moist heat decontamination cycle has been proven in deactivating normally resistant microorganism
  • Fast temperature, CO2, and humidity recovery without overshoot.
  • CARBOCAP® drift free IR sensor responds extremely fast to CO2 concentration change.
  • Best CO2 and temperature uniformity inside the chamber compared with other suppliers
  • Patented and unique design of two HEPA filters to keep the chamber at ISO Class 5 cleanliness.
  • Blower automatically stops when the door is opened, to minimize mixing of chamber and room air
  • Air flows gently around culture plates, causing no disturbance to cell culture.
  • Direct heating for glass door preventing the condensation and possible contamination
  • With automatic zero calibration function
  • Ductwork,plenums,and shelves are removable without tools
  • Door switch monitoring function
  • Automatic gas cylinder switchover system

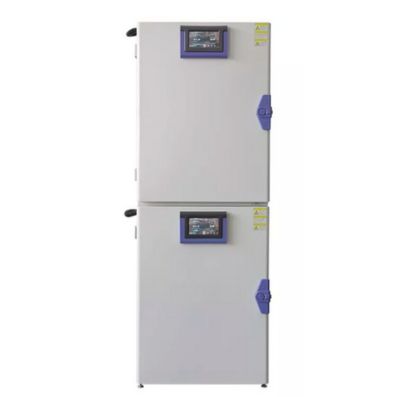

  • Stackable design to save your valuable lab space
  • Humidity display to safely monitor the humidifying process
  • Intelligent data and event logger records all incubator parameters for on-screen call
  • Level 4 password function, including visitor,operator, administrator and senior administrator
  • Three power-off mode selection: power-off recovery,stop and restart
  • Comprehensive user-configurable alarms for all parameters
  • Curve display function, real-time data and historical data printing function
  • RS232 and RS485 communication interface

Specifications

Model
SMI-132CX-185MH
SMI-132CX-185UV
SMI-132CX-185WI
Control interface
7 inch LCD touch screen
7 inch LCD touch screen
7 inch LCD touch screen
Temperature control mode
PID control mode
PID control mode
PID control mode
Temperature control range
Ambient +5°C~60°C
Ambient +5°C~60°C
Ambient +5°C~60°C
Temperature display resolution
0.1°C
0.1°C
0.1°C
Temperature stability
±0.1°C
±0.1°C
±0.1°C
Temperature field uniformity
±0.4°C
±0.4°C
±0.4°C
Heating power
800W
800W
800W
Timing function
0-999.9hours
Internal Dimensions
L540 x W510 x H680mm
L540 x W510 x H680mm
L540 x W510 x H680mm
Dimension
L710 x W695 x H985mm
L710 x W695 x H985mm
L710 x W695 x H985mm
Volume
185L
185L
185L
CO2 measurement principle
Infrared (IR) detection
Infrared (IR) detection
Infrared (IR) detection
CO2 control range
0-20%
0-20%
0-20%
CO2 display resolution
0.001
0.001
0.001
CO2 supply
0.05~0.1MPa is recommended
0.05~0.1MPa is recommended
0.05~0.1MPa is recommended
Relative Humidity
Ambient humidity ~92% ±3%
Ambient humidity ~92% ±3%
Ambient humidity ~92% ±3%
HEPA filtration
ISO 5 level, 5 minutes
ISO 5 level, 5 minutes
ISO 5 level, 5 minutes
Sterilization method
90°C High temperature and humidity
Ultraviolet lamp
Alcohol wipe
HEPA filter quantity
2
2
2
Microbe HEPA filter quantity
1
1
1
Working environment temperature
5°C~ 35°C
5°C~ 35°C
5°C~ 35°C
Power supply
AC 220VV±10%, 50Hz/80Hz
AC 220VV±10%, 50Hz/80Hz
AC 220VV±10%, 50Hz/80Hz
Weight
150Kg
150Kg
165Kg

Product Brochure

Product Brochure Link here
