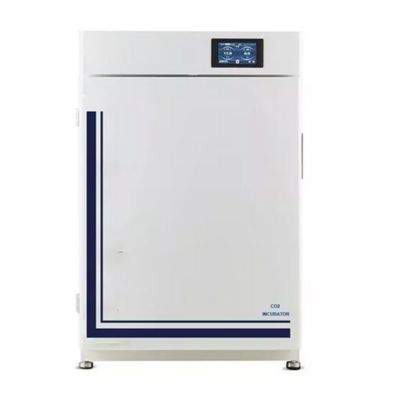

Co₂ Incubator SMI-132CP

Home Co2 Incubator> Co₂ Incubator SMI-132CP

Co₂ Incubator SMI-132CP

CLICK TO SCAN

Description

Cell culture is one of the vital procedures in a life sciences laboratory. A major concern in this field is the existence of contaminants. Jindal CO2 incubators are optimized for high-value samples, including hard-to-grow and contamination-sensitive media and reagents.
Jindal series CO2 incubators adopt a 180°C/140°C dry heat sterilization system proven effective in killing normally resistant fungi, bacterial spores, and vegetative cells that may contaminate the workspace. This sterilization cycle is more convenient as it eliminates the need to remove chamber components during sterilization. Our incubators with touchscreen control panels deliver superior usability, rapid cleaning, and effortless maintenance while keeping the tradition of outstanding environmental stability and precise performance.
Jindal CO2 incubators with high heat sterilization have more design configurations suitable to meet the demands of every cell culture laboratory. 80 liters, 180 liters, and 240 liters of different capacities are compliant with most of the user’s needs, including neuroscience, stem cell research, in vitro fertilization, tissue engineering, cancer research, and mammalian cell research.

  • 6-side direct heat air jacketed incubator
  • 140℃ high heat sterilization
  • Active airflow technology
  • HEPA filter to keep air quality inside chamber

Features

  • 5-inch intuitive colorful and bright LCD touch screen
  • 140℃/180℃ dry heat sterilization cycle offers simplified decontamination protocols to protect your valuable cultures
  • A reliable air jacketed heating system combined with PT1000 temperature sensors
  • Fast temperature, CO2, and humidity recovery without overshoot
  • CARBOCAP® drift free IR sensor ensure a fast respond and accurate CO2 monitoring
  • In-chamber fan gently and evenly distributes clean, humidified air throughout the chamber
  • Best CO2 and temperature uniformity inside the chamber compared with other suppliers
  • Entire chamber air volume is filtered by the HEPA filter to achieve ISO class 5 cleanliness
  • Blower automatically stops when the door is opened, to minimize mixing of chamber and room air
  • Front door heating preventing the condensation formed in the inner glass door and possible contamination
  • Unique, seamless,deep-drawn interior chamber reduces any areas where contamination could accumulate
  • Easy-to-clean, coved corner interior with convenient access port
  • No special tools required for assembly and disassembly of interior components.
  • All gas injection lines are filtered via HEPA filter to remove impurities and contaminants before being injected
  • Door switch monitoring function
  • Filtered air circulates across the 304 stainless steel humidity pan to accelerate the humidifying process.
  • Intelligent data and event logger records all incubator parameters for on-screen call
  • Comprehensive user-configurable alarms for all parameters
  • RS232/RS485 communication interface
  • Stackable design to save your valuable lab space
  •

Specifications

Model
SMI-132CP-78
SMI-132CP-178
SMI-132CP-248
Control interface
5 inch LCD touch screen
5 inch LCD touch screen
5 inch LCD touch screen
Temperature control mode
PID control mode
PID control mode
PID control mode
Temperature control range
Ambient +5°C~60°C
Ambient +5°C~60°C
Ambient +5°C~60°C
Temperature display resolution
0.1°C
0.1°C
0.1°C
Temperature stability
±0.1°C
±0.1°C
±0.1°C
Temperature field uniformity
±0.3°C @37°C
±0.3°C @37°C
±0.3°C @37°C
Heating power
500W
900W
1000W
Timing function
0-999.9hours
Internal Dimensions
L440 x W400 x H500mm
L541 x W508 x H681mm
L630 x W600 x H670mm
Dimension
L560 x W530 x H825mm
L660 x W640 x H1000mm
L800 x W660 x H1000mm
Volume
85L
185L
248L
CO2 measurement principle
Infrared (IR) detection
Infrared (IR) detection
Infrared (IR) detection
CO2 control range
0-20%
0-20%
0-20%
CO2 display resolution
0.10%
0.10%
0.10%
CO2 supply
0.05~0.1MPa is recommended
0.05~0.1MPa is recommended
0.05~0.1MPa is recommended
Relative Humidity
Ambient humidity ~95% at 37°C
Ambient humidity ~95% at 37°C
Ambient humidity ~95% at 37°C
HEPA filtration
ISO 5 level, 5 minutes
ISO 5 level, 5 minutes
ISO 5 level, 5 minutes
Sterilization method
140°C High heat sterilization
140°C High heat sterilization
140°C High heat sterilization
Temperature recovery time
≤10 min
≤10 min
≤10 min
CO2 concentration recovery time
≤5 min
≤5 min
≤5 min
Historical data storage
250,000 messages
250,000 messages
250,000 messages
Data export interface
USB interface
USB interface
USB interface
Scalability
Up to 2 units can be stacked
Up to 2 units can be stacked
Up to 2 units can be stacked
Working environment temperature
10°C~ 30°C
10°C~ 30°C
10°C~ 30°C
Power supply
115V~230V±10%, 50~60Hz
115V~230V±10%, 50~60Hz
115V~230V±10%, 50~60Hz
Weight
68kg
108kg
116kg
