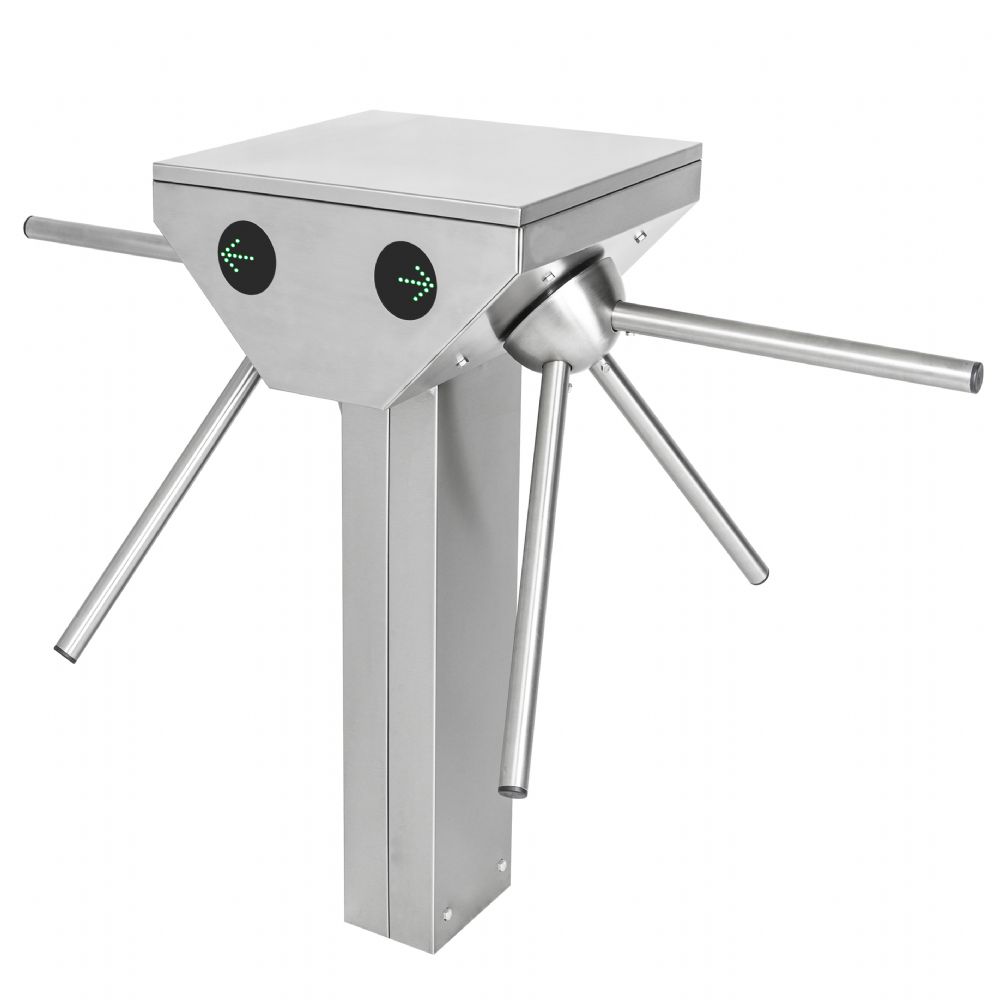

Tripod Waist Turnstile SMI-TWT66



It is a single-legged, double-waist-high turnstile designed for efficiently managing large groups, including personnel, visitors, or customers, at various social places such as the metro, plaza, factory, prison, buffet restaurant, public VC entrances, etc. (SMI-TWT66). Easy passage can be made from both directions with the help of an independent twin mechanism. As the most economical waist-high turnstile in the market, the SMI-TWT66 can operate for many years indoors and outdoors. It boasts a stylish and modern appearance with laser-cut stainless steel lines, and it can be easily installed with the hidden installation kit integrated into the leg. The SMI-TWT66 provides a stylish and economical solution for greeting and organizing visitors, maintaining control, and keeping records.

Standard Equipment and Specification

POWER: 220 VAC, 50/60 Hz; Optional 110 VAC

Power Consumption: Maximum 25 Watts, Minimum 10 Watts

INDICATOR: The LED indicator glass is designed to be perfectly flush with the chassis surface; it expresses the passage control of the system. The LED indicator is offered as standard in all of the JINDAL LED indicator turnstile models, and it can also be manufactured in different styles on demand.

Control: There is a dry contact output in the direction of passage; this contact can easily connect to 12VDC, 24VDC, or various access control units and other peripheral devices to trigger passage. Additionally, the direction choice can be easily set by users using the dip switches on the card. The turnstile allows passage in both directions in case of a power cut, which is a legal obligation. A counter-system cannot be offered without a written and officially signed demand from the customer. Furthermore, there is an extra contact input for emergencies such as fire, earthquake, etc. All solenoid and LED indicators are long-lasting semiconductors, and a buzzer on the control cart signals when passage authorization is received. The buzzer can be deactivated by the dip switch on the card upon demand.

EMERGENCY: There is an emergency contact input on the turnstile mainboard; emergency systems such as fire and earthquake can easily be connected to this input. So in case of emergency, the indicator will light up green, and the turnstile will set itself to allow free passage in both directions.

CHASSIS: The whole turnstile chassis is manufactured from AISI 304-quality stainless steel as standard. It can be manufactured as electrostatically painted D.K.P. material on demand, and multiple color options are offered.

EXTERNAL MECHANICS: The half-globe head unit and arms called External Mechanics as a whole are manufactured from AISI 304-quality stainless steel as standard.

ARM MEASUREMENTS: 7 mm in diameter and 440 mm in length are offered as standard; they might be changed on demand.

MECHANISM: It operates with an electromechanical motor system, allowing one person to pass with a 120-degree movement. Return is not permitted after a 30-degree movement, and a specially designed solenoid coil system locks after every 120-degree movement. The turnstile incorporates a hydraulic absorber for a soft and quiet passage during the 120-degree damping. The new design includes numerous parts moving on bearings, resulting in 60% less friction. With a half-globe head unit and arms manufactured from specially produced solenoid coils, along with a high-quality stainless chrome steel shock absorber, it is a long-lasting product.
