Medical Clean Bench SMI-156MCB

Home ≫ Clean Air> Medical Clean Bench SMI-156MCB

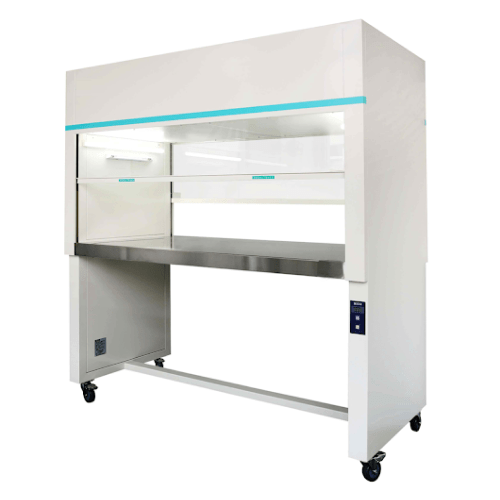

Medical Clean Bench SMI-156MCB

CLICK TO SCAN

Description

  • Digital display interface, soft touch key operation, air velocity 3 level adjust, and display the status of the fan, lighting and UV.
  • Set the UV lamp reservation on and off, display fan, UV lamp, filter cumulative running time.
  •  Integrative stainless steel working tables corrosion-resistant, easy to clean.
  •  Front window adopts hanging lifting system.
  • High grade steel with static powder coating, well corrosion resistant ability, inhibiting bacterial growth effectively.
  • Streamline shape decrease interference of airflow.
  •  High quality swivel caster with break easy to move and fixation.
  •  Humanized pre-filters design make customers more convenient to change and clean.
  •  Interlocking lighting and sterilization systems, with spare sockets design, short circuit protection, safe and convenient to use.
  •  Single/Double side operate, One/Two operator are optional.
  •  Every clean bench is tested individually in according with international standard at factory for safety and performance.
Enquire Now

Technical Data

Model/Item
SMI-156MCB-01
SMI-156MCB-02
SMI-156MCB-03
SMI-156MCB-04
Cleanliness
ISO CLASS 5
Air velocity
≥0.3 m/s (59.1fpm) (adjustable)
Noise
≤62 dB(A)
Illumination
≥300 Lx
Power supply
AC220V, 1φ, 50Hz
Consumption*
250 w
500 w
250 w
500 w
Weight
130 kg
170 kg
130 kg
170 Kg
Work Dimension (W1XD1XH1)
870 x 690 x 520 mm (34.3” x 27.2” x 20.5”)
1360 x 690 x 520 mm (53.5” x 27.2” x 20.5”)
870 x 690 x 520 mm (34.3” x 27.2” x 20.5”)
1360 x 690 x 520 mm (53.5” x 27.2” x 20.5”)
Size & No. HEPA Filter
820 x 600 x 50 x 1 set (32.3” x 23.6” x 2.0” x 1 set)
610 x 610 x 50 x 2 sets (24.0” x 24.0” x 2.0” x 2 sets)
820 x 600 x 50 x 1 set (32.3” x 23.6” x 2.0” x 1 set)
610 x 610 x 50 x 2 sets (24.0” x 24.0” x 2.0” x 2 sets)
Light
7 w x 1 pc
7 w x 2 pcs
7 w x 1 pc
7 w x 2 pcs
UV Light (optional)
8 w x 1 pc
8 w x 2 pcs
8 w x 1 pc
8 w x 2 pcs
No. of Colony
≤0.5cfu/Dish*0.5h
Materials
Working table: All-in-one Stainless Steel, Outside cabinet: high grade steel and lacquered in ivory.
Overall Dim. (WXDXH)
1010 x 750 x 1600 mm (39.8” x 29.5” x 63.0”)
1500 x 750 x 1600 mm (59.1” x 29.5” x 63.0”)
1010 x 730 x 1600 mm (39.8” x 28.7” x 63.0”)
1500 x 730 x 1600 mm (59.1” x 28.7” x 63.0”)
Mode of Operation
single people/double side
double people/single side
single people/double side
double people/single side
