S.M. Scientific Instruments (P) LTD

HHS Exclusive Clean Bench SMI-156CB-HHS

Home ≫ Clean Air> HHS Exclusive Clean Bench SMI-156CB-HHS

HHS Exclusive Clean Bench SMI-156CB-HHS

CLICK TO SCAN

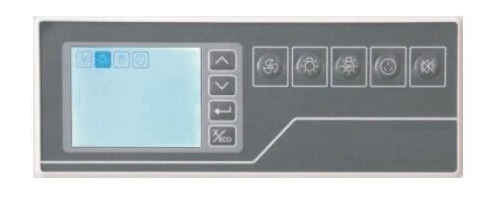

Friendly Control Panel

  • Color HD LED display, soft button control.
  •  Showing time, air velocity, temperature and HEPA filter life on screen in real time.
  • Operator can make an appointment for the fan and UV light.

User Friendly  design

  •  5°sloped front, nice shape, relieving the sense of repression.

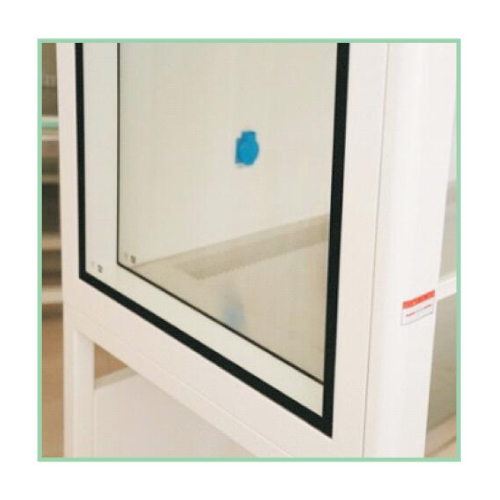

  •  Double layer side window, wide vision, convenient to observe.
  •  Integrative stainless steel working table design, easy to clean.
  •  Circular-Arc armrest, reducing fatigue.
  •  Detached Support, easy to assemble and carry.

Safe and Reliable, Energy-Efficient

  •  It will test by itself when turning on.
  •  ECO mode can reduce energy consumption.
  •  Alarm system for fan , temperature,HEPA filter life.
  •  Light, UV light and front window are interlocked.
  •  The clean air cover all the working area.
  •  The anti UV glass is safe and reliable.

Technical Data

Model/Item
HHS-1000
HHS-1300
HHS-1600
HHS-1800
Cleanliness
ISO CLASS 5
Air velocity
0.26~0.38 m/s (55.1~70.9fpm)(adjustable)
Noise
≤65 dB(A)
Illumination
≥650 Lx
Power supply
AC220V, 1φ, 50Hz
Consumption*
300 w
600 w
600 w
600 w
Weight
140 Kg
175 Kg
200 Kg
210 Kg
Work Dimension (W1XD1XH1)
1000 x 560 x 720 mm (39.4” x 22.0” x 28.3”)
1300 x 560 x 720 mm (51.2” x 22.0” x 28.3”)
1600 x 560 x 720 mm (63.0′ x 22.0′ ‘x 28.3”)
1800 x 560 x 720 mm (70.9” x 22.0” x 28.3”)
Size & No. HEPA Filter
990 x 680 x 69 mm x1 set (39.0” x 26.8” x 2.7” x1 set)
645 x 680 x 69 mm x2 sets (25.4” x 26.8” x 2.7” x2 sets)
795 x 680 x 69 mm x2 sets (31.3” x 26.8” x 2.7” x2 sets)
895 x 680 x 69 mm x2 sets (35.2” x 26.8” x 2.7” x2 sets)
Light
LED 15w x1 pc
LED 24.5w x1 pc
LED 31w x 1 pc
LED 36w x 1 pc
UV Light (optional)
18w x 1 pc
30w x 1 pc
36w x 1 pc
36w x 1 pc
Materials
Working table: All-in-one Stainless Steel, Outside cabinet: high grade steel and lacquered in ivory
Optional: working area all ss304
Overall Dim. (WXDXH)
1080 x 785 x 1820 mm (42.5” x 30.9” x 71.7”)
1380 x 785 x 1820 mm (54.3” x 30.9” x 71.7”)
1680 x 785 x 1820 mm (66.1” x 30.9” x 71.7”)
1880 x 785 x 1820 mm (74.0” x 30.9” x 71.7”)
Mode of Operation
single people/single side
double people/single side

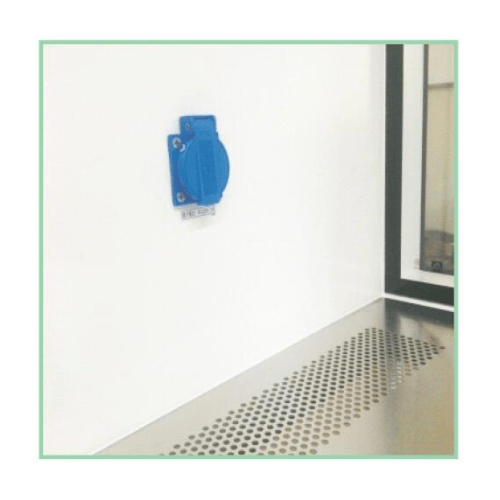

 not including spare socket, the capacity of each unit is 3A, each clean bench with 2 spare sockets.
