Fume Hood (Standard Design) SMI-160

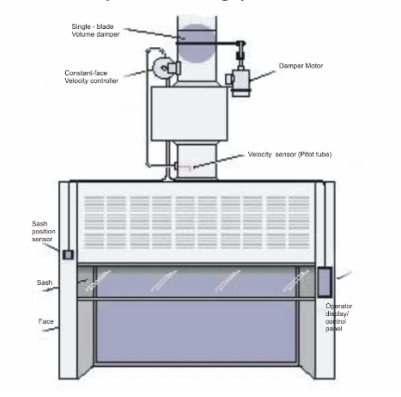

The fume hood is an important safety device in any laboratory. Fume Hoods are recommended for exhaust from the hood working area, of gases, vapour, toxic particles, odour to improve working environment of people who regularly handle toxic substances. These reduce personal exposures and odour level in the laboratory. These are designed to exhaust toxic or otherwise harmful vapours etc., for protecting laboratory personnel & equipment’s. A motor-blower exhaust system generates negative pressure within the hood, extracting the contaminated air from the work area and expelling it into the atmosphere and preventing the fumes from escaping into the room. These are recommended for various laboratories like Bio-Chemistry, Pharmaceutical units, printed circuit etching/cleaning etc. These are capable of handling corrosive fumes of sulphuric and hydrochloric acids etc. If work-area walls are lead-lined (Optional), it can be effectively used for Radio-Isotopic applications.


The main body of the fume hood is made of Mild Steel. The working table top is of stainless steel sheet. A small S.S. Sink, water tap and connections for inlet and outlet of water are a standard feature. A sliding door made of acrylic, moves vertically up/down with counter balanced weight operated by steel rope. The unit is fitted with fluorescent light & a gas cock for gas/air supply. Two/Three drawers & storage compartments are provided under the working table. The front facing panel is fitted with 15/5 Amp. socket with switches for exhaust system and fluorescent tubes.

Motor & Blower Assembly:-

An exhaust centrifugal fan of 0.75 HP, 1440 RPM (Crompton) is installed at the top to throw out the toxic fumes.

Working Table Size:-

  •   4’ × 2.5’ × 2′
  •   6’ x 2.5’ x 2′
  •   5’ x 3’ x 2′

Other sizes can be manufactured as per Lab Design

Power Requirement: – The instrument is able to work on 220V AC Supply.

Optional Accessories: –

  PVC Fume Duct (Per Running Ft.)
• Teflon Lining on the workbench (Per Sq. Ft.)
• FRP Lining on inner walls (Per Sq. Ft.)
• Working table top fitted with acid/alkali resistant tiles/FRP lining
