Fume Hood (New Modular Design) SMI-160NMD

Home ≫ Clean Air> Fume Hood (New Modular Design) SMI-160NMD

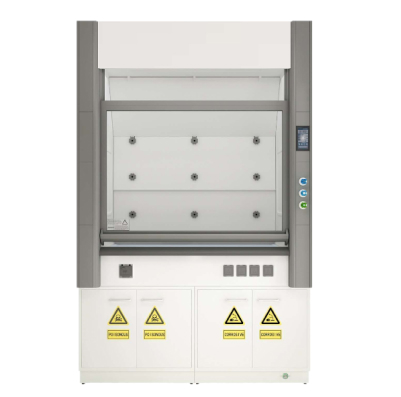

Fume Hood (New Modular Design) SMI-160NMD

CLICK TO SCAN

Description

  • Bypass-type incorporation along with CAV system
  • Main structure by cold-rolled steel 1.2mm, Epoxy Resin painting on surface
  • Chamber and Baffle constructed of non-flammable, acid resistant material or ceramic lining
  • Sash: 6mm double layer of Laminated glass
  •  2 Nos. of base Storage Cabinet or  Chemical Safety Cabinet
  • Side column and Sash made of Aluminum Ally in Industrial Grade

Airflow Velocity: 0.3m/s

Standard:  Designed, Produced and Installed as per ASHRAE 110-2016、EN 14175-3 2019

Technical Data

Model/Item
SMI-160NMD-01
SMI-160NMD-02
SMI-160NMD-03
Airflow Velocity
0.3m/s
External Dimension(L*D*H)
1200*900*2350mm
1500*900*2350mm
1800*900*2350mm
Working Width
920mm
1220mm
1520mm
Sash Opening Height
>720mm
Internal Height
1200mm
Internal Depth
650mm
Exhaust outlet Diameter
250mm
Center Distance
205mm
Lifting Stroke(mm)
About 330 mm
Lighting Area
>500 LUX
Worktop
Epoxy resin32/ 25mm, Ceramic
Options
VAV, CAV
Accessories
1 No. of Water outlet and Water Valve
1 No. of PP Sink with PP Trap
4 Nos. of British Standard Socket,10A
1 set of Control Panel
