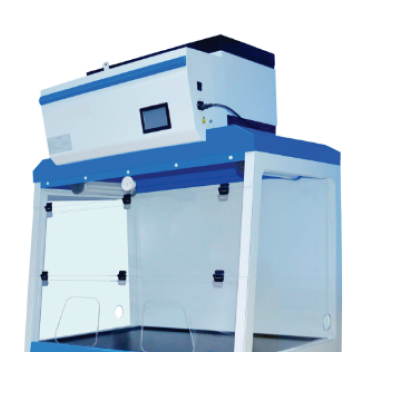

DUCTLESS FUME HOOD SMI-160DL

Home ≫ Clean Air> DUCTLESS FUME HOOD SMI-160DL

CLICK TO SCAN

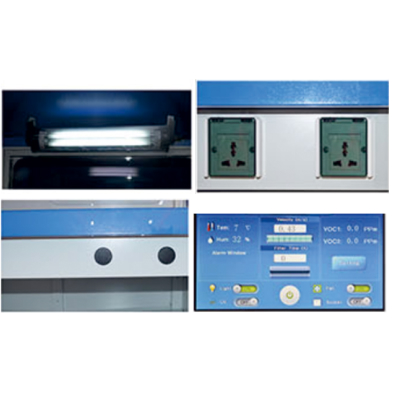

LCD Touch screen control panel, easy to operate
With memory function in case of power-failure
8°slope front ergonomics design, fatigue-free working posture
Temperature and humidity sensors, can detect indoor temperature and humidity
Three side transparent Acrylic windows, front window reversal design, easy to operate
Double-layers structure: 1mm sheet metal surface; Chemical resistant phenolic resin work table
Electronic control system, anti-overload, anti-electric shock, stable performance, long service life
Inside and outside probe, detect indoor air pollution and filter conditions. Audible and visual alarm for changing filter

Model No.	SMI-160DL-1000	SMI-160DL-1200	SMI-160DL-1500	SMI-160DL-1800
External Size(WXDXH)mm	10008802140mm	12008802140mm	15009402140mm	18009402140mm
Internal Size(WXDXH)mm	910690740mm	1110690740mm	1410690740mm	1710690740mm
Work Surface Height	900mm
Max. Opening	650mm
Air Velocity	0.25~0.35m/s
Airflow Volume	105m3/h		325m3/h	415m3/h
Noise	≤55dB(A)
Fluorescent Lamp	16W*2		16W*3
UV Lamp	Emission of 253.7 nanometers for most efficient decontamination
Blower	Built-in centrifugal blower, speed adjustable
Front Window	Acrylic window; Manual; reversal design;
Power Supply	AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Consumption	400W		500W
Material	Exterior Cold-rolled steel with antibacterial powder coating.	Side Window Acrylic Window	Work Table Chemical resistant phenolic resin
Chemical Filter	2 pcs		4 pcs
Stand Accessories	Fluorescent Lamp, Base cabinet Total load of 2 waterproof sockets: 500W
Optional Accessory	Water tap, Gas tap, Water sink, UV Lamp, Electric height ,Adjustable base stand, HEPA Filter
Gross Weight	290 Kg	310Kg	380Kg	410Kg
Package Size (WDH)	114010402350mm	135010402350mm	165011102350mm	195011102350mm

Product Brochure Link here
