Jindal Fume Hood is used to protect lab environment and operator during general chemical applications .It actively protects operators from inhaling toxic vapours and dramatically reduces the risk of fire and explosion. By installing proper filters, it can also protect the environment.
|
Model No.
|
SMI-160D-1000
|
SMI-160D-1200
|
SMI-160D-1500
|
SMI-160D-1800
|
||||
|---|---|---|---|---|---|---|---|---|
|
External Size(WXDXH)mm
|
1000*800*2515mm
|
1200*800*2515mm
|
1500*800*2515mm
|
1800*800*2515mm
|
||||
|
Internal Size(W*D*H)
|
790*600*870mm
|
990*600*870mm
|
1290*600*870mm
|
1590*600*870mm
|
||||
|
Work Surface Height
|
900mm
|
|||||||
|
Max. Opening
|
750mm
|
|||||||
|
Air Velocity
|
0.3~0.8m/s
|
|||||||
|
System Exhaust Volume
|
570 m3/h
|
710 m3/h
|
930 m3/h
|
1140 m3/h
|
||||
|
Noise
|
≤68dB
|
|||||||
|
Exhaust Duct
|
PVC, Standard length: 4 meters
|
|||||||
|
|
φ300mm
|
16W*2
|
16W*3
|
|||||
|
Pipe Strap
|
2 pcs
|
|||||||
|
LED Lamp
|
8W *1
|
12W *1
|
16W *1
|
16W *1
|
||||
|
Blower
|
Built-in PP centrifugal blower
|
|||||||
|
Front Window
|
Manual, 5mm toughened glass, height adjustable
|
|||||||
|
Power Supply
|
220V±10%, 60/50Hz;110V±10%, 60Hz
|
|||||||
|
Consumption
|
400W
|
400W
|
500W
|
500W
|
||||
|
Material
|
Exterior 1.0mm cold-rolled steel with bacteria powder coating.
|
Interior High grade melamine board with good acid and alkali resistance function
|
Work table Chemical resistant phenolic resin
|
|||||
|
Standard Accessory
|

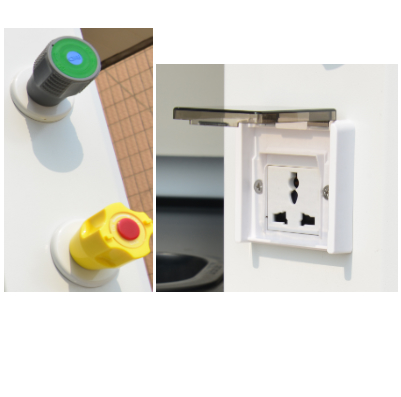

Water tap, Water sink, LED lamp, Total load of 2 waterproof sockets: 500W, Built-in PP blower, 4 meters PVC exhaust duct, Pipe strap*2
|
|||||||
|
Optional Accessory
|
Gas tap
|
|||||||
|
Weight(Net/Gross)
|
250Kg/270Kg
|
275Kg/300Kg
|
300Kg/330Kg
|
330Kg/365Kg
|
||||
|
Package Size (W*D*H)
|
||||||||
|
Main Body
|
1140*940*1850mm
|
1340*940*1850mm
|
1640*940*1850mm
|
1940*940*1850mm
|
||||
|
Base Cabinet
|
1140*940*1050mm
|
1340*940*1050mm
|
1640*940*1050mm
|
1940*940*1050mm
|
||||
