Air Shower SMI-4012AS

CLICK TO SCAN

Description

A JINDAL Air Shower is a necessary pass through for a person entering a clean room in order to minimize the amount of particulate contaminant, and achieve workplace strict clean purification standards. Personnel move through the air shower while the contaminant particles are blown off by the clean high speed air.

  • Pre-filter
  • High efficiency HEPA filter without clapboard
  • Photoelectric sensor control
  • LCD control panel
  • Stainless steel rotatable nozzle
  • Electronic interlocks
  • Specially equipped blower

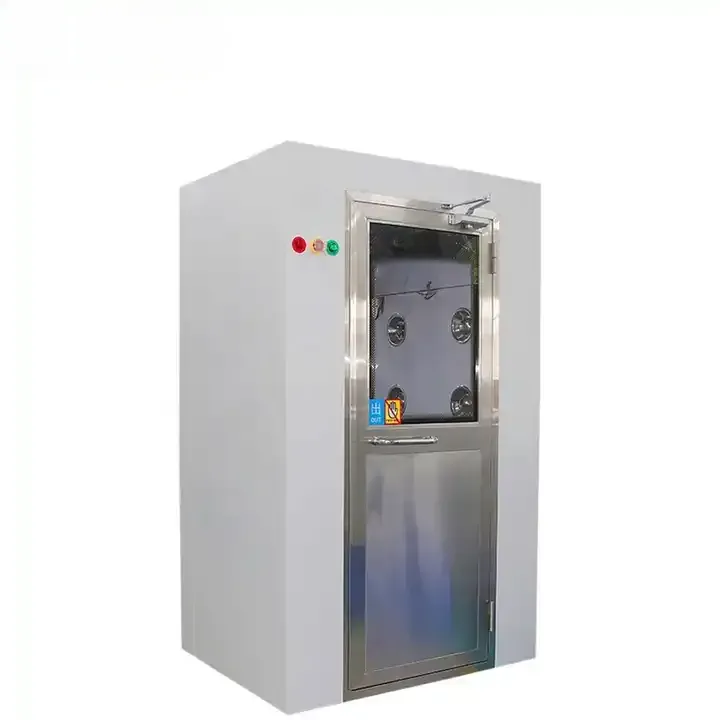

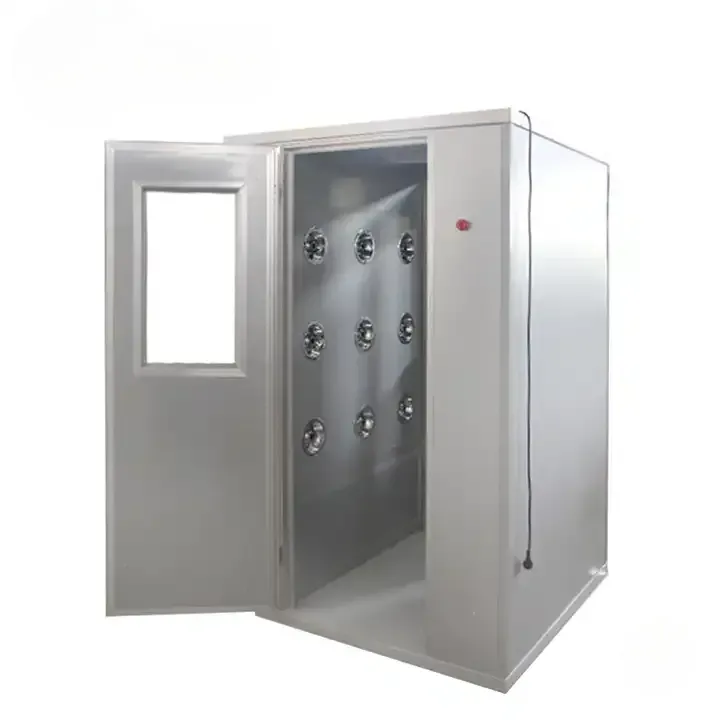

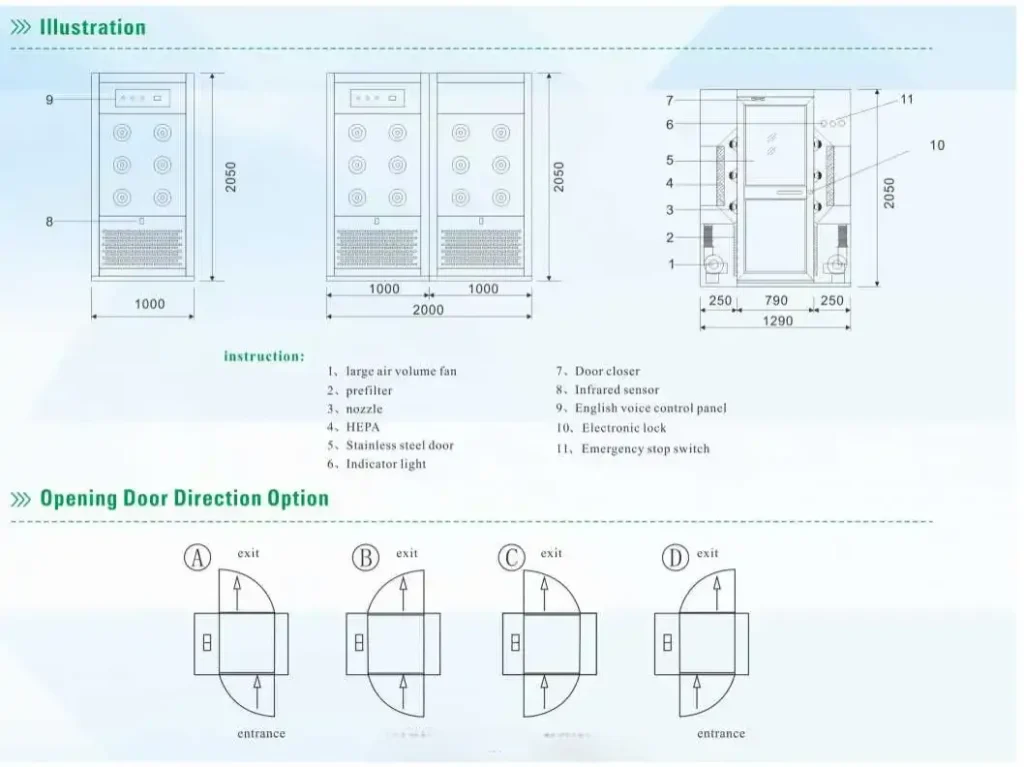

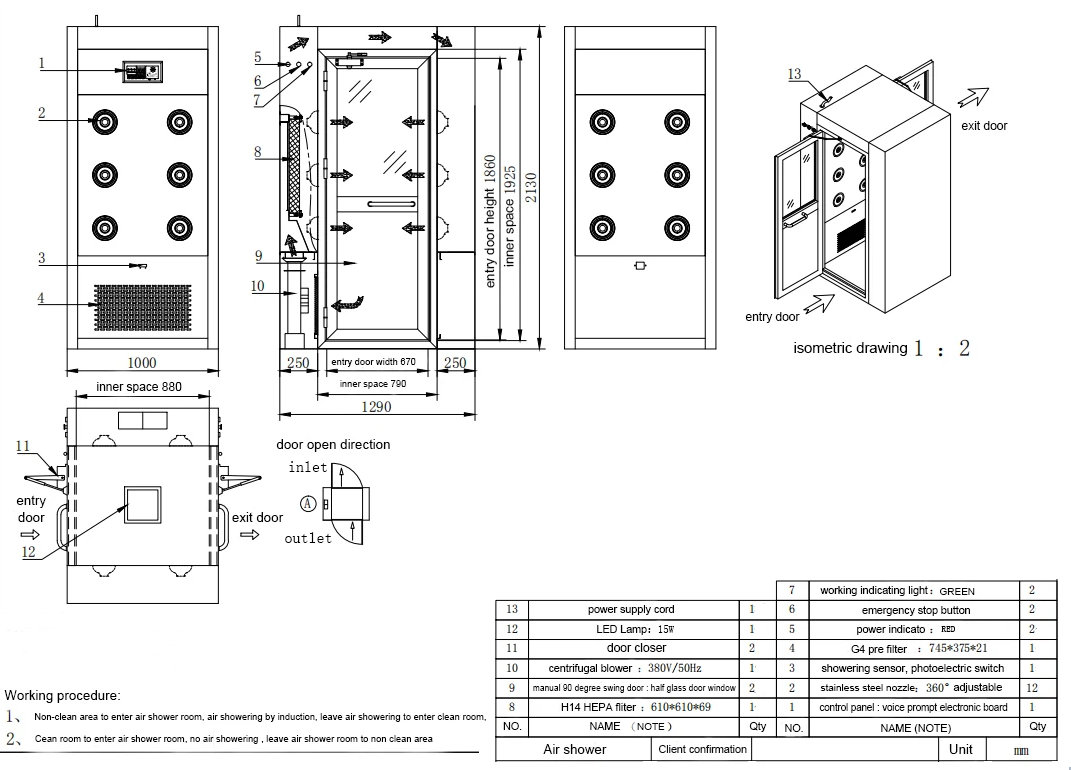

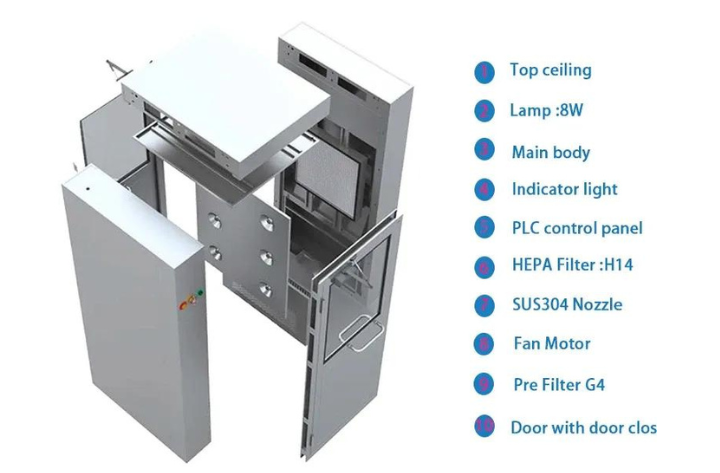

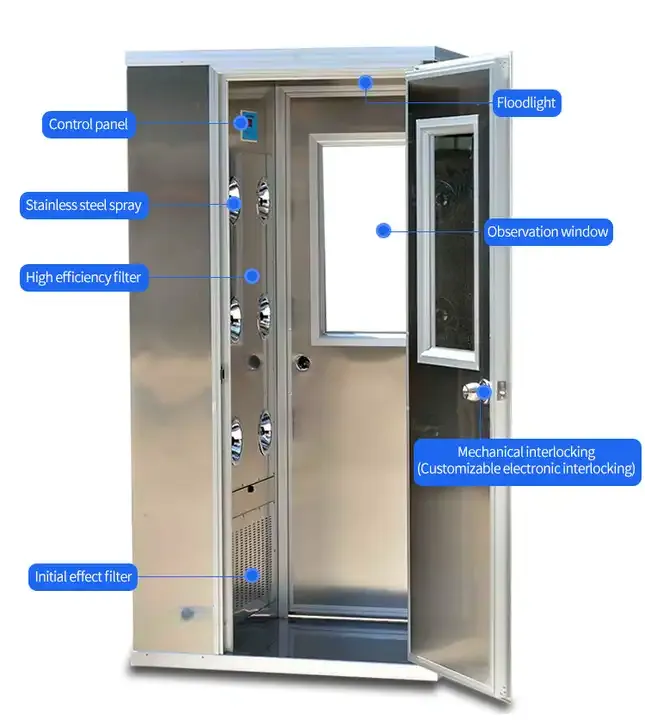

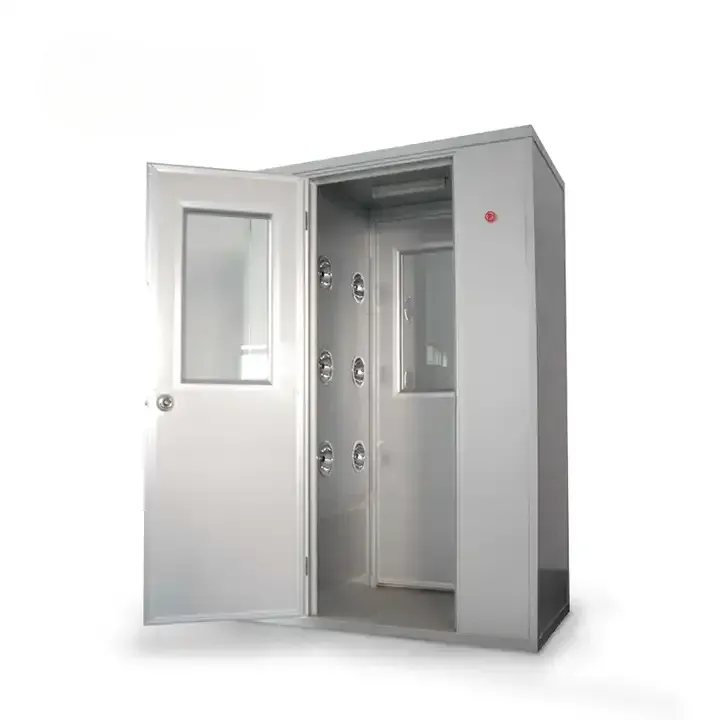

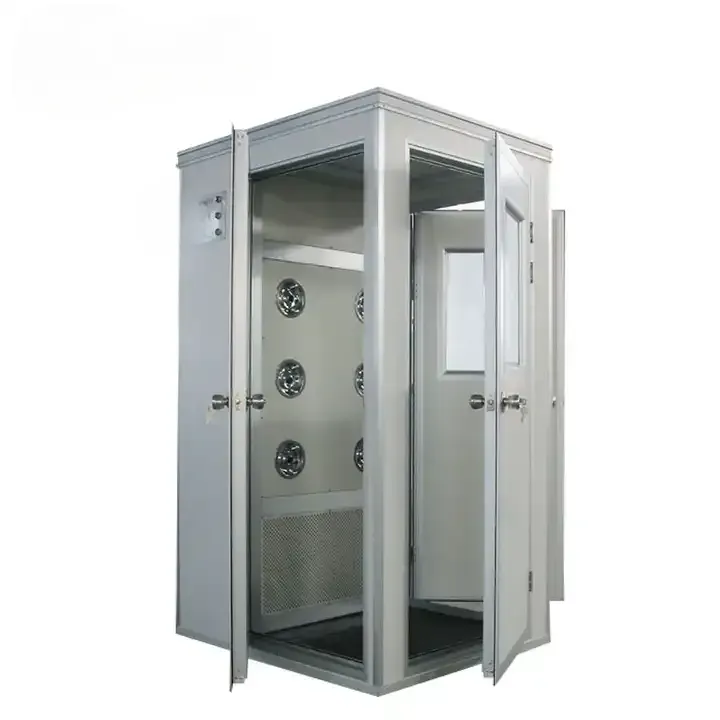

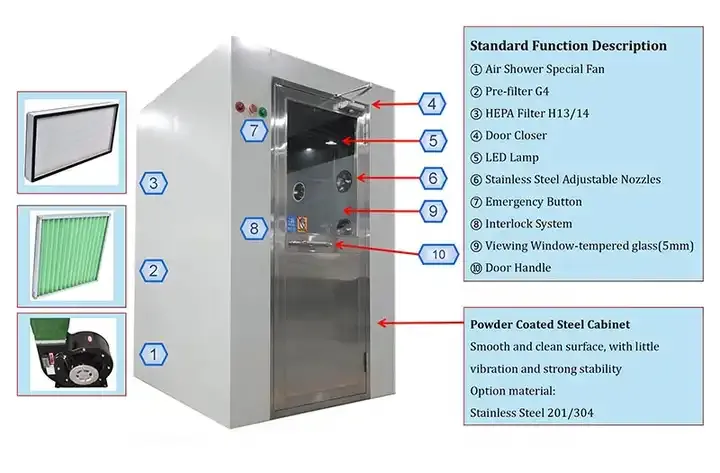

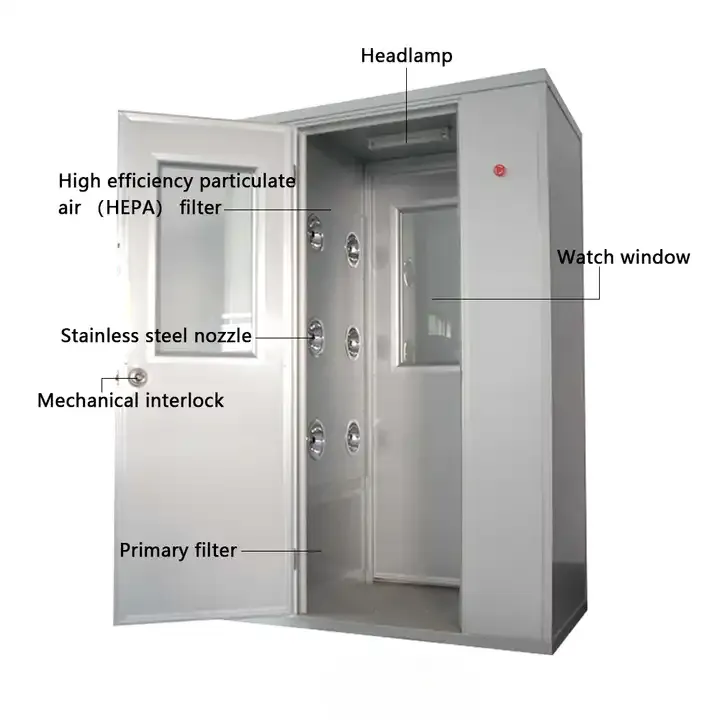

Detailed Images

Technical Data

Product Type

Single blow/ 1 person

Double blow/ 1person

Double blow/ 2 person

Air Shower Tunnel

Model

SMI-4012AS-1P

SMI-4012AS-1P2

SMI-4012AS-2P3

 SMI-4012AS-5 AST

Outside Dimension

1290 X 1000 X 2050

1290 X 1000 X 2050

1290 X 2000 X 2050

1590 X 5000 X 2050

Air Shower Area

790 X 860 X 1910 mm

790 X 860 X 1910 mm

790 X 1860 X 1910 mm

790 X 4860 X 1910 mm

Capacity:

1-2 People

1-2 People

2-4 People

channel type

Number Of Nozzle

6 Nos.

12 Nos.

24 Nos.

72 Nos.

Wind speed

≥25m/s

≥25m/s

≥25m/s

≥25m/s

Noise level

<62

<62

<62

<62

Prefilter Size

Efficiency

775 X 380 X 17 X 1 No.

775 X 380 X 17 X 2 Nos.

775 X 380 X 17 X 4 Nos.

775 X 380 X 17 X 8 Nos.

G4

G4

G4

G4

HEPA Filter

Efficiency

610 X 610 X 120 X 1 Nos.

610 X 610 X 120 X 2 Nos.

610 X 610 X 120 X 4 Nos.

610 X 610 X 120 X 8 Nos.

99.99%@0.3um

99.99%@0.3um

99.99%@0.3um

99.99%@0.3um

Fan power

750W X 1 Nos.

750W X 2 Nos.

750W X 4 Nos.

750W X 8 Nos.

Fluorescent lamp power

20W X 1 Nos.

20W X 1 Nos.

20W X 2 Nos.

40W X 4 Nos.

Power

415V/50Hz

415V/50Hz

415V/50Hz

415V/50Hz
