Air Booth SMI-CL-AB-01

Home ≫Clean Air >Clean Booth >Air Booth SMI-CL-AB-01

Air Booth SMI-CL-AB-01

CLICK TO SCAN

Description

It is also known as a clean bed with Horizontal laminar flow, designed for achieving physical isolation. This is particularly useful for patients with low immunity, blood diseases, burns, respiratory diseases, and those undergoing radiation and chemotherapy.

Germfree and Partition Space

  • It adopts an ultra-thin air partition with latest technology as a variable volume air supply system
  • It adopts HEPA filters with large size and high performance
  • Filter efficiency ≥99.99% @ ≥0.3μm
  • Germfree condition and partitioned space are ensured


Safe and Reliable Support Facilities

  • Strictly designed according to international advanced safety standards for electric equipment
  • Multiple safety precautions

Ultra-quiet Design and Humanizing Combination

  • Flexible horizontal air supply ensures comfort
  • Low noise lower than 38 dB while running
  • Affiliated support and transparent and healthy curtains make it easy to use and change

 Multiple Usages

  • A Slight positive or negative pressure clean type in the isolated area is optional to meet special requirements for isolating various disease treatments
Previous
Next
Enquire Now

Technical Data

Model

SMI-CL-AB-01A

SMI-CL-AB-02B

SMI-CL-AB-03C

SNI-CL-AB-03D

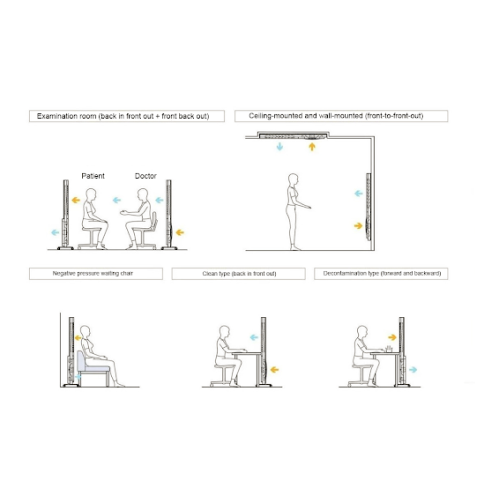

Airflow Type

Air inlet from back and outlet from front (clean type)

Air inlet and outlet from front (clean type)

Air inlet from front and outlet from back (remove dirty type)

Air inlet and outlet from front (remove dirty type)

Cleanliness

ISO 5 (Class 100)

Filter Efficiency

≥99.99%(@≥0.3μm)

Air Velocity

0.11 m/s

0.26 m/s

0.11 m/s

0.26 m/s

0.13 m/s

0.28 m/s

0.13 m/s

0.28 m/s

Noise

≤38 dB(A)

≤48 dB(A)

≤38 dB(A)

≤48 dB(A)

≤38 dB(A)

≤48 dB(A)

≤38 dB(A)

≤48 dB(A)

Power Supply

AC220V, 1Φ, 50Hz

Input Power

70 VA

Colony Count

≤1 CFU/(Φ90mm*0.5h)

Weight

55 Kg

Overall Dimension

(LXWXH)

890 X 160 X 1500 mm

(35.0” X 6.3” X 59.1”)

890 X 130 X 1500 mm

(35.0” X 5.12” X 59.1”)

890 X 160 X 1500 mm

(35.0” X 6.3” X 59.1”)

890 X 130 X 1500 mm

(35.0” X 5.12” X 59.1”)

Overall Dimension with curtain (L X W X H)

2400 X 1150 X 2000 mm

(94.5” X 45.3” X 78.7”)

Work Dimension with curtain (L X W X H)

2150 X 1100 X 1800 mm

(84.6” X 43.3” X 70.9”)
