Table Top Multiple Pipe Centrifuge SMI-154-5A-TD5A

Home ≫Centrifuges> Table Top Multiple Pipe Centrifuge SMI-154-5A-TD5A

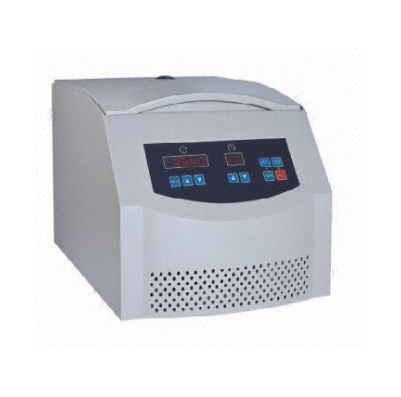

Table Top Multiple Pipe Centrifuge SMI-154-5A-TD5A

CLICK TO SCAN

Description

JINDAL Table Top Multiple Pipe Centrifuge is designed to meet the requirements of the laboratory.   This Centrifuge finds its extensive use in the laboratory of biology, medicine, chemistry and physics, which is the ideal instrument for separating the blood, plasma, and urine in the hospital.

Features

  • Brushless DC motor, no carbon dust pollution, unnecessary to maintain, quick in speed up and down
  • Automatically electric lid lock, super speed, over temperature protection and imbalance protection. The centrifuge body is made of high quality steel, safe and reliable
  • Rotor is connected to spindle by specialized taper sleeve, loading simple and quick, no direction, safe and reliable
  • Microprocessor control, digital display and with LCD display which indicate the speed, time, RCF in operation, speed raising and reducing quick, operate simply
  • 10 kinds of program stored in the memory, 10 kinds of accelerating and decelerating speed for your choice
  • 3 tiers protection steel cover and get the ideal centrifugation result



Enquire Now

Technical Data:

Product
Table Top Multiple Pipe Centrifuge
Model No
SMI-154-5A-TD5A
Max Speed
5000 rpm
Max RCF
4730*g
Time Range
0~99 min.
Speed Accuracy
±10r/min
Max Capacity
4*300mL
Noise
≦45dBA
Dimension(DxWxH)mm
621*450*360mm
Net weight
52Kg
Packaged Weight
75Kg
Packaged Dimension
780*525*500mm
Power
AC110/220V, 50-60Hz,5A
Minimum Order
1 unit
Package
Wooden Box

Matched Rotors: (Rotors to be ordered separately from the machine)

Order No
Rotors No
Max Speed r/min
Volume(mL)
Max RCF(g）
No.31377
Swing Rotor
5000
Available for the next tube holder and tube rack
4*50mL
4*50mL
4*100mL
4*100mL
No.31378
Swing Rotor
4000
Available for the next tube holder and tube rack
8*100mL
3020
8*50mL, 16*15mL, 24*15mL, 32*15mL
3200
48*7mL Vacuum Tube
2880
32*10mL, 24*10mL
2790
16*10mL
2920
No.31392
Swing Rotor
4000
4*250mL
2920
No.31389
Swing Rotor
4000
88*5mL Vacuum Tube ,124*5mL Vacuum Tube
2840
No.31390
Swing Rotor
4000
88*7mL Vacuum Tube, 124*7mL Vacuum Tube
3140
No.31491
Plate Bucket
4000
2*4*96 Holes
2490
No.31376
Plate Bucket
4000
2*3*48 Holes
2300
No.30627
Angle Rotor
5000
30*15mL
3830
No.30638
Angle Rotor
5000
6*15mL
2540
No.30607
Angle Rotor
5000
12*15mL
3080
No.30639
Angle Rotor
5000
24*15mL
3500
No.30640
Angle Rotor
5000
4*50mL
2520
No.30611
Angle Rotor
5000
6*50mL
2850
No.30641
Angle Rotor
5000
12*50mL
3860
No.30642
Angle Rotor
4000
24*50mL
2970
No.30613
Angle Rotor
5000
4*100mL
2630
No.30614
Angle Rotor
5000
6*100mL
3130
No.30643
Angle Rotor
4000
12*100mL
2970
