Table Top Low Speed Large Capacity Centrifuge SMI-154-5B-TD5B

Home ≫Centrifuges>Table Top Low Speed Large Capacity Centrifuge SMI-154-5B-TD5B

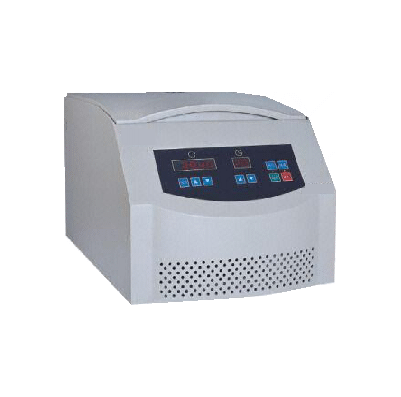

Table Top Low Speed Large Capacity Centrifuge SMI-154-5B-TD5B

CLICK TO SCAN

Description

JINDAL Table top low speed large capacity centrifuge is designed to meet the requirements of the laboratory.  This Centrifuge finds its extensive use in the field of biochemistry, biological products, pharmaceutical factory and laboratory.

Features

  • Large capacity could contain 4 blood bag of 250mL or 4 bottles of 500mL
  • Microprocessor control, digital display which indicator the speed, time, RCF in operation, speed raising and reducing quick, operate simply. Running parameters can be edited
  • Brushless DC motor, no carbon dust pollution, unnecessary to maintain, quick in speed up and down
  • Automatically electric lid lock, super speed, over temperature protection and imbalance protection. The centrifuge body is made of high quality steel, safe and reliable
  • Rotor is connected to spindle by specialized taper sleeve, loading simple and quick, safe and reliable
  • There are several kinds of rotors for your choice; adapters can be designed by experimental requirements
  • 3 tiers protection steel cover and get the ideal centrifugation result
Enquire Now

Technical Data:

Product
Table Top Low Speed Large Capacity Centrifuge
Model No
SMI-154-5B-TD5B
Max Speed
5000r/min
Max RCF
3860*g
Capacity
4*500mL
Noise
≦58dBA
Timer
0~99 min
Speed accuracy
±50r/min
Packaged Dimension
875mm W x 755mm D x 500mm H
Packaged Weight
87Kg
Power
AC110/220V, 50-60Hz,10A
Dimension
685mm W x 500mm D x 405mm H
Rotor identification
Automatic identification
Weight
67KG

Matched Rotors: (Rotors to be ordered separately from the machine)

Order No
Rotor Type
Max Speed (r/min)
Max Capacity (mL)
Max RCF (*g)
31495
Swing Rotor Round Cup
4000
2*500mL
3380
31496
Swing Rotor Round Cup
4000
4*500mL
3380
Swing Rotor Elliptic Cup
4000
4*500mL
3380
31392
Swing Rotor Round Cup
4000
4*250mL
2920
31389
Swing Rotor
4000
88*5mL, 124*5mL
2840
31390
Swing Rotor
4000
88*7mL , 124*7mL
3140
31491
Plate Bucket
4000
2*4*96 Holes
2490
31494
Plate Bucket
4000
4*4*96 Holes
2840
31376
Plate Bucket
4000
2*3*48 Holes
2300
31479
Swing Rotor Cubic Cup
4000
4*500mL
3310
31493
Swing Rotor
4000
Milk Fat
3830
30627
Fixed Rotor
5000
30*15mL
3830
30638
Fixed Rotor
5000
6*15mL
2540
30607
Fixed Rotor
5000
12*15mL
3080
30639
Fixed Rotor
5000
24*15mL
3500
30640
Fixed Rotor
5000
4*50mL
2520
30611
Fixed Rotor
5000
6*50mL
2850
30641
Fixed Rotor
5000
12*50mL
3860
30642
Fixed Rotor
4000
24*50mL
2970
30613
Fixed Rotor
5000
4*100mL
2630
30614
Fixed Rotor
5000
6*100mL
3130
30643
Fixed Rotor
4000
12*100mL
2970
