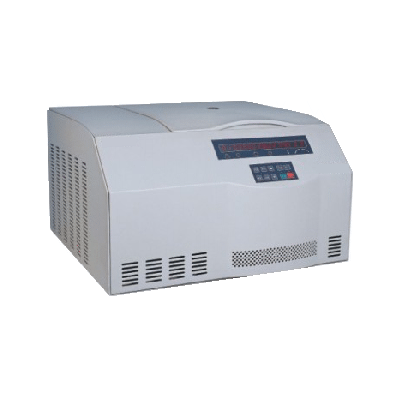

Table Top High Speed Refrigerated Centrifuge SMI-154-18-TGL18
Home ≫Centrifuges> Table Top High Speed Refrigerated Centrifuge SMI-154-18-TGL18
Description
JINDAL Table Top High speed Refrigerated is designed to meet the requirements of the laboratory. This Centrifuge finds its extensive use in the field of medicine, life science, agriculture science, institute and so on, used in the area of protein precipitation, RNA extraction and clinical sample processing.
Features
- Dual core processor made it high speed and low speed compatible, larger capacity and small capacity compatible, which is new researched product by the actual requirements of international biological research
- Imported compressors fluorine free, double cycle cooling, cold and hot alternating easily, free environment pollution and precise in temperature control
- Brushless frequency motor in great torque, no carbon dust pollution, unnecessary to maintain, quick in speed up and down
- Microprocessor control, digital display speed, temperature and time. Touch by Panel. Running parameters can be edited and changed to be RCF
- 10 kinds of program stored in the memory, 10 kinds of accelerating and decelerating speed for your choice
- Automatically electric lid lock, super speed, over temperature protection and imbalance protection. The centrifuge body is made of high quality steel, safe and reliable
- Rotor is connected to spindle by specialized taper sleeve, loading simple and quick, no direction
- 3 tiers protection steel cover, safe and reliable
Technical Data:
Product
|
Table Top High Speed Refrigerated Centrifuge
|
Model No
|
SMI-154-18-TGL18
|
---|---|---|---|
Max Speed
|
21000r/min
|
Max RCF
|
29670*g
|
Power
|
AC110/220V, 50-60Hz,15A
|
Package
|
Wooden Box
|
Time Range
|
1~99H59min
|
Speed Accuracy
|
±50r/min
|
Capacity
|
4*500mL
|
Noise
|
≦58dBA
|
Weight
|
125Kg
|
Dimension
|
690*715*430mm
|
Packaged Weight
|
150Kg
|
Packaged Dimension
|
875*785*560mm
|
Temperature Range
|
-20~40℃
|
Temperature Accuracy
|
1℃
|
Matched Rotors: (Rotors to be ordered separately from the machine)
Order No
|
Rotor
|
Max Speed (r/min)
|
Max Capacity (mL)
|
Max RCF (*g)
|
---|---|---|---|---|
30801
|
Angle Rotor
|
20000
|
12*1.5/2mL
|
25430
|
30802
|
Angle Rotor
|
15000
|
40*0.5mL
|
22920
|
30803
|
Angle Rotor
|
18000
|
24*1.5/2mL
|
29670
|
30804
|
Angle Rotor
|
13500
|
30*1.5/2mL
|
19340
|
30805
|
Angle Rotor
|
16000
|
16*5mL
|
22020
|
30806
|
Angle Rotor
|
16000
|
12*7mL
|
21380
|
30807
|
Angle Rotor
|
10000
|
12*15mL
|
11840
|
30808
|
Angle Rotor
|
15000
|
12*10mL
|
22680
|
30809
|
Angle Rotor
|
15000
|
8*20mL
|
22680
|
30810
|
Angle Rotor
|
14000
|
6*30mL
|
19060
|
30811
|
Angle Rotor
|
12000
|
6*50mL
|
16050
|
30812
|
Angle Rotor
|
12000
|
6*70mL
|
15570
|
30813
|
Angle Rotor
|
12000
|
4*100mL
|
14850
|
30814
|
Angle Rotor
|
10000
|
6*100mL
|
11380
|
30815
|
Angle Rotor
|
16000
|
6*10mL
|
21500
|
30816
|
Angle Rotor
|
18000
|
30*0.5mL
|
26660
|
30627
|
Angle Rotor
|
5000
|
30*15mL
|
3830
|
30642
|
Angle Rotor
|
4000
|
24*50mL
|
2970
|
30643
|
Angle Rotor
|
4000
|
12*100mL
|
2970
|
30844
|
Angle Rotor
|
13000
|
48*1.5/2mL
|
17930
|
30480
|
Swing Rotor
|
15000
|
4*5mL
|
19920
|
30435
|
Vertical Rotor
|
16000
|
16*5mL
|
16540
|
30676
|
Plate Bucket
|
4000
|
2*3*48 Holes
|
2300
|
31377
|
Swing Rotor
|
5000
|
4*50mL, 4*100mL
|
4730
|
31378
|
Swing Rotor
|
4000
|
8*100mL
|
3020
|
|
8*50mL
|
3200
|
||
|
16*15mL
|
3200
|
||
|
24*15mL
|
3200
|
||
|
32*15mL
|
3200
|
||
|
48*7mL
|
2880
|
||
|
32*10mL
|
2790
|
||
|
24*10mL
|
2790
|
||
|
|
|
16*10mL
|
2790
|
30695
|
Swing Rotor
|
4000
|
2*500mL
|
3380
|
30696
|
Swing Rotor Round Cup, Swing Rotor Elliptic Cup
|
4000
|
4*500mL, 4*500mL
|
3380
|
30592
|
Swing Rotor
|
4000
|
4*250mL
|
2920
|
30679
|
Swing Rotor
|
4000
|
4*500
|
3310
|
30589
|
Swing Rotor
|
4000
|
88*5mL, 124*5mL
|
2840
|
30590
|
Swing Rotor
|
4000
|
88*7mL, 124*7mL
|
3140
|
30691
|
Plate Bucket
|
4000
|
2*4*96 Holes
|
2490
|
30694
|
Plate Bucket
|
4000
|
4*4*96 Holes
|
2840
|
Product Brochure
Product Brochure Link here
