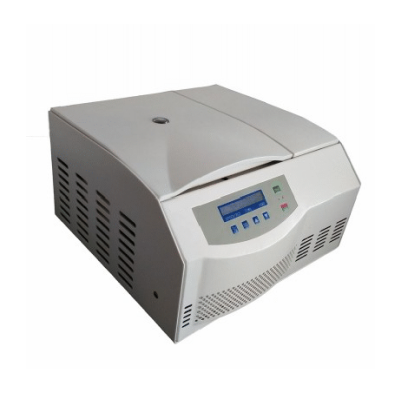

Table Top High Speed Refrigerated Centrifuge SMI-154-16-TGL16

Home ≫Centrifuges> Table Top High Speed Refrigerated Centrifuge SMI-154-16-TGL16

Table Top High Speed Refrigerated Centrifuge SMI-154-16-TGL16

CLICK TO SCAN

Description

JINDAL Table top High speed Refrigerated Centrifuge is designed to meet the requirements of the laboratory.This Centrifuge finds its extensive use in the processing of bacteria, protein precipitation, RNA extraction and clinical samples for R&D institutions of medicine, life science, bio-pharmaceutical, agriculture science and environmental.

Features

  • Brushless motor with simpler construction, more reliable performance, longer life and quietly running
  • Imported compressors fluorine free, double cycle cooling, cold and hot alternating easily, free environment pollution and precise in temperature control
  • Microprocessor control, digital indicate speed, temperature and time etc, touch by panel, running parameters can be edited and changed to be RCF
  • Automatically electric lid lock, super speed, over temperature protection and imbalance protection. The centrifuge body is made of high quality steel, safe and reliable
  • Rotor is connected to spindle by specialized taper sleeve, loading simple and quick, no direction, safe and reliable
  • There are several kinds of Rotors for your choice, adapters can be designed by experimental requirements
  • 3 tiers protection steel cover, safe and reliable



Enquire Now

Technical Data:

Product
Table Top High Speed Refrigerated Centrifuge
Model No
SMI-154-16-TGL16
Max Speed
16000 rpm
Max RCF
20600xg
Max volume
6x100mL
Noise
≤58dBA
Timer
1～9h59min
Net Weight
82Kg
Dimension(HxDxW)mm
608×570×380mm
Power Supply
AC 220V 50Hz 10A
Speed Accuracy
±20 rpm
Temperature Accuracy
±1℃
Temperature Range
-20~40℃
Package
Wooden Box

Matched Rotors: (Rotors to be ordered separately from the machine)

Order No
Rotor
Max Speed (r/min)
Max Capacity (mL)
Max RCF (*g)
TGL16
High Speed Centrifuge
16000
6x100mL
20600
30401
Angle Rotor
16000
12*1.5/2mL
16270
30402
Angle Rotor
14000
24*1.5/2mL
19970
30403
Angle Rotor
15000
24*1.5/2mL
20600
30404
Angle Rotor
13500
30*1.5/2mL
19340
30405
Angle Rotor
15000
16x5mL
19350
30406
Angle Rotor
14000
12x7mL
16370
30407
Angle Rotor
10000
12x15mL
11840
30408
Angle Rotor
12000
12x10mL
14510
30409
Angle Rotor
12000
8x20mL
14510
