Table Top High Speed Centrifuge SMI-154-20-TG20

Home ≫Centrifuges> Table Top High Speed Centrifuge SMI-154-20-TG20

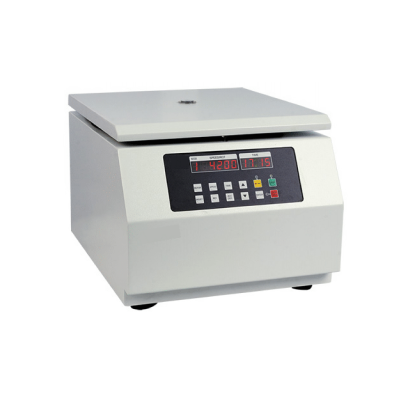

Table Top High Speed Centrifuge SMI-154-20-TG20

CLICK TO SCAN

Description

JINDAL Table top high speed centrifuge is designed to meet the requirements of the laboratory.  This Centrifuge finds its extensive use in the field of animal and plant molecular biology, which is the ideal instrument for separating the chemical substances in the cell and purifying the microorganisms, viruses, bacteria and sub cellular etc.

Features

  • Brushless DC motor, no carbon dust pollution, unnecessary to maintain, quick in speed up and down
  • Automatically electric lid lock, super speed, over temperature protection and imbalance protection. The centrifuge body is made of high quality steel, safe and reliable
  • Rotor is connected to spindle by specialized taper sleeve, loading simple and quick, no direction, safe and reliable
  • Microprocessor control speed and time, digital display and LCD, all running parameters can be shown by it
  • 10 kinds of program stored in the memory, 10 kinds of accelerating and decelerating speed for your choice
  • 3 tiers protection steel cover and get the ideal centrifugation result



Enquire Now

Technical Data:

Product
Table Top High speed Centrifuge
Model No
SMI-154-20-TG20
Max Speed
20000r/min
Max RCF
26660*g
Weight
42Kg
Dimension
515*370*320mm
Time Range
1~99 min
Speed accuracy
±50r/min
Capacity
6*100mL
Noise
≦65dBA
Packaged Weight
48Kg
Packaged dimension
730*430*425mm
Power
AC110/220V, 50-60Hz,10A
Motor
Brushless

Matched Rotors: (Rotors to be ordered separately from the machine)

Order No
Rotor
Max Speed (r/min)
Max Capacity (mL)
Max RCF (*g)
30801
Angle Rotor
20000
12*1.5/2mL
25430
30802
Angle Rotor
15000
40*0.5mL
22920
30803
Angle Rotor
17000
24*1.5/2mL
26460
30804
Angle Rotor
13500
30*1.5/2mL
19340
30805
Angle Rotor
16000
16*5mL
22020
30806
Angle Rotor
16000
12*7mL
21380
30807
Angle Rotor
10000
12*15mL
11840
30808
Angle Rotor
15000
12*10mL
22680
30809
Angle Rotor
15000
8*20mL
22680
30810
Angle Rotor
14000
6*30mL
19060
30811
Angle Rotor
12000
6*50mL
16050
30812
Angle Rotor
12000
6*70mL
15570
30813
Angle Rotor
12000
4*100mL
14850
30814
Angle Rotor
10000
6*100mL
11380
30815
Angle Rotor
16000
6*10mL
21500
30816
Angle Rotor
18000
30*0.5mL
26660
30844
Angle Roto
13000
48*1.5/2mL
17930
30980
Swing Rotor
13000
4*5mL
14960
30935
Vertical Rotor
14000
16*5mL
12660
30676
Plate Bucket
4000
2*3*48 Holes
2300
