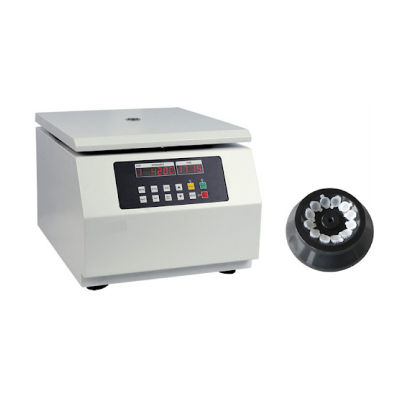

Table Top High Speed Centrifuge SMI-154-16-TG16

CLICK TO SCAN

Description

JINDAL Table Top High Speed Centrifuge is designed to meet the requirements of the laboratory.   This Centrifuge finds it’s extensive in the field of medicine, life science, agriculture science, institute and so on, used in the area of protein precipitation, RNA extraction and clinical sample processing.

Features

  • Brushless DC motor in great torque, no carbon dust pollution, unnecessary to maintain, quick in speed up and down
  • Automatically electric lid lock, super speed, over temperature protection and imbalance protection. The centrifuge body is made of high quality steel, safe and reliable
  • Rotor is connected to spindle by specialized taper sleeve, loading simple and quick, no direction, safe and reliable
  • Microprocessor control speed and time
  • This Model with the LCD display indicates all running parameters;TG16 with the digital display indicates the time, speed and RCF
  • 10 kinds of program stored in the memory, 10 kinds of accelerating and decelerating speed for your choice
  • 3 tiers protection steel cover, safe and reliable



Enquire Now

Technical Data:

Product
Table Top High Speed Centrifuge
Model No
SMI-154-16-TG16
Max Speed
16000 rpm
Max RCF
20600*g
Time Range
0~99 min.
Speed Accuracy
±50r/min
Capacity
6*100mL
Noise
≦65dBA
Weight
42Kg
Dimension
515*370*320mm
Packaged Weight
48Kg
Packaged Dimension
730*430*425mm
Power
AC110/220V, 50-60Hz,10A
Package
Carton

Matched Rotors: (Rotors to be ordered separately from the machine)

Angle Rotor
Speed(rpm）
Capacity(mL)
RCF(*g)
Fixed Rotor
16000
12*1.5/2mL
16270
Angle Rotor
14000
40*0.5mL
19970
Fixed Rotor
15000
24*1.5mL/2mL
20600
Fixed Rotor
13500
30*1.5mL/2mL
19340
Fixed Rotor
15000
16*5mL
19350
Fixed Rotor
14000
12*7mL
16370
Fixed Rotor
10000
12*15mL
11840
Fixed Rotor
12000
12*10mL
14510
Fixed Rotor
12000
8*20mL
14510
Fixed Rotor
12000
6*30mL
14000
Fixed Rotor
10000
6*50mL
11140
Fixed Rotor
10000
6*70mL
10810
Fixed Rotor
10000
4*100mL
10310
Fixed Rotor
8000
6*100mL
7280
Fixed Rotor
14000
6*10mL
16460
Fixed Rotor
15000
30*0.5mL
18510
Fixed Rotor
12000
Capillary Vessel 24 pcs
15800
Fixed Rotor
11000
48*1.5/2mL
12840
Swing Rotor
13000
4*5mL
14960
Vertical Rotor
14000
16*5mL
12660
Plate Rotor
4000
2*3*48 Holes
2300
