Table High Speed Centrifuge SMI-154T-16.5K

Home Centrifuges> Bench Top High Speed Centrifuge>Table High Speed Centrifuge SMI-154T-16.5K

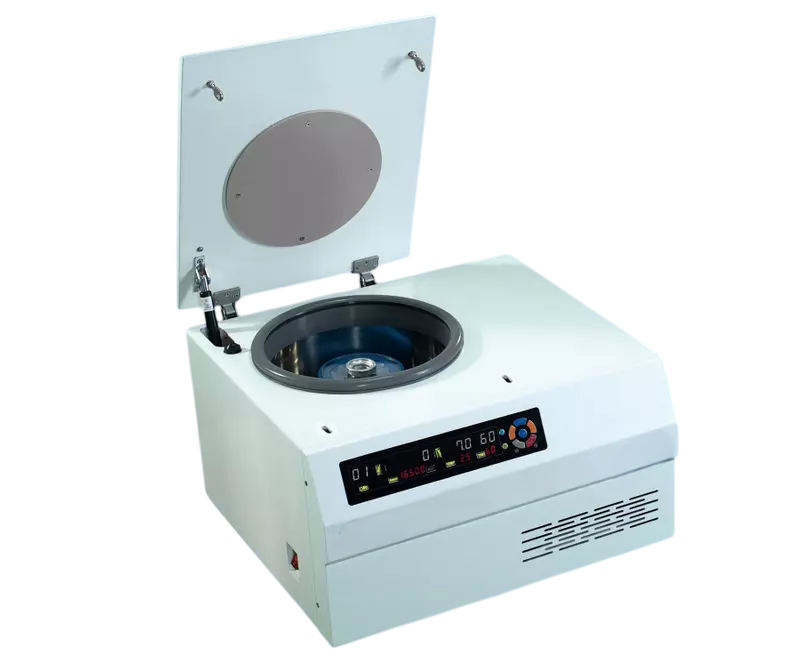

Table High Speed Centrifuge SMI-154T-16.5K

CLICK TO SCAN

Description

  • Compact design with a small footprint, ideal for saving laboratory space.

  • Durable steel construction with a stainless-steel centrifuge chamber.

  • AC variable-frequency motor drive ensures stable and quiet operation.

  • 10-level acceleration and deceleration control; free stop time on the ninth gear exceeds 540 seconds, meeting the requirements for special separation processes.

  • Multi-color LED display for intuitive, clear, and user-friendly operation.

  • Timing and RPM can be adjusted during operation, and centrifugal force can be checked without stopping the centrifuge.

  • Automatic calculation and display of RCF, RPM, and centrifugal force simultaneously.

  • Electronic lid lock for enhanced user safety.

  • Short-time precision centrifugation key for controlled

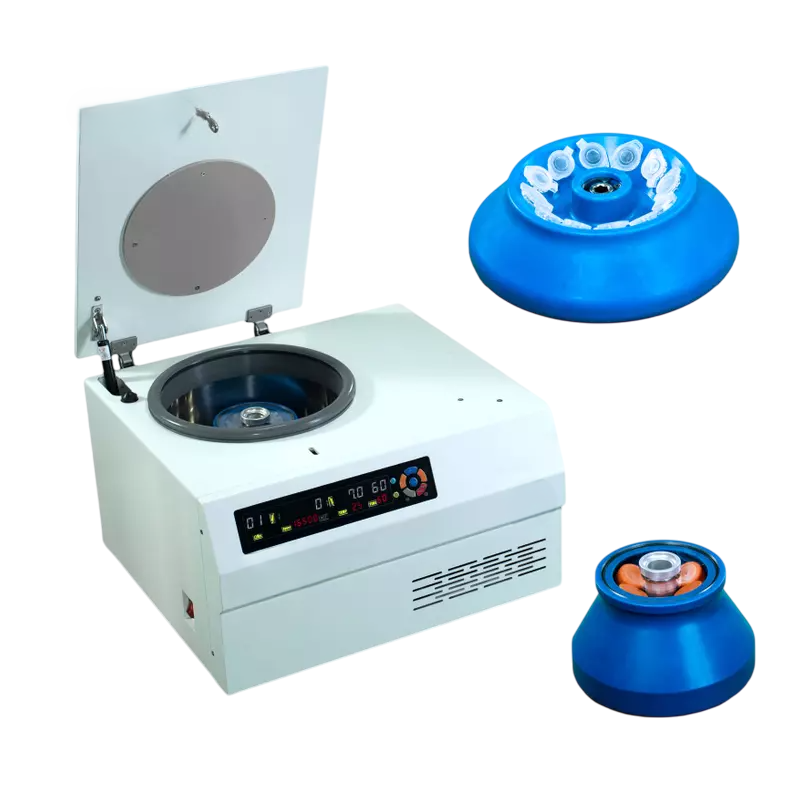

Detailed Images

Technical Data:

Model

SMI-154T-16.5K

Max. Speed

16500rpm

Max. RCF

18360 X g

Max. capacity

6×50ml)

Timer

1min to 99min

Revolutions/min

±20r/min

Noise

≤65dB(A)

Power supply

AC 220±22V 50/60Hz 10A

Power consumption

420W

Dimension (W X D X H)

400 X 300 X 330 (mm)

Outer packing Dimensions (W X D X H)

410 X 310 X 360 (mm)

Net Weight

23kg

Chamber Diameter

φ250mm

Rotor

No.

Capacity

RPM/RCF

Angle Rotor

1

12/16 X 1.5/2.2ml

16500rpm/18360 X g

2

12 X 10ml

12000rpm/14800 X g

3

6 X 50ml/ Round Bottom

11000rpm/12840 X g
