Multipurpose Desktop High Speed Centrifuge SMI-154-18C-TGL18C

Home ≫Centrifuges> Multipurpose Desktop High Speed Centrifuge SMI-154-18C-TGL18C

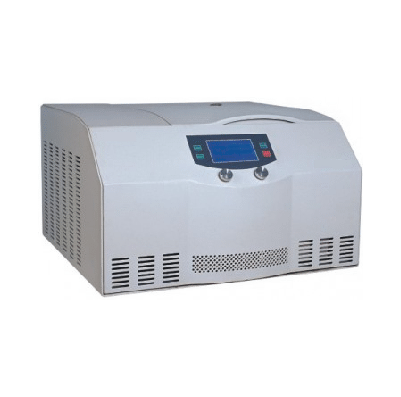

Multipurpose Desktop High Speed Centrifuge SMI-154-18C-TGL18C

CLICK TO SCAN

Description

JINDAL Multipurpose Desktop High Speed Centrifuge is designed to meet the requirements of the laboratory.This Centrifuge finds its extensive use in the field of medicine, life science, agriculture science, institute and so on, used in the area of protein precipitation, RNA extraction and clinical sample processing.

Features

  • Brushless frequency motor in great motor, free maintenance, no powder pollution, quick in speed up and down. Dual-core processor made it high speed and low speed compatible, larger capacity and small capacity compatible, which is new researched product by the actual requirements of international biological research
  • Import compressors fluorine free, double cycle cooling, cold and hot alternating easily, free environment pollution and precise in temperature control
  • LCD indicate all running parameters
  • 3 kinds of centrifugal methods: speed, RCF and W2t, which make you get the ideal centrifugal result
  • 10 kinds of program stored in the memory, 10 kinds of accelerating and decelerating speed for your choice
  • Automatically electric lid lock, super speed, over temperature protection and imbalance protection. The centrifuge body is made of high quality steel, safe and reliable
  • Rotor is connected to spindle by specialized taper sleeve, loading simple and quick, no direction, safe and reliable
  • There are several kinds of rotors for your choice, adapters can be designed by experimental requirements
  • 3 tiers protection steel cover, safe and reliable



Enquire Now

Technical Data:

Product
Multipurpose Desktop High Speed Centrifuge
Model No
SMI-154-18C-TGL18C
Max Speed
16000 rpm
Max RCF
29670*g
Power
AC110/220V,50-60Hz,15A
Rotor Identification
Automatic Identification
Time Range
1~99H59min
Speed Accuracy
50r/min
Capacity
4*500mL
Noise
≦58dBA
Weight
125Kg
Dimension
690*715*430mm
Packaged Weight
138Kg
Packaged Dimension
875*785*560mm
Temperature Range
-20~40℃
Temperature Accuracy
1℃

Matched Rotors: (Rotors to be ordered separately from the machine)

Order No
Rotor
Max Speed (r/min)
Max Capacity (mL)
Max RCF (*g)
30801
Angle Rotor
20000
12*1.5/2mL
25430
30802
Angle Rotor
15000
40*0.5mL
22920
30803
Angle Rotor
18000
24*1.5/2mL
29670
30804
Angle Rotor
13500
30*1.5/2mL
19340
30805
Angle Rotor
16000
16*5mL
22020
30806
Angle Rotor
16000
12*7mL
21380
30807
Angle Rotor
10000
12*15mL
11840
30808
Angle Rotor
15000
12*10mL
22680
30809
Angle Rotor
15000
8*20mL
22680
30810
Angle Rotor
14000
6*30mL
19060
30811
Angle Rotor
12000
6*50mL
16050
30812
Angle Rotor
12000
6*70mL
15570
30813
Angle Rotor
12000
4*100mL
14850
30814
Angle Rotor
10000
6*100mL
11380
30815
Angle Rotor
16000
6*10mL
21500
30816
Angle Rotor
18000
30*0.5mL
26660
30627
Angle Rotor
5000
30*15mL
3830
30642
Angle Rotor
4000
24*50mL
2970
30643
Angle Rotor
4000
12*100mL
2970
30844
Angle Rotor
13000
48*1.5/2mL
17930
30480
Swing Rotor
15000
4*5mL
19920
30435
Vertical Rotor
16000
16*5mL
16540
30676
Plate Bucket
4000
2*3*48 Holes
2300
31377
Swing Rotor
5000
4*50mL, 4*100mL
4730
31378
Swing Rotor
4000
8*100mL
3020
8*50mL
3200
16*15mL
3200
24*15mL
3200
32*15mL
3200
48*7mL
2880
32*10mL
2790
24*10mL
2790
16*10mL
2790
30695
Swing Rotor
4000
2*500mL
3380
30696
Swing Rotor Round Cup, Swing Rotor Elliptic Cup
4000
4*500mL, 4*500mL
3380
30592
Swing Rotor
4000
4*250mL
2920
30679
Swing Rotor
4000
4*500
3310
30589
Swing Rotor
4000
88*5mL, 124*5mL
2840
30590
Swing Rotor
4000
88*7mL, 124*7mL
3140
30691
Plate Bucket
4000
2*4*96 Holes
2490
30694
Plate Bucket
4000
4*4*96 Holes
2840
