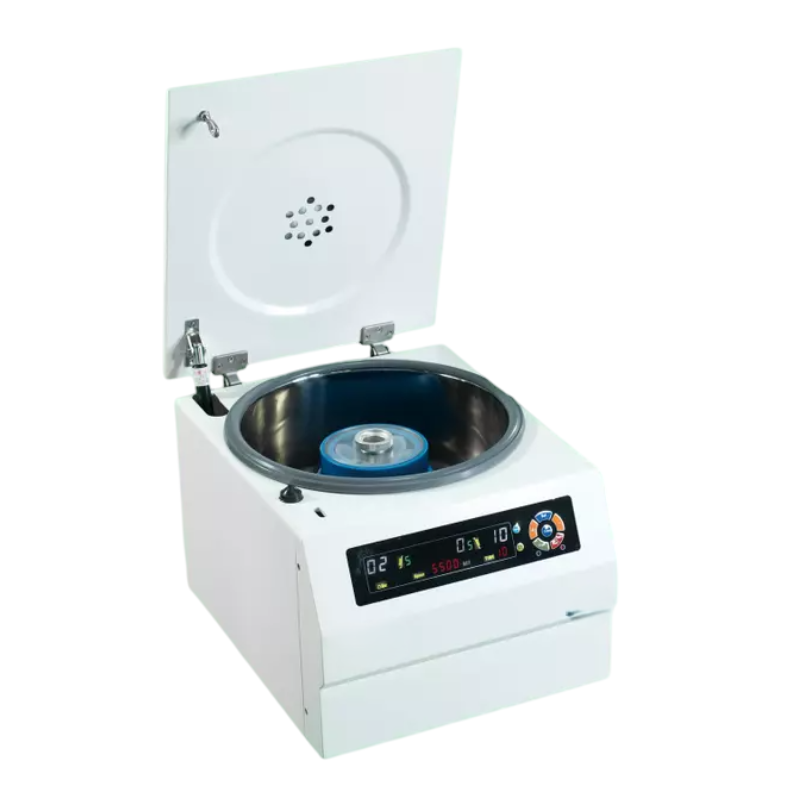

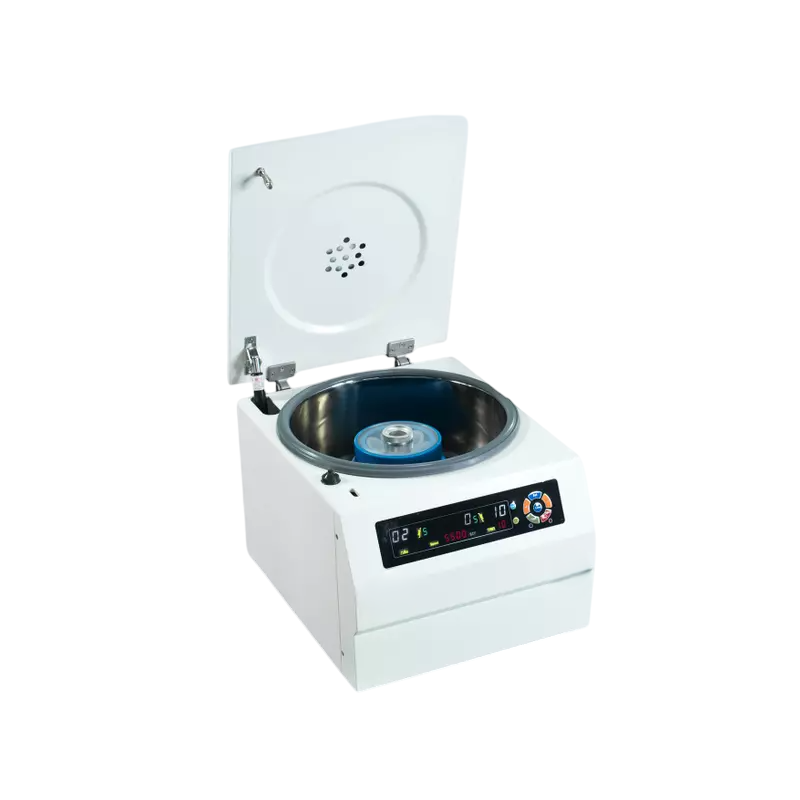

Home ≫Centrifuges> Bench Top High Speed Centrifuge>Medium Bench Top High Speed Centrifuge SMI-154M-18.5K
Moderate volume with excellent compatibility, ideal for small- and medium-scale multifunctional experiments.
Microcomputer-controlled, variable-frequency motor drive ensures smooth and quiet operation.
10-level acceleration and deceleration control; free stop time on the ninth gear exceeds 540 seconds, meeting the requirements for special separation processes.
Multi-color LED display for intuitive, clear, and user-friendly operation.
Automatic calculation and simultaneous display of RCF, RPM, and centrifugal force.
Electronic lid lock enhances user safety.
Comes with a variety of rotor capacities to suit different experimental needs.
Short-time precision centrifugation (“inching”) function allows controlled, brief spinning for delicate or special samples
Model | SMI-154M-18.5K |
Max. Speed | 18500rpm |
Max. RCF | 23900 X g |
Max. capacity | 4×100ml |
Timer | 1min to 99min |
Revolutions/min | ±20r/min |
Noise | ≤65dB(A) |
Power supply | AC 220±22V 50/60Hz 10A |
Power consumption | 500W |
Dimension (W X D X H) | 400 X 360 X 330 (mm) |
Outer packing Dimensions (W X D X H) | 545 X 430 X 395 (mm) |
Net Weight | 28kg |
Chamber Diameter | φ320mm |
Rotor | No. | Capacity | RPM/RCF |
Angle Rotor | 1 | 12/16 X 1.5/2.2ml | 18500rpm/23900×g |
2 | 18 X 0.5ml | 16000rpm/16000×g | |
3 | 10/12 X 5ml | 15000rpm/15940×g | |
4 | 24 X 1.5/2.2ml | 14000rpm/18757×g | |
5 | 12 X 10ml | 13000rpm/17370×g | |
6 | 12 X 15ml /sharp bottom | 10000rpm/9690×g | |
7 | 4 X 100ml | 10000rpm/9690×g | |
8 | 6 X 50ml/round bottom | 12000rpm/15285×g | |
9 | 6 X 50ml/sharp bottom | 11000rpm/12840×g |
Product Brochure Link here
