S.M. Scientific Instruments (P) LTD

Low Speed Refrigerated Centrifuge SMI-154-5-TDL5

Home ≫Centrifuges> Low Speed Refrigerated Centrifuge SMI-154-5-TDL5

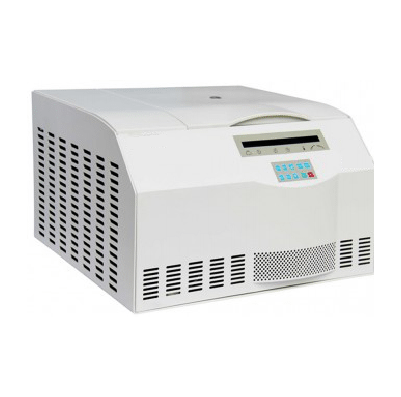

Low Speed Refrigerated Centrifuge SMI-154-5-TDL5

CLICK TO SCAN

Description

JINDAL Low Speed Refrigerated Centrifuge is designed to meet the requirements of the laboratory.

Features

  • Refrigerated centrifuge, widely used in laboratory, blood bank and hospital
  • Imbalance sensor and over temperature sensor
  • Pre-cooling design, 10 kinds of acceleration and deceleration
  • More than 20 kinds of rotors for your choice
  • Low noise, small vibration and compact design
  • Import compressors fluorine free, double cycle cooling, free environment pollution
  • The centrifuge body is made of high-quality steel, very safe
  • User-friendly large digital display provides speed, time and temperature parameters
  • Brushless motor which in great torque, no powder pollution, free maintenance, quick in speed up and down
  • It is consistent with CE security certification and ISO9001 quality certification



Technical Data:

Product
Low Speed Refrigerated Centrifuge
Model No
SMI-154-5-TDL5
Max Speed
5000 rpm
Max RCF
4730xg
Max Volume
4x250mL
Noise
≤65dBA
Timer
1~99h59min
Net Weight
125 Kg
Dimension(DxWxH)mm
483×320×265mm
Power Supply
AC 220V 50Hz 15A
Temperature Range
-20℃~40℃
Temperature Accuracy
±1℃
Speed Accuracy
±20 rpm
Package
carton box or wooden box

Matched Rotors: (Rotors to be ordered separately from the machine)

No.
Type
Max Speed (rpm)
Max Volume (mL)
Max RCF (g)
No.30569
Swing Out Rotor
4000
4x250mL (round cup)
2880
Adapter for 4*250mL Round cup
No.30568
Swing Out Rotor
4000
4x250mL (square cup)
2830
Adapter for 4* 250mL Square Cup
No.31277
Matched Buckets for the swing out rotor body
5000
4x50mL, 4x100mL
4420
4000
16x15mL, 24x15mL
2950
4000
24x10/7mL Vacuum Tube, 16x10mL Vacuum Tube
2580
No. 31377
Matched Buckets for the swing out rotor body
5000
32x10mL Vacuum Tube 32x7mL, Vacuum Tube Adapter
2580
32x5mL Vacuum Tube Adapter
2580
24x10mL Vacuum Tube
2580
24x7mL Vacuum Tube Adapter
2580
24x5mL Vacuum Tube Adapter
2580
16x10mL Vacuum Tube
2580
16x7mL Vacuum tube Adapter
2580
16x5mL Vacuum Tube Adapter
2580

Product Brochure

Product Brochure Link here
